10.1" Embedded Panel PC

Key Features:

  •  10.1 inch touch screen display
  • Touch monitor only(HDMl in, VGA, USB for touch), 2nd display
  • Android/win 10/linux OS inbulit

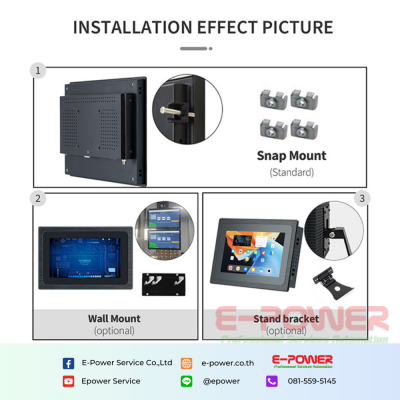

  • Can Embedded in cabinet/kiosk etc, VESA for mounting
  • Industrial grade touch screen
  • The specifications can be viewed on Rescources below

PC System

CPUIntelÂŪ CeleronÂŪ Processor N5095Intel core i3/i5 optional
Graphic GPUIntelÂŪ UHD GraphicsIntelÂŪ UHD Graphics
AudioHD AudioHD Audio
MemoryNetac-DDR4-2666MHz-SODIMM-8G8G Optional
StorageForesee mSATA-128GB32GB/64GB/256GB/512GB
NetworkWIFI-NE238H-2.4GWifi 5G/BLE 5.1 optional
Pre-installed OSWindows 10 Enterprise 2019 LTSCWindows 10 Enterprise 2019 LTSC



LCD Panel

IP RatingIP65 Front
Screen diagonal10.1inch
Active screen size217.6*136.5 mm
Aspect ratio16:10
Physical resolution1280*800
Colours displayed16.7M(EDP 30 Pins)
Brightness (cd/m2greater than or equal to 250cd
Contrast1000:1
Visual Angle H/V (°)85/85/85/85 (Typ.)(CR10)
Backlight LifetimeLED 15,000



Operation

Operating Temperature (°C)0°C-50°C
Humidity Range (RH)0%- 90%
Net weight (kg)1.77kg
Gross weight (kg)2.88kg
Housing materialSheet Metal

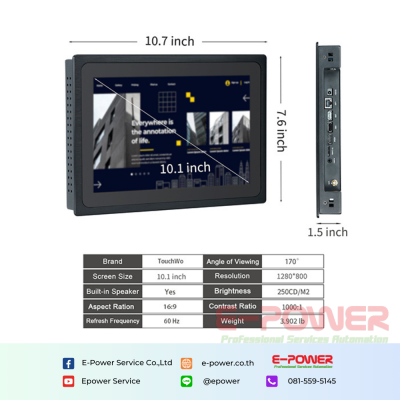

Housing (mm) L × W × H272.4*192.9*38.5
Mounting75*75



Power

Power Supply100-240V AC
Working Power (V)12
Power Consumption (W)<36
Stand-By Consumption (W)<1



Touch Panel

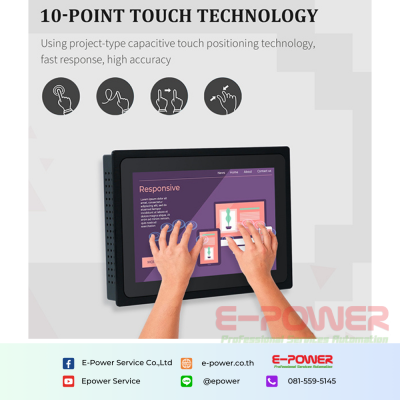

Touch TechnologyProjected Capacitive
Touch ConnectorUSB
Surface Hardness7

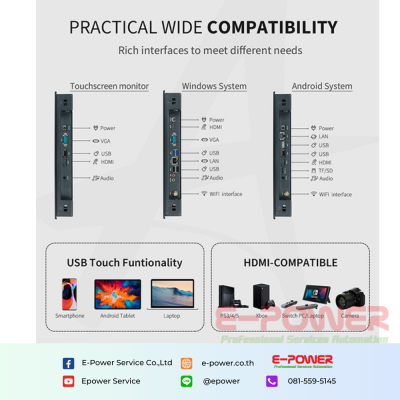

External Connectors

12v DC INx1HDMIx1
COM RS232x1USB 3.0x1
RJ45 Portsx1F_Micx1
F_OUTx1USB 2.0X3

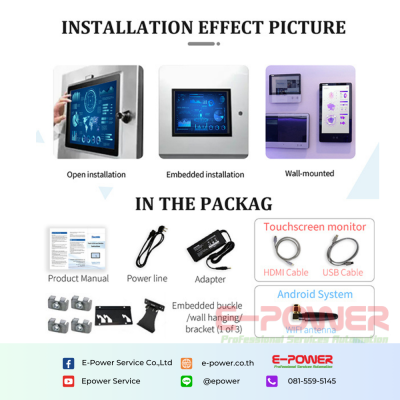

Included in the Delivery

Manuax1Power Supplyx1
Mounting SnapsX4WIFI antennaX1
