AI108 Series Intelligent Temperature Controller


āļˆāļģāļ™āļ§āļ™
āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē
Features
  • Optional input signal types.
  • PID arithmetic and with auto-tuning function.
  • Diffferent control types (please refer OT parameters).
  • RUN/STOP function can be switch

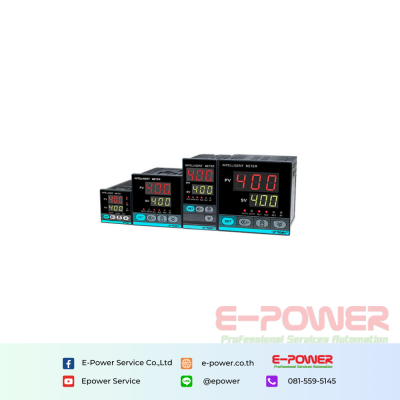

Model Illustration

AI108 Series A Version

Order Information

No.ModelControl outputAlarm
1AI108-4/6/7/9-SB10-_SSR1
2AI108-4/6/7/9-SB10-_RELAY1

NOTE: T: TC input,including K/J/E/T; R: RTD input,including PT100/CU100/CU50

Specification

Sample rate2 times per second
Relay capacityAC 250V /3A life of rated load>100,00 times
Power supplyAC/DC 100 ï―ž 240V 85-265V
Power consumption< 6VA
EnvironmentTemperature of indoor:0 ï―ž 50 no condersation; Humidityïžšïžœ85%RH,altitude<2000m
Storage environment-10 ï―ž 60,no condersation
SSR outputDC 24V pulse voltage,load<30mA
Insulation impednceinput,output,power VS meter coverïžž20MÎĐ
ESDIEC/EN61000-4-2 Contact Âą4KV /Air Âą8KV perf.Criteria B
Pulse traip anti-interferenceIEC/EN61000-4-4 Âą2KV perf.Criteria B
Surge immunityIEC/EN61000-4-5 Âą2KV perf.Criteria B
Voltage frop & Short
interruption immunity
IEC/EN61000-4-29 0% ï―ž 70% perf.Criteria B
Dielectric strengthSignal input & output & power 1500VAC 1min,below 60V low voltage DC500V,1min
Total weightAbout 400g
Shell materialThe shell and panel framePC/ABS (Flame class UL94V-0)
panel materialPET(F150/F200)
Power failure memory10years,times of writing:1 million times
Panel protection levelIP65(IEC60529)
Safety standardIEC61010-1 overvoltage category,pollution level 2,levelEnhanced insulation



Specification of measuring signal table

InputMeasure rangeResolutionAccuracyInput impedance/ Auxiliary current
TCK-50~4001°C0.5% F.S Âą 3 digits> 500 ΚÎĐ
J0~4001°C0.5% F.S Âą 3 digits> 500 ΚÎĐ
E0~4001°C0.5% F.S Âą 3 digits> 500 ΚÎĐ
T-50~4001°C0.5% F.S Âą 2°C> 500 ΚÎĐ
RTDPT100-199~4001°C0.5% F.S ¹ 3 digits0.2 mA
CU50-50~1501°C0.5% F.S ¹ 3°C0.2 mA
CU100-50~1501°C0.5% F.S ¹ 1°C0.2 mA
