Flexem FE6400W

Flexem FE6400W

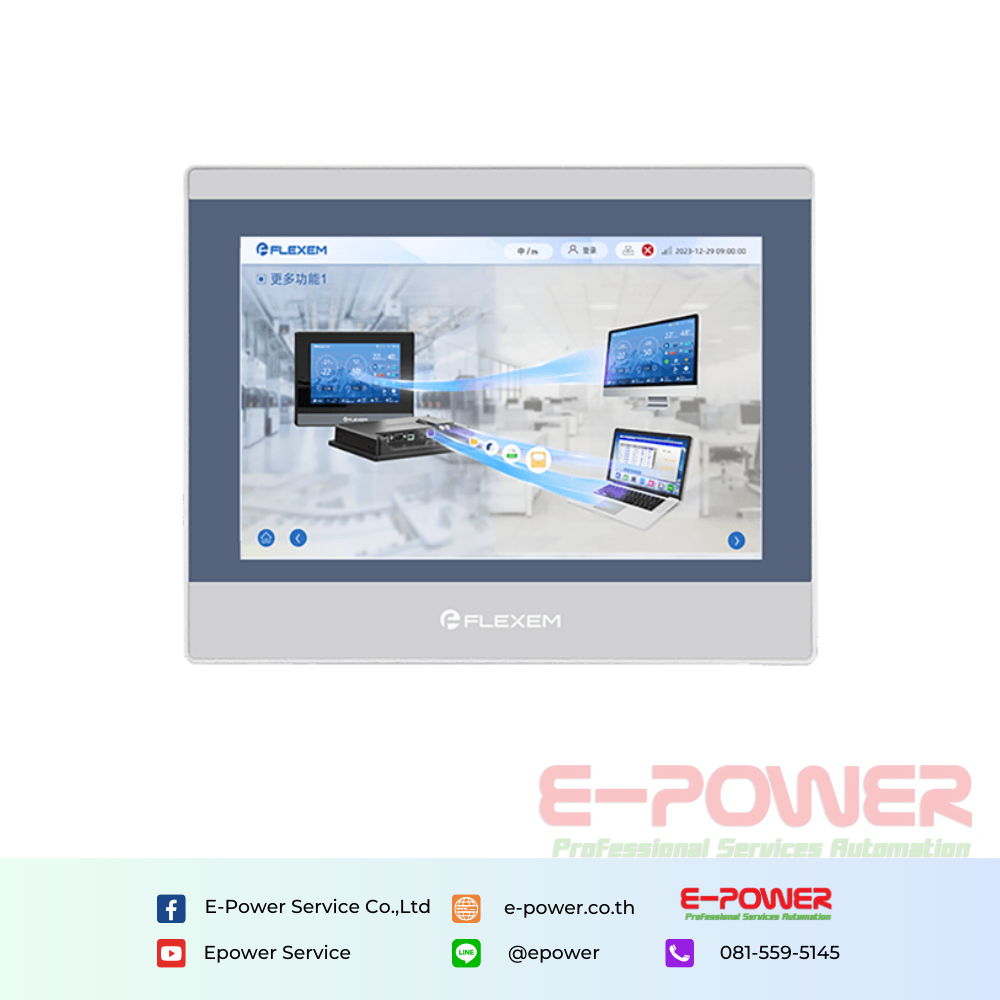

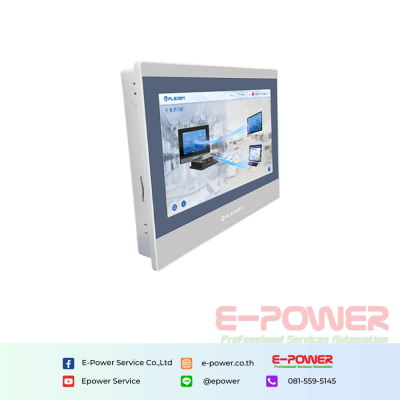

Display: 10.1” 16:9 TFT LCD Resolution: 1024×600 Enclosure Material: Engineering plastic Cutout Dimensions: 260mm×202mm Flexem FE6400W HMI, featuring a 10.1" resistive touchscreen, gray plastic enclosure, 1024×600 resolution, 24-bit colors, high-performance CPU, 4GB storage, IoT module supported, provides a plug-and-play touchscreen connectivity solution.

āļˆāļģāļ™āļ§āļ™
āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Specs

Hardware

Display10.1" 16:9 TFT LCD
LCD Viewing Angles (T/B/L/R)85'/85'/85'/85'
Resolution1024×600
Colors24-bit
Brightness400 cd/mÂē
Touch Panel4-wire industrial resistive touchscreen
CPU1GHzdual core Cortex-A7
Memory4GB eMMC + 256MB DDR3
Ethernet PortNA
USB Port1*Type-C OTG1*USB Type A
Program Download MethodUSB slave / Flash drive
Serial PortCOM1RS232/RS485/RS422COM2RS485COM3: RS232



Electrical

Rated Power< 10W
Rated VoltageDC24V, operational range: DC 9V~28V
Power ProtectionLightning surge protection
Power Interruption Tolerance< 5mS
CertificationEN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge Âą 1 kV, group pulse Âą 2 kV; electrostatic contact 4 kV, air discharge 8 kV



Environmental

Operating Temperature0~50°C
Storage Temperature-20~60°C
UV ResistanceOperating in high UV environment is prohibited (e.g., in direct sunlight)
Environmental Humidity10~90%RH (non-condensing)
Vibration Endurance10~25Hz (X/Y/Z direction 2G/30 minutes)
Cooling MethodNatural air cooling



Mechanical

Protection LevelFront: IP65 (with flush panel cabinet installation), Rear: IP20
Enclosure MaterialEngineering plastic (gray)
Cutout Dimensions260mm×202mm
Dimensions273mm×213mm×36mm
WeightAbout 890g

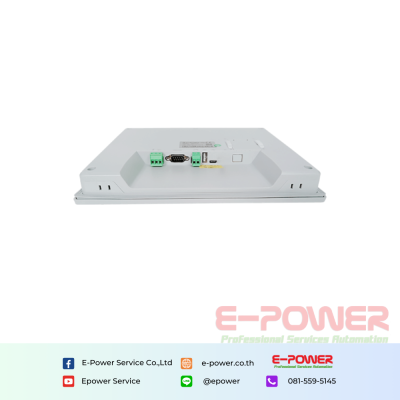

Port

Power Terminal (Pin1~3 from left to right)

Pin1FG
Pin20V
Pin3DC24V



COM1/COM3

Pin1Rx-(B(COM1 RS422/485-)
Pin2RxD (COM1 RS232)
Pin3TxD (COM1 RS232)
Pin4Tx- (COM1 RS422)
Pin5GND
Pin6Rx+(A) (COM1 RS422/485+)
Pin7RxD (COM3 RS232)
Pin8TxD (COM3 RS232)
Pin9Tx+ (COM1 RS422)



COM2

Pin1A+COM2 RS485
Pin2B-COM2 RS485



Size
