Flexem FE7400WE-4G

Flexem FE7400WE-4G

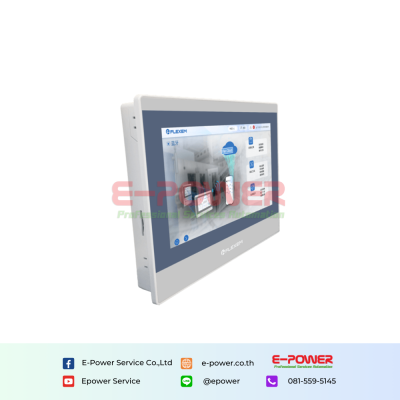

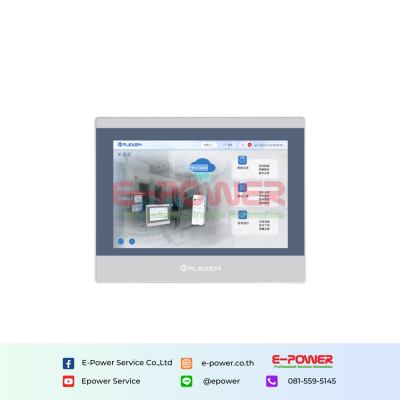

Display: 10.1” 16:9 TFT LCD Resolution: 1024×600 Bluetooth: Support Cutout Dimensions: 260mm×202mm Flexem FE7400WE-4G IoT HMI, featuring a 10.1" resistive touchscreen, gray plastic enclosure, bluetooth function, 1024x600 resolution, 24-bit colors, high-performance CPU, high-capacity storage, built-in IoT function.

āļˆāļģāļ™āļ§āļ™
āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Specs

Hardware

Display10.1 16:9 TFT LCD
LCD Viewing Angles (T/B/L/R)85'/85'/85'/85'
Resolution1024×600
Colors24-bit
Brightness350 cd/mÂē
Touch Panel4-wire industrial resistive touchscreen
CPUCortex-A7(1GHz,2-core)
Memory256MB DDR3 + 4GB eMMC
Ethernet Port1* 10M/100M self-adaptive RJ45 port
USB Port1* USB Type-C 2.0 port; 1* USB Type-A 2.0 port
Program Download MethodUSB Slave/Flash drive/Ethernet
Serial PortCOM1: RS232/RS485/RS422; COM2: RS485; COM3: RS232
BluetoothSupport



Electrical

Rated Power< 10W
Rated VoltageDC24V, operational range: DC 9V~28V
Power ProtectionLightning surge protection
Power Interruption Tolerance< 5mS
CertificationEN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge Âą 1 kV, group pulse Âą 2 kV; electrostatic contact 4 kV, air discharge 8 kV



Environmental

Operating Temperature0~50°C
Storage Temperature-20~60°C
UV ResistanceOperating in high UV environment is prohibited (e.g., in direct sunlight)
Environmental Humidity10~90%RH (non-condensing)
Vibration Endurance10~25Hz (X/Y/Z direction 2G/30 minutes)
Cooling MethodNatural air cooling



Mechanical

Protection LevelIP65 (with flush panel cabinet installation), Rear: IP20
Enclosure MaterialEngineering plastic
Cutout Dimensions260mm×202mm
Dimensions273mm×213mm×36mm
WeightAbout 920g



Software

Connectivity OptionEthernet / 4G
Network Frequency BandLTE FDD: B1/B3/B5/B8; LTE TDD: B38/B39/B40/B41
VPN Transparent TransmissionSupport
Data Monitoring300 points
Alarm Notification100 points
Historical Data 30 points
Edge Computing 20 points
Network Protocol Supports over 100 industrial device protocols

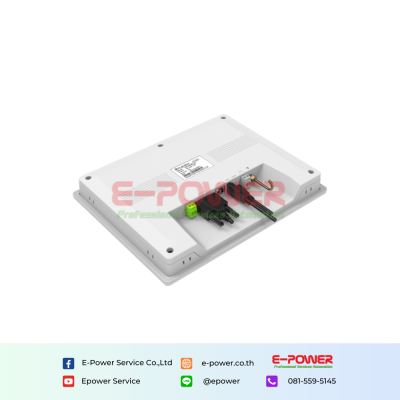

Port

Power Terminal (Pin1~3 from left to right)

Pin10V
Pin2DC24V



DB9 Serial Terminal

Pin1Rx-(B) (COM1 RS422/485-)
Pin2RxD (COM1 RS232)
Pin3TxD (COM1 RS232)
Pin4Tx- (COM1 RS422)
Pin5GND
Pin6Rx+(A) (COM1 RS422/485+)
Pin7RxD (COM3 RS232)
Pin8TxD (COM3 RS232)
Pin9Tx+ (COM1 RS422)



COM2 Port

Pin1A+ (COM2 RS485+)
Pin2B- (COM2 RS485-)



Size
