Flexem F110
Display: 10.1” 16:10 TFT LCD
Resolution: 800×1280
Enclosure Material: Aluminum alloy + Engineering plastic
Cutout Dimensions: 138mm×192mm
Flexem F110 high-performance capacitive touchscreen, featuring a 10.1" multi-touch capacitive touchscreen, high-definition high-brightness full-view display, 800x1280 resolution, 24-bit colors, high-performance CPU, high-capacity storage, and 1 Ethernet port, supports horizontal or vertical screen usage, built-in IoT function, provides a high-performance remote touch-and-control solution.
จำนวน
รายละเอียดสินค้า
Specs
Hardware
| Display | 10.1" 16:10 TFT LCD |
| LCD Viewing Angles (T/B/L/R) | 85'/85'/85'/85' |
| Resolution | 800×1280 |
| Colors | 24-bit |
| Brightness | 400 cd/m² |
| Touch Panel | Capacitive touchscreen |
| CPU | 4-core 1.2G ARM Cortex-A7 processor |
| Memory | 4GB EMMC + 256MB DDR3 |
| Ethernet Port | 1* 10M/100M self-adaptive |
| USB Port | 1* USB Type-C 2.0 port, 1* USB host 2.0 port |
| Program Download Method | Type-C / Flash drive / Ethernet |
| COM Port | COM1: RS232/RS485/RS422; COM2: RS485; COM3: RS232 |
| Network Frequency Band | LTE FDD: B1/B3/B5/B8; LTE TDD: B38/B39/B40/B41 |
| Connectivity Option | Ethernet / 4G (Mobile/Unicom/Telecom) |
| Speaker | Built-in |
Electrical
| Rated Power | < 10W |
| Rated Voltage | DC24V, operational range: DC 9V~28V |
| Power Protection | Lightning surge protection |
| Power Interruption Tolerance | < 5mS |
| Certification | EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV |
Environmental
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~70°C |
| UV Resistance | Operating in high UV environment is prohibited (e.g., in direct sunlight) |
| Environmental Humidity | 10~90%RH (non-condensing) |
| Vibration Endurance | 10~25Hz (X/Y/Z direction 2G/30 minutes) |
| Cooling Method | Natural air cooling |
Mechanical
| Protection Level | Front: IP65 (with flush panel cabinet installation), Rear: IP20 |
| Enclosure Material | Aluminum alloy + Engineering plastic |
| Cutout Dimensions | 138mm×192mm (vertical) / 192mm×138mm (horizontal) |
| Dimensions | 158mm×249mm×30mm |
| Weight | About 900g |
Software
| VPN Transparent Transmission | Available |
| Data Monitoring Limit | 300 |
| Alarm Notification Limit | 100 |
| Historical Data Limit | 100 |
| Edge Computing Limit | 30 |
| Network Protocol | Supports over 100 industrial device protocols |
| Managment and Maintenance | Supports remote firmware upgrade; supports import and export of configuration file; supports configuration update via cloud download |
Port
Power Terminal (Pin1~3 from left to right)
| Pin1 | FG |
| Pin2 | GND |
| Pin3 | DC24V |
DB9 Serial Terminal
| Pin1 | Rx-(B) (COM1 RS422/485-) |
| Pin2 | RxD (COM1 RS232) |
| Pin3 | TxD (COM1 RS232) |
| Pin4 | Tx- (COM1 RS422) |
| Pin5 | GND |
| Pin6 | Rx+(A) (COM1 RS422/485+) |
| Pin7 | RxD (COM3 RS232) |
| Pin8 | TxD (COM3 RS232) |
| Pin9 | Tx+ (COM1 RS422) |
485 Terminal (Pin1~6 from left to right)
| Pin1 | A+ (COM2 RS485) |
| Pin2 | B- (COM2 RS485) |

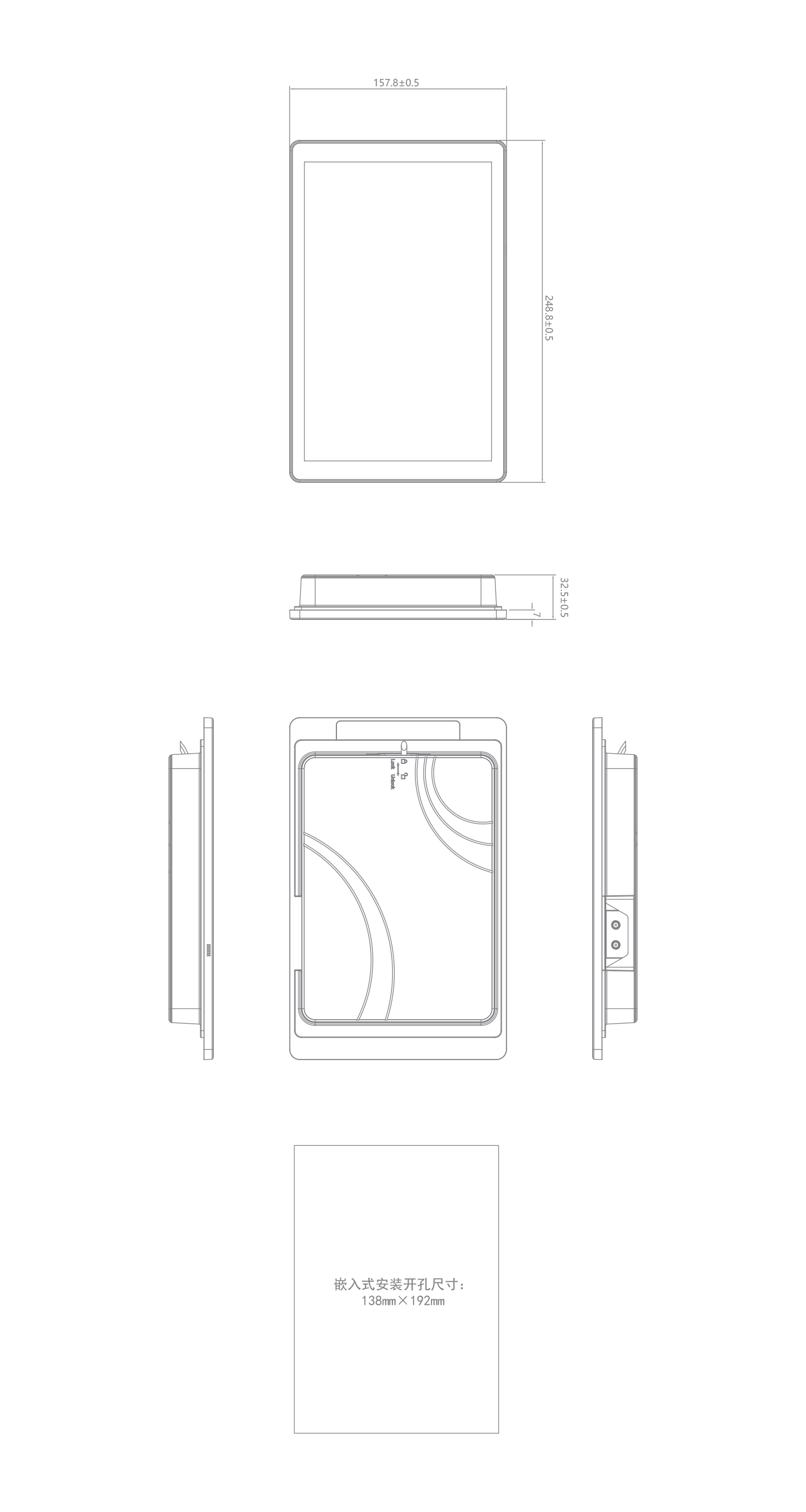

Size
