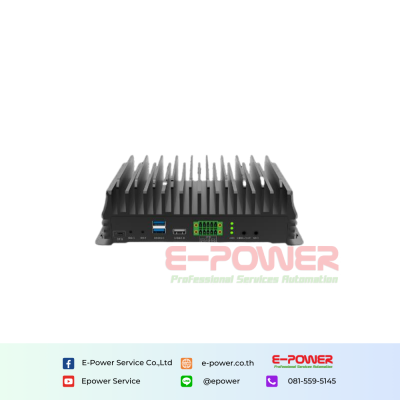

| Model | TABNNAF3R |
| Module | Jetson Orin NANO 8GB |
| GPU | Ampere, 625Mhz 1024 CUDA cores and 32Tensor cores for ON 8GB, 40TOPS(Sparse INT8) |
| CPU | 6-core ARMv8.2 Cortex-A78AE |
| Encode | 1080p30 Supported via CPU Cores with Software |
| Decode | Standards supported H.265 (HEVC)/H.264/VP9/AV11x4K60 (H.265) 2x4K30 (H.265)5x1080p60 (H.265), 11x1080p30 (H.265) |
| Memory | 8GB 128-bit LPDDR5 DRAM, 2133MHz |
| Storage | Nvme SSD |
| Network | 2xGigaLAN(RJ45), 1x4G/5G(4G/5G module), |
| 1xWIFI(optional) | |
| Extend | 1xSIM card slot, 1xMiniPCIE(USB3.0 single), 1xMiniPCIE(PCIe single) |
| IO | 1xUSB2.0, 1xOTG, 1xRS485,1xRS23, 1xCAN |
| 2xUSB3.0, 8xGPIOs | |
| Display | 1xHDMI2.0(TypeA) |
| Power IN | DC_IN 12V/40W |
| LED | 1xGreen LED(Power indication), 2xGreen LED(Controlled by GPIO) |
| MAX P | 18W(JP5.1) |
| Material | Aluminium |
| Radiator | Fin, without fan |
| Temp. O | -30°C-60°C |
| Fixed | Table top placement or bracket installation |
| Colour | Black |
| Weight | 1600g(2200g with packaging) |
| Size | 200x120x66(mm) |
| Package | 310x260x110(mm) |
| OS | Ubuntu 20.04(NVIDIA customized system JP5.1) |
| Advantage | High temperature operation Strong scalability, 5G, SSD |
| Weakness | Larger size, heavy |
