TD080N-TouchWo 8inch Capacitive touchscreen all in one specification
จำนวน
รายละเอียดสินค้า
Technical Parameters
System
| Output (Android PC) | HDMI output inside |
| Input（Touchscreen monitor） | VGA、HDMI input |

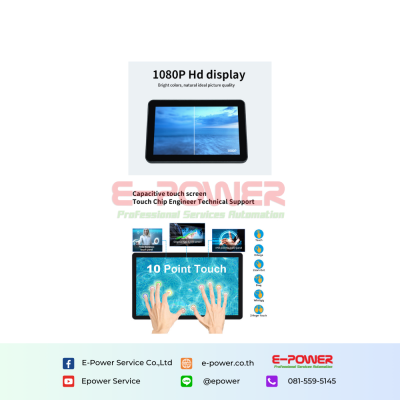

| Touch | PCAP,10 points touch |
| Display | HDMI/VGA 1024*768 |
| Video decoding | MPEG、H.264 etc |

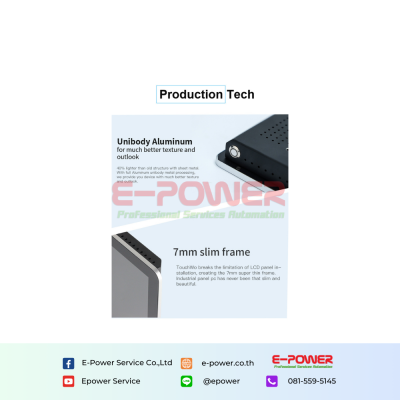

| Design | alloy aluminum frame,metal sheet design, round corner |
| System Integration | Display ,touch, button switch |
LCD Panel
| Screen Type | A-Si,TFT-LCD, back-light, A-type |
| Size | 8 inch (4:3) |
| Display area | 163（W）*122.5（H）mm |
| Resolution | 1024*768 |
| Brightness | is greater than or equal to 250 cd/㎡ |
| Contrast ratio | is greater than or equal to 800：1 |
| Response time | 10/15(Typ.)(Tr/Td) |
| Number of colors | 16.7M , 52% (CIE1931) LVDS 40 Pins |
| Refresh rate | 60Hz |
| Viewing angle | 85/85/85/85 (Typ.) CR10) left/right/up/down |
| Life time | 15000 hours |
Touch Panel
| Touch technology | PCAP | ||
| Response time | < 5ms | ||
| Touch points | 10 points standard, zoom in/ zoom out options | ||
| Touch effective recognition | 1.5mm | Data output method | Coordinate output |
| Scanning Frequency | 200Hz | Scanning accuracy | 4096×4096 |
| Communications | USB 2.0,3.0 | Theoretical Clicks | > 50 Millions |
| Firmware | Upgraded by USB | Driver | NO |
| Working Current/Voltage | 180Ma/DC+5V±5% | ||
| Surface Hardness | Chemically tempered, Mohs class 7 explosion-proof glass | ||
| OS | Win 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP | ||
Power supply parameters
| Input Power | 110－240V AC 50/60Hz | ||
| Output power | DC 12V 3A | ||
| Consumption for Touch monitor | ﹤20W | ||
| Consumption for Touch Android | ﹤25W | ||
| Consumption for Touch Windows | ﹤36W | ||
| Standby power consumption | ﹤0.5W | Speaker | 8Ω3w |
Working environment
| Operating temperature | 0°C-50°C |
| Working humidity | 10% - 80% |
| Storage temperature | -5°C-60°C |
| Storage humidity | 10% - 70% |
| Altitude | Under 5000 meters |
CPU
| Project | Touch Monitor | Android | X86 | CustomDesig |
| Chip | Connected External PC to work properly | Quad-core RK3288 Quad-core RK3568 | N5095 | YES |
| Ram | 2gb/4gb | 2gb/4gb/8gb/16gb | ||
| Hard Disk | 8gb/16gb/32gb options | SSD : 32/64/128gb | ||
| Graphics | Android HD | Core Graphics | ||
| Definition | 720P | |||
| Operating System | Android 7.1 Android 11 for RK3568 | Win 7/ Win 8/Win 10/ Linux | ||
| Internet | Integrated 10/100/1000M，wireless 802.11a/b/g/n | |||

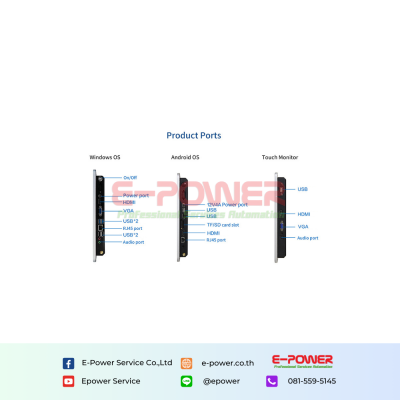

Interfaces & Accessories
Interfaces for Touch screen monitor
| DC Jack | 2.1mm DC12V*1 | Audio | 1 |
| VGA input | 1 | HDMI | 1 |
| USB | 2 | WIFI | 1 |
| TF /SD card slot | 1 | TTL/232/485 options | |
Interfaces for Windows Touch PC
| DC Jack | 2.5mm DC12V*1 | VGA output (15 pins) | 1 |
| RJ45 | 1 | HDMI | 1 |
| USB | 4 | WIFI | 1 |
| Headphone/MIC | 1 | TTL/232/485 options | |
Accessories
| Instructions | 1 |
| AC Power line | 1 |
| Power Adapter | 1 |
| Wall mount/bracket | 1 |
| Warranty Card | 1 |
| Certificate | 1 |
| Wifi Antenna | 1 for Android & Windows onl |
| Cable | USB*1; HDMI *1 for touch monitor only |
Mechanical Parameters
| Size | 8" |
| Display size | 163 * 122.5 mm （4：3） |
| Machine size (W * H *T) | 200×159.5×31.8mm |
| Package size (W * H *T) | 340×277×97mm |
| Mounting bracket | Wall mounted |
| VESA hole | 75×75 mm |
| Wall screw specifications | M4 |
| Net weight | 0.6 KG |
| G.W (packaging) | 1.6KG |
