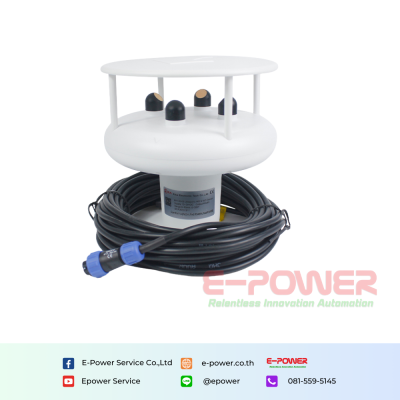

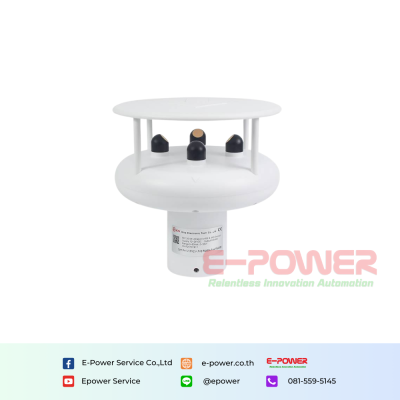

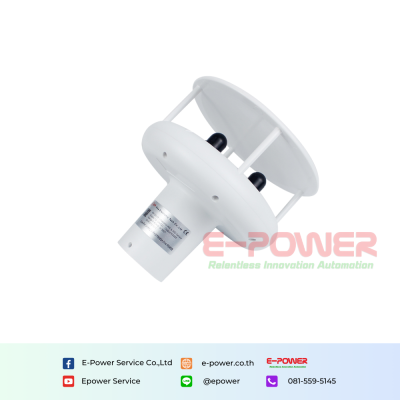

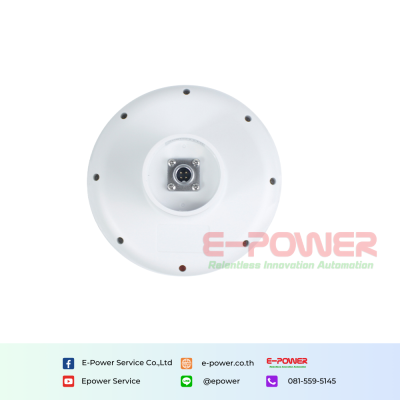

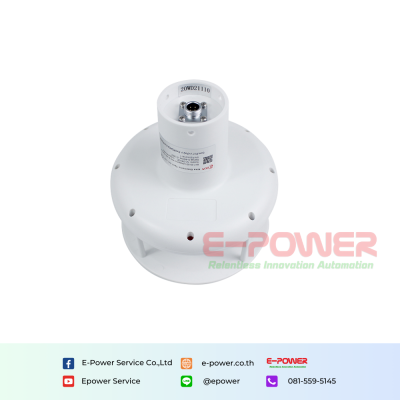

Rika RK120-03 Ultrasonic Wind Speed And Direction Sensor


āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Product Description

Rika RK120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors, integrated by the ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction; built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions,made the accurate and stable elements, low maintenance, an open communications protocol and so on.It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.

Specification

ItemTechnical Specification
Power Supply12-24VDC
Power consumption<1W(Heating not activated); <3W(Heating activated)
Output SignalRS232/RS485(Modbus/NMEA-0183),4-20mA(only for wind speed & direction) optional
Operating Temperature-30°C-+70°C
Ingress ProtectionIP66
Heating power3W max.
Electronic compassoptional
Atmospheric pressureoptional
DimensionÐĪ144*148mm
Weight(unpacked)0.8kg
Main materialASA



ItemTechnical Specification
Wind speedWind directionAtmospheric pressure
Range0-45m/s,0-60m/s0-360°150-1100hPa
Resolution0.01m/s1°0.1hPa
Accuracy10m/sïžšÂą0.2m/s
     ïžž10m/sïžšïžœÂą2% the current value
¹3°¹1 hPa
Starting Threshold0.1m/s0.1m/s
Extreme Wind Speed60m/s



Product Catalogue: RK120-03 Ultrasonic Wind Speed And Direction Sensor
