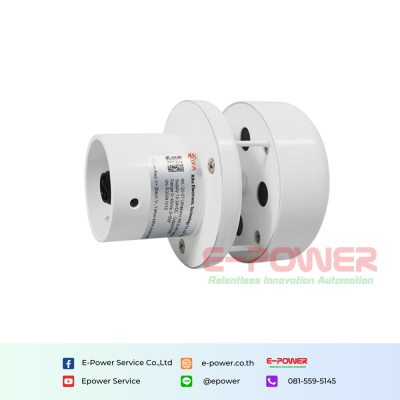

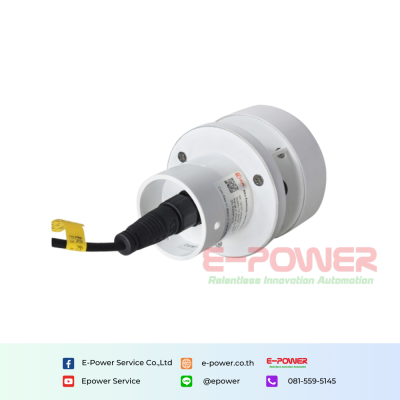

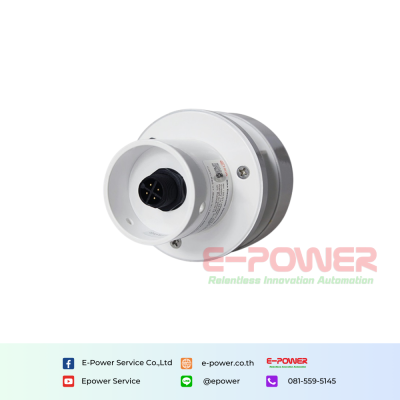

Rika RK120-07 Mini Ultrasonic Wind Speed Direction Sensor


āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Product Description

Rika RK120-07 wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction. RK120-07 uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact. Optional temperature and air pressure module.

Specification

ItemTechnical Specification
Power Supply12-24VDC
Power consumption0.2W
Output SignalRS232/RS485(Modbus/NMEA-0183),SDI-12
Operating Temperature-30°C-+60°C
Ingress ProtectionIP65
DimensionÐĪ82*108mm
Weight(unpacked)0.18kg
Main materialABS



ItemTechnical Specification
RangeResolution Accuracy
Wind Speed0-40m/s0.1m/sÂą3%
Wind Direction0-360°1°¹3°
Starting Threshold0.1m/s0.1m/s        -
Extreme Wind Speed60m/s



Product Catalogue: Rika RK120-07 Mini Ultrasonic Wind Speed Direction Sensor
