RK150-01 Crane Wind Speed Sensor and Indicator （Wireless version）
รายละเอียดสินค้า
ดาวน์โหลด
PRODUCT DESCRIPTION

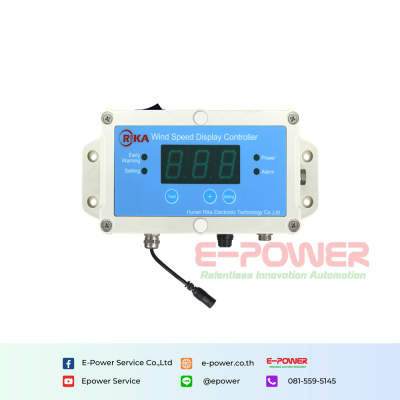

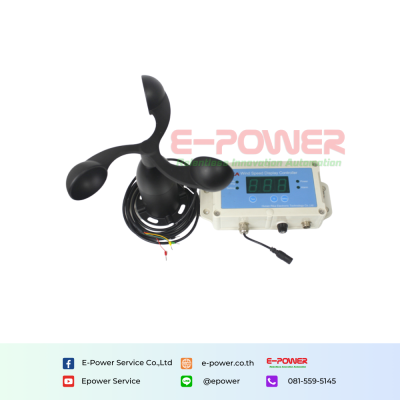

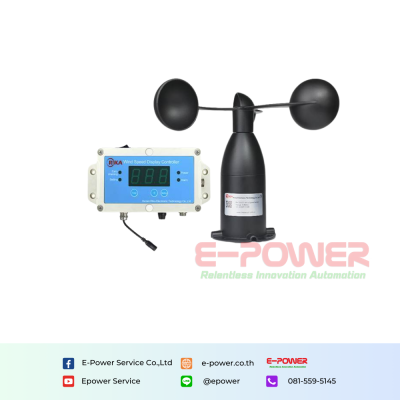

The RK150-01 anemometer is equipped with LED digital display screen that can intuitively display real-time wind speed.Built in microprocessor with high performance and low power consumption.Wind speedwarning and alarm values can be set through the buttons on the panel.When giving a warning or alarm,the wind speed sensor signal output can control the relay action.Sensors and anemometers can beconnected both wired and wireless to monitor environmental wind speed in real-time.
Wind Speed Sensor Technical Specifications Table
| Item | Technical Specification | |
| Range | 0-60m/s | 0-216km/h |
| Accuracy | ±(0.3+0.03V)m/s | ±(1.08+0.11V)km/h |
| Resolution(display) | 0.1m/s | 0.1km/h |
| Early warning | Any value within 1 m/s~59 m/s,the warning value must be lower than the alarm value | Any value within1km/h~212km/h,the warning value must be lower than the alarm value |
| Alarm | Any value within 1 m/s~60 m/s | Any value within 1km/h~216km/h |
| Alarm response time | <100mS | |
| Type of alarm | Sound and light alarm | |
| Contact capacity | 10A@30VDC/250VAC | |
| Wired type | Cable:200m(max.)between sensor and controller | |
| Wireless type | Effective distance:1km(LOS)between sensor and controller | |
| Operating temperature | -30~+70 | |
| Power supply | AC100-240V/DC12V-DC24V | |
| Power consumption | Wired:<3W(sensor & controller) Wireless:sensor:0.25W,controller:2.5W | |
| Ingress protection | Controller:IP54,wind speed sensor:IP65 | |
| Weight(unpacked) | Controller:315g,wind speed sensor:240g | |
| Main material | Controller(housing):ABS,wind speed sensor:Aluminum alloy | |
| Storage condition | 10-50@20%-90%RH | |
