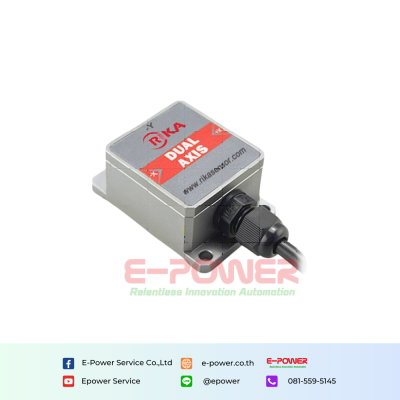

Rika RK700-01 Digital Dual-Axis Inclination Sensor
PRODUCT DESCRIPTION
Rika RK700-01 is a new generation of digital small-volume micro-electro-mechanical tilt sensor. It has a dual-channel gravitational tilt unit, which converts the static gravitational acceleration into the tilt change, so that the tilt and pitch angle of the sensor relative to the horizontal plane can be measured. The product adopts secondary correction technology, which has high measurement accuracy.
This product uses non-contact measurement of the original quantity, can output the current attitude angle in real time, and is simple to use. It is an ideal choice for industrial automation control and platform attitude measurement. It has strong ability to resist external electromagnetic interference and can adapt to long-term work in harsh industrial environment. This product is mainly suitable for dynamic measurement of static and slow changes, but not for dynamic measurement of rapid changes.
SPECIFICATIONS
| Item | Specification |
| Power supply | 5VDC(4.5-7VDC),9-36VDC is optional |
| Measuring range | ±10° |
| Measuring axis | X,Y |
| Resolution | 0.1° |
| Absolute | 0.1° |
| Zero temperature | ±0.008°/°C |
| Sensitivity temperature | 150ppm/°C |
| Power on time | 500m |
| Response time | 50mS |
| Output signal | RS232/RS485/TTL is optional |
| Working current | 40mA typ |
| Operating Temperature | -40°C-+85°C |
| Storage Condition | 10°C-60°C@20%-90%RH |
| EM | According to EN61000 |
| MTB | 45000 hours |
| Insulation Resistance | 100MΩ |
| Shockproof | 100g@11ms、3Times/Axis(half sine) |
| Anti-vibration | 10grms、10～1000Hz |
| Ingress Protection | IP67 |
| Cables | Shielded cables 4*0.4mm2 ，length=1m default |
| Housing material | Aluminium alloy |
| Installation | 3*M4 screws |
| Weight | 90g(without cable) |
