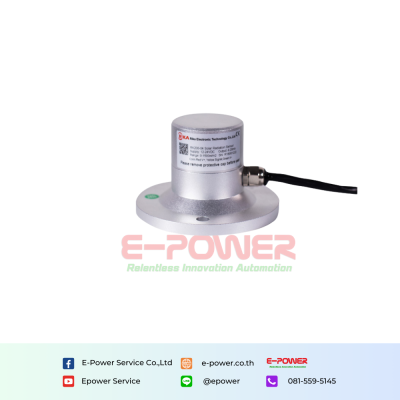

Rika RK200-04 Solar Radiation Sensor Solar Irradiance Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
PRODUCT DESCRIPTION
Rika RK200-04 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-1100nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. Solar radiation sensor is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc.
SPECIFICATIONS
| Item | Specification |
| Spectral range | 300ï―1100nm |
| Supply | 5V,12-24VDC |
| Range | 0-1500W/m2 |
| Resolution | 1W/m2 |
| Output | 0-5V,4-20mA,RS485 |
| Response time | 5s |
| Cosine correction | ¹10%(Solar elevation angle=10°) |
| Non-linear | Âą3% |
| Temperature effect | ¹0.08%/°C |
| Stability | Âą2%/year |
| Operating Temperature | -40°C-+80°C |
| Ingress Protection | IP65 |
| Weight(unpacked) | 420g |
| Shell material | Aluminum alloy |
| Storage Condition | 10°C-60°C @20%-90%RH |
