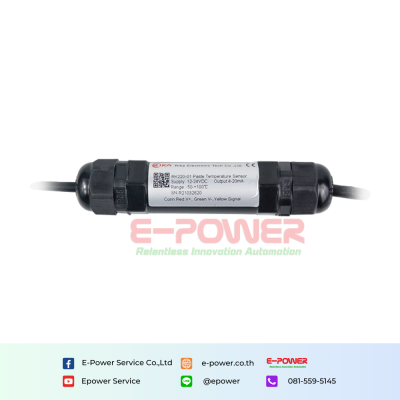

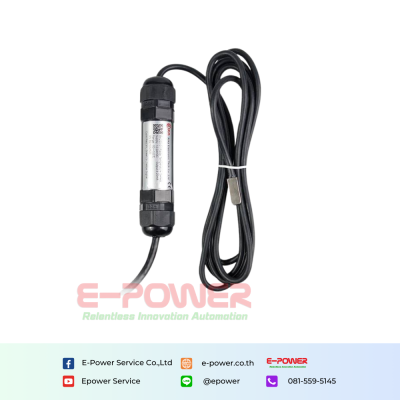

Rika RK220-01 Paste Type Temperature Sensor for Solar PV Module
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
PRODUCT DESCRIPTION
Rika RK220-01 Paste Type Temperature Sensor adopts high precision platinum resistance (PT100) as the sensing component. It is with high accuracy, good stability. The signal conversion module can convert temperature to corresponding voltage, current or RS485 optionally. RK220-01 Past type solar PV module temperature sensor is compact, easy-to-install, with good linearity, strong load capacity, long transmission distance and good anti- interference ability.
SPECIFICATIONS
| Item | Specification | |||
| Range | -50-+100, -20-+50 | |||
| Supply Voltage | 5VDC,12-24VDC | / | ||
| Accuracy | ¹0.5 | ¹0.3°C | ||
| Output | 4-20mA | 0-5V | RS485 | PT100/PT1000 3-wires |
| Load Capacity | 250ÎĐ | 1K | / | / |
| Ingress Protection | IP65 | |||
| Operating Temperature | Probe: -50°C-+120°C Conversion module:-40°C-+85°C | |||
| Weight(unpacked) | Probe: 85g | |||

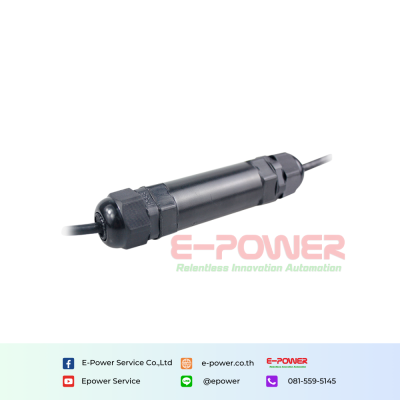

| Transmitter module dimension | 98*66*49mm or ÐĪ25*120mm | |||
| Storage Condition | 10°C-60°C @20%-90%RH | |||

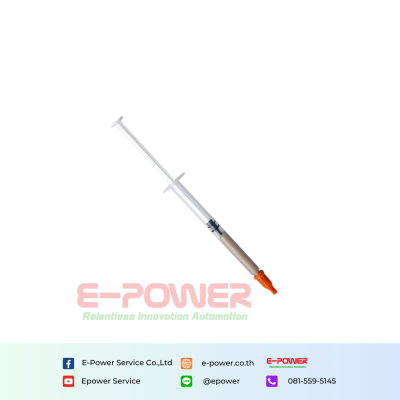

| Surface mount adhesive | Attached | |||
