Rika RK200-09 Scattering Radiometer


āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

PRODUCT DESCRIPTION

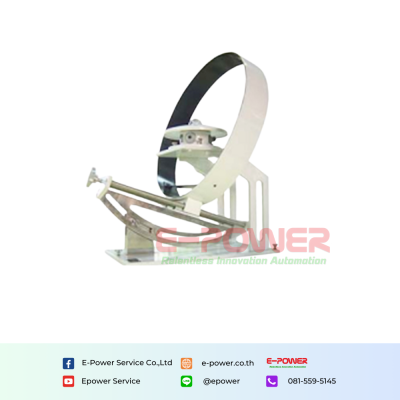

Scattering radiometer is composed of Pyranometer and shielding ring.The purpose of a shielding ring is to keep the sun's direct radiation out from sunrise to sunset.The shielding ring is composed of shielding ring, ruler,adjusting screw, bracket and chassis.The width of the shielding ring is 65mm and the diameter is 400mm. The shielding ring is fixed on the screw rod adjustment spiral of the ruler, on which the latitude scale and declination scale are engraved.The ruler and bracket shall be fixed on the chassis according to the geographical latitude of the location.It can be widely used to continuously measure the scattered radiation intensity of the sky with meteorological stations and scientific research departments.

SPECIFICATIONS

ItemSpecification
Spectral range280-3000nm
Supply12-24VDC
Range0-2000W/m2
Output0-5V,4-20mA,RS485
Sensitivity7-14ΞV*W-1*m2
Latitude scale range0ï―ž50°N or S
Red latitude¹25°
Ring diameterÎĶ400mm
Accuracy<Âą2%
Response time30s(99%)
StabilityÂą1%/year
Temperature effect¹1%(-10°C-+40°C)
Operating temperature-40°C-+80°C
Weight(unpacked)15kg
Ingress ProtectionIP65
Storage Condition10°C-60°C @20%-90%RH


Product Catalogue: Rika RK200-09 Scattering Radiometer
