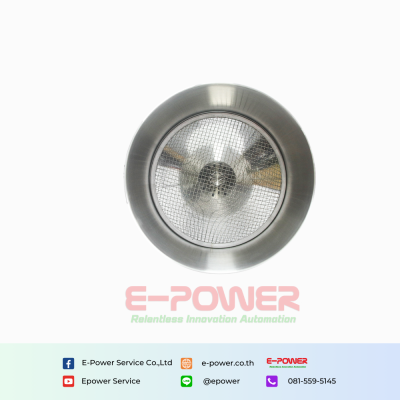

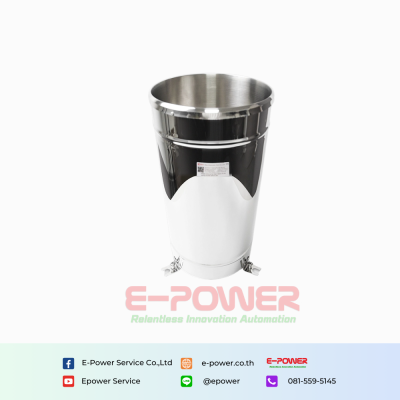

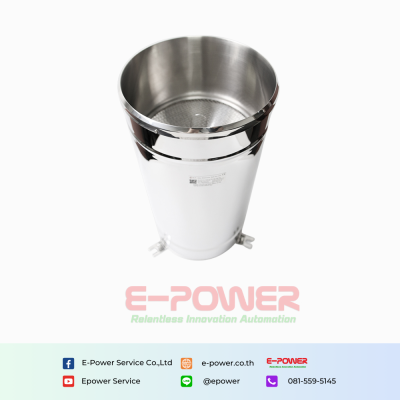

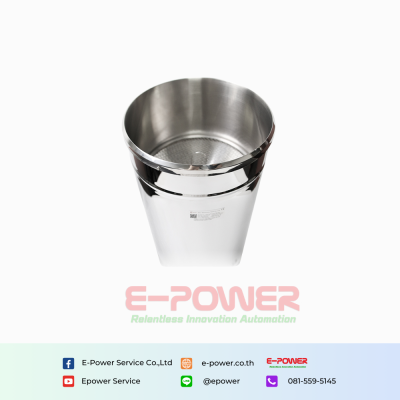

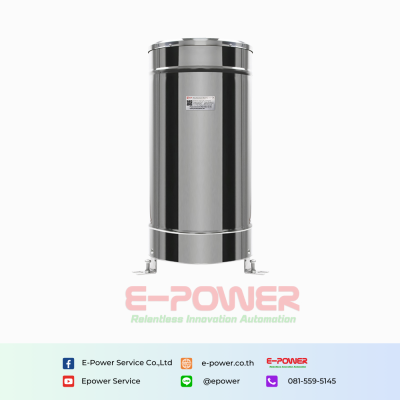

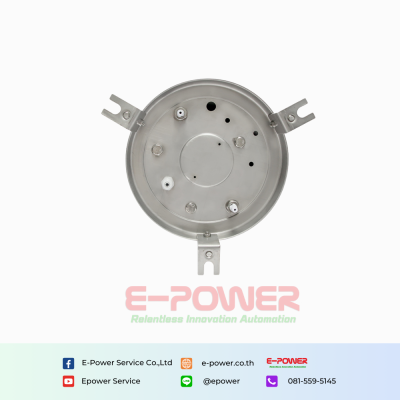

Rika RK400-07 Tipping Bucket Rainfall Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
PRODUCT DESCRIPTION
Rika RK400-07 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.
SPECIFICATIONS
| Item | Technical Specification |
| Rainfall collector | Ï200mm,40-45° |
| Measured rainfall intensity | Max:4mm/min |
| Allowable rainfall intensity | Max:10mm/min |
| Resolution | 0.5mm |
| Accuracy(2mm/min) | Âą4%(Indoor static test,rain intensity of 2mm/min) |
| Maximum load voltage | 30VDC(pulse output) |
| Maximum load current | 20mA(pulse output) |
| Output | Reed switch pulses,RS485(12-24VDC supply) |
| Operating temperature(no freeze) | 0-70 |
| Main material | Collector:304SS,tipping bucket:ABS |
| Tipping bucket | Single |
| Bird spikes | Optional |
| Heating(optional) | 200W@220V |
| Collector filter | Removable filter(prevent leaves and sundries) |
| Weight(unpacked) | 3.5kg |
