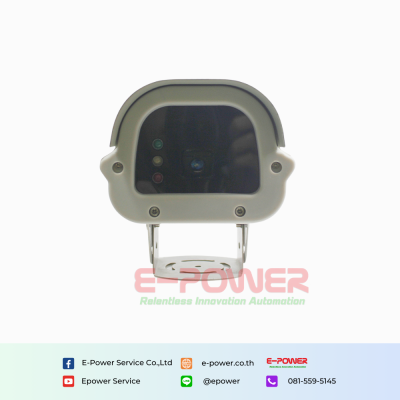

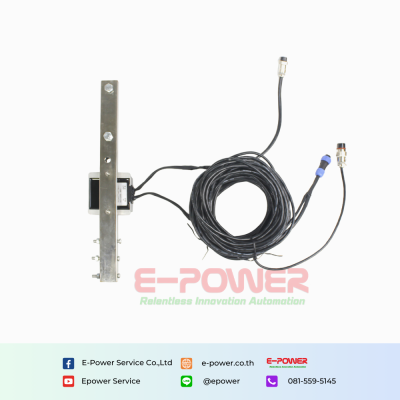

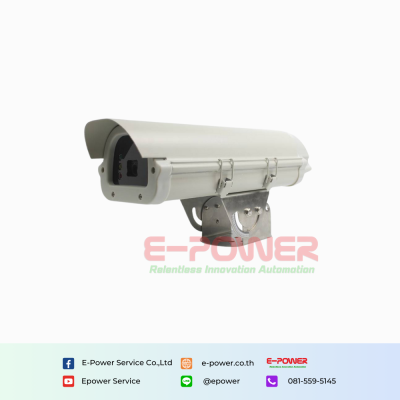

Rika RK400-14 Laser Snow Depth Sensor
PRODUCT DESCRIPTION
Rika RK400-14 has a large measuring range and high accuracy, with a maximum accuracy of 1mm. It also has super anti-interference ability and is widely used in various industrial control such as steel industry, metallurgical industry, automobile industry, printing industry, food industry, etc., and various field monitoring and inspection sites. The principle of the laser snow depth sensor is the optical triangulation method, and the semiconductor laser is focused on the measured object by the lens. The reflected light is collected by the lens and projected onto the CMOS array; the signal processor calculates the position of the light spot on the array through the trigonometric function to obtain the distance to the object.
SPECIFICATIONS
| Item | Specification |
| Range | 0.05~1.5m |
| Laser characteristics | Red laser diode |
| Wavelength | 620nmï―650nm |
| Laser class | Level 2 |
| Spot type | Point |
| Spot size | Spot light spot 5mm@10m Line spot 3mmX150mm@10m |
| Protection level | IP65 |
| Resolution | 1mm |
| Accuracy | Âą1mm |
| Power consumption | 300mA |
| Supply | 9-18VDC |
| Output | RS485, RS232, 4-20mA,0-5V optional |
| Operating temperature | -40-+50°C |
| Main material | White steel coated or sprayed |
| Weight(unpacked) | 2.5kg |
User Manual: RK400-14 Customized Laser Snow Depth Sensor User Manual
Product Catalogue: RK400-14 Laser Snow Sensor Product Catalogue
