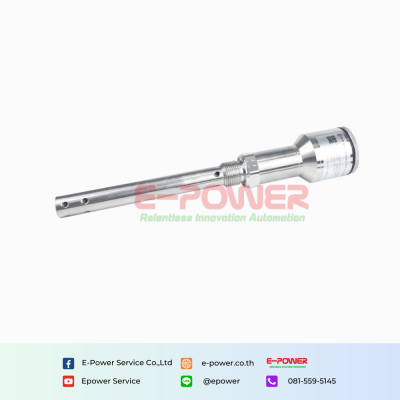

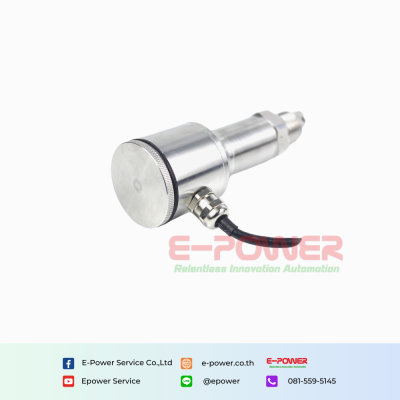

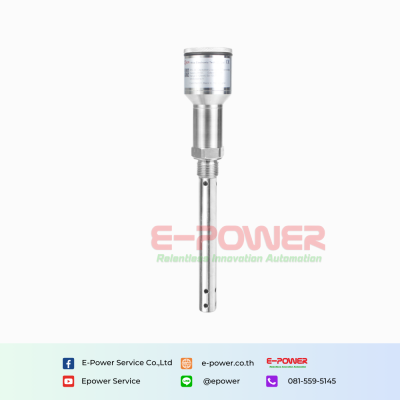

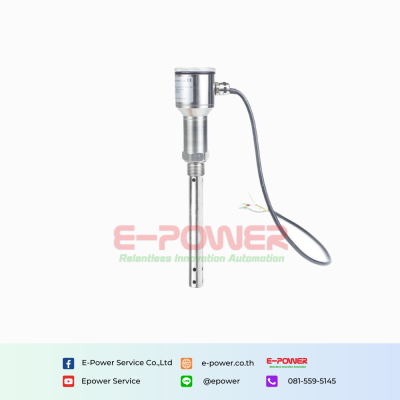

Rika RKL-04 Capacitance Fuel Level Sensor


āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

PRODUCT DESCRIPTION

The sensing part of the RKL-04 is a coaxial capacitor, when the liquid enters the condenser caused the change of the sensor shell and sensor capacitance between electrodes, the variation through the subsequent acquisition and conversion circuit and precise linear and temperature compensation, the output field required standard voltage, current, the digital signal, sampling frequency is adjustable. Food grade Teflon and 304 stainless steel material with fully welded structure, high health level, high breaking strength; Long - term stability, high reliability. Used for measuring: oil (gasoline, diesel oil, hydraulic oil, lubricating oil), water (sewage), beverage, medical treatment, chemical and other liquid media, suitable for high and low temperature, or even viscous liquid media occasions. Extremely wide measuring range: 0.03......2m, especially suitable for measuring liquid heights below 500mm.

SPECIFICATIONS

ItemTechnical specificationsItemTechnical specifications
Range

0-30...100...500.....700......2000mm

Operating Temperature-40°C~ +80°C(Other temperatures can be customized)
Output4-20mA,0-5V, RS485Pressure range-0.1mpa ~ 0.5mpa
Supply VoltageDC12-24VStorage temperature
-40 ~ +100°C
Comprehensive Accuracy
1.0%FSBlind area detection5mm(optional),10mm(typ.)
Long-term stability0.2%FSProbe diameterÐĪ16 mm
Zero temperature drift
0.02%FS/°C
Fixed thread installation
M20×1.5, G1/2, customized; Flange DN25, DN40, DN50 can be installed
Full temperature drift0.03%FS/°CElectrical interfaceDirect line
Ingress ProtectionIP67Measuring the dielectricsel oil, hydraulic oil, lubricating oil), water (sewage), beverage, medical, chemical and other liquid media



Product Catalogue: Rika RKL-04 Capacitance Fuel Level Sensor
