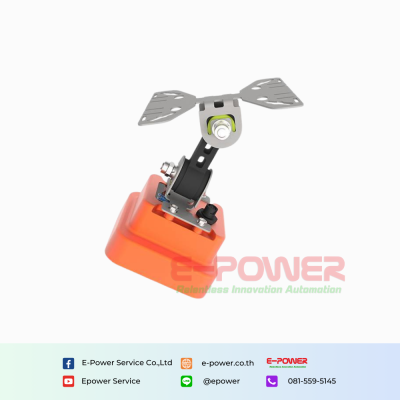

Rika RKL-05 Radar Velocity Sensor


āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

PRODUCT DESCRIPTION

Rika RKL-05 radar velocity meter is a non-contact radar velocity measurement device, which can effectively monitor.Surface velocity of water flow in various channels and natural channels.The product is easy to install and maintain, and easy to operate.Widely applicable to water.In the fields of literature, flood control and drainage, environmental pollution monitoring, etc., 7x24 hours online monitoring is realized.

SPECIFICATIONS

ItemTechnical specifications
Frequency24GHz
Range0.1 ~ 20 m/s (It has to do with the flow pattern)
AccuracyÂą0.01m/s ïž›Âą1%FS
Resolution0.01m/s
Beam Angle12 °
Pitch Angle30 ~ 70 °
Intelligent perception and compensation of attitude AngleAccuracyÂą0.5°ResolutionÂą0.1°
SupplyDC6 ~ 30V (suggested use 12 v)
Power consumptionWorking current :40mA@12V; Standby current :5mA@12V
OutputRS485(MODBUS-RTU)
Working temperature- 40°C ~ + 80°C
Protection gradeIP68
Product size105*105*60mm
Weight0.45Kg
Cable length10 m(default), customizable



Product Catalogue: Rika RKL-05 Radar velocity sensor
