PRODUCT DESCRIPTION

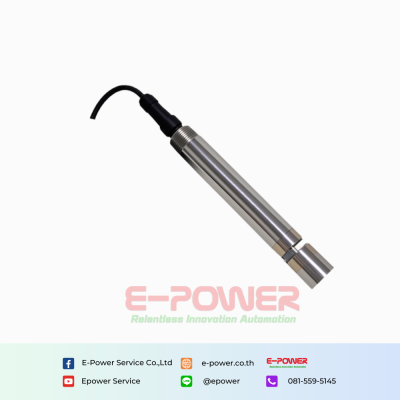

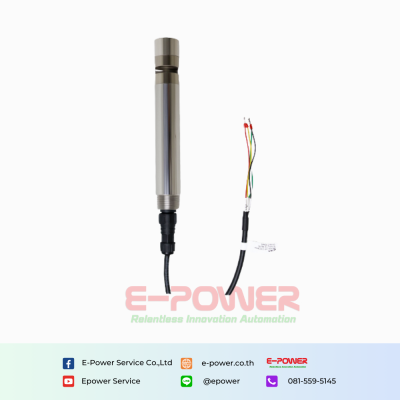

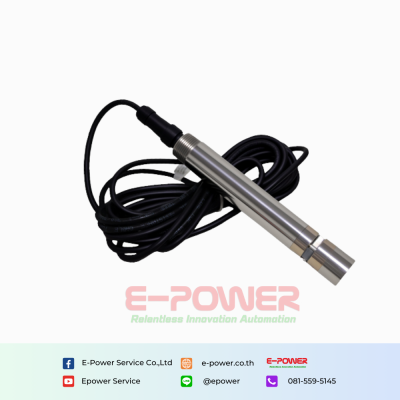

The RK500-20 Total Suspended Solid (TSS)Sensor is made of optical principle. When a beam of light is injected into the water sample, the suspended substance in the water sample will cause light to scatter. By measuring the intensity of backscattered light and comparing it with the internal calibration value, the suspended substance in the water sample can be calculated, and the final value can be output after linearization.
SPECIFICATIONS
| Item | Technical Specification |
| Range | 0-100mg/L,0-1000mg/L,0-4000mg/L,0-40000mg/L |
| Accuracy | Âą3%FS |
| Resolution | 0.1mg/L(<100mg/L) ïž1mg/L(>100 mg/L) |
| Power | 12-24VDC |
| Response time | <2s |
| Clean | Automatic cleaning brush |
| Output | 4-20mA & RS485(Modbus-RTU) |
| Main material | 316L |
| Protection class | IP68 |
| Working conditions | 0-60°C,<0.8MPa |
| Cable length | 5 m(default), customizable |
Product Catalogue: Rika RK500-20 Total Suspended Solid (TSS)Sensor
