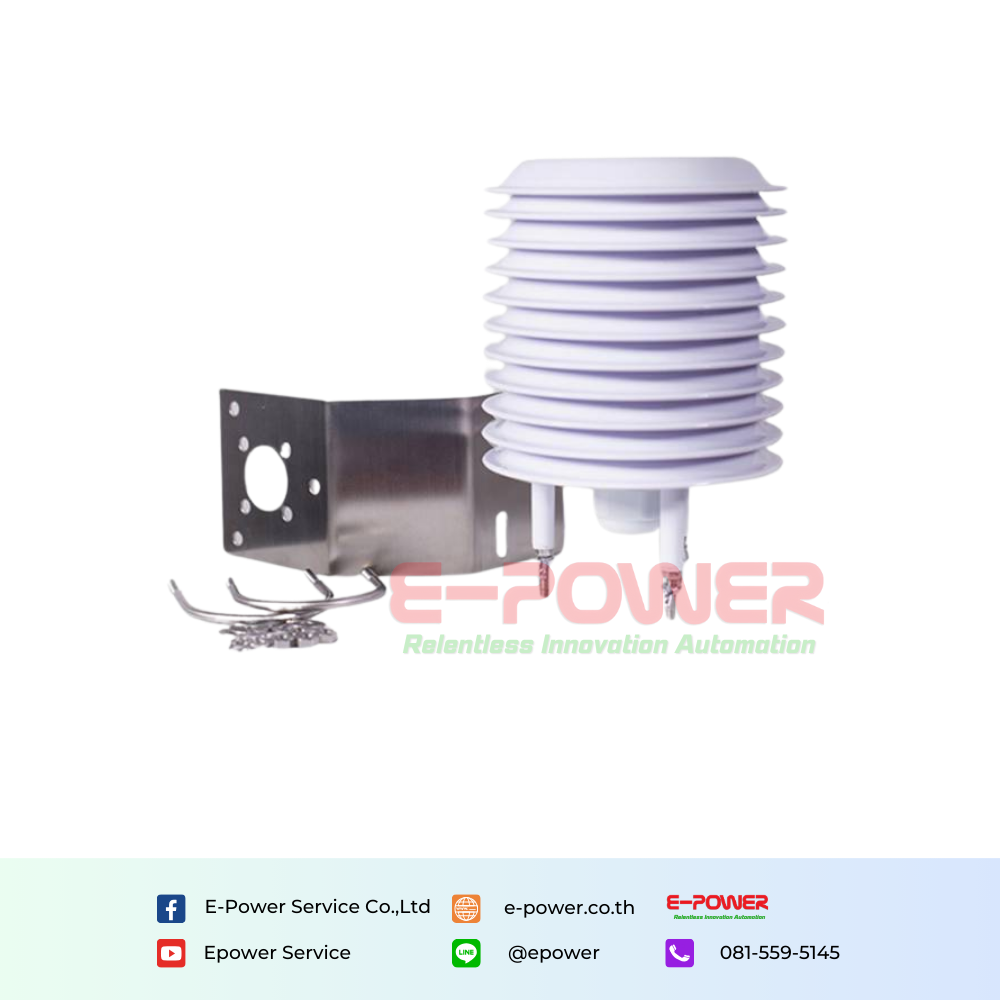

Rika RK95-01 Multi-plate Solar Radiation Shield
PRODUCT DESCRIPTION
The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.
SPECIFICATIONS
| Item | Specification |
| Number of plates | 4 -20 plates optional,typ.:11,14,19 |
| Color | White |
| Material | Anti-radiation ABS engineering plastics & Stainless steel screw |
| Operating temperature | -40°C-+75°C |
| Dimension | Inner diameter:62mm,Outer diameter:140mm/180mm Height:180mm(11 plates),220mm(14 plates),280mm(19 plates) |
| Optional accessories | Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS) |
