BL360 ARM Based Embedded Industrial PC

ARM Based Embedded Industrial PC Item No.: BL360 BL360 ARMxy Embedded Industrial PC is an industrial-grade ARM embedded computers featuring flexible I/O ports and SoM configuration capabilities. Designed based on the NXP i.MX8M Mini multi-core processor.

รายละเอียดสินค้า

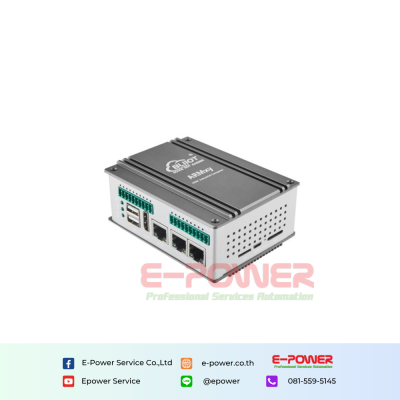

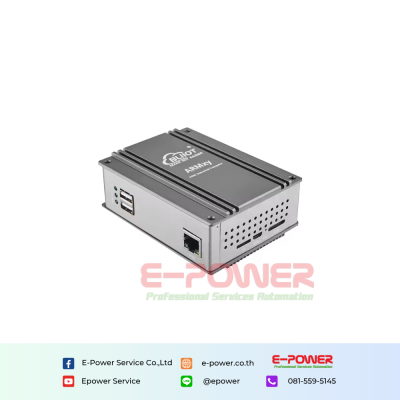

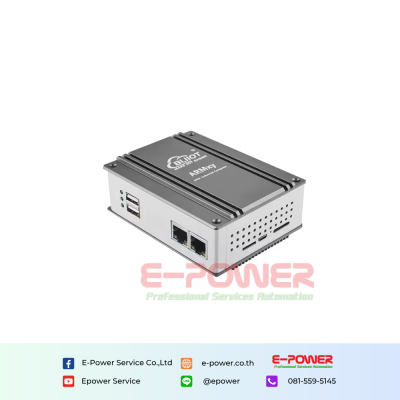

The BL360 ARMxy embedded industrial PC is an industrial-grade ARM embedded computer featuring flexible I/O ports and SoM configuration capabilities. Designed based on the NXP i.MX8M Mini multi-core processor, it incorporates a quad-core ARM Cortex-A53 (up to 1.6GHz) and a single-core ARM Cortex-M4 (up to 400MHz). Built on advanced 14nm process technology, the embedded industrial PC supports 1080P60 H.264 hardware video encoding, 1080P60 H.265 hardware decoding, and GPU graphics acceleration. The BL360 embedded computer is widely used in industrial control, edge computing gateways, AIoT, artificial intelligence, communication management, AGV robots, machine vision inspection, industrial IoT gateways, energy storage systems, automation control, and rail transit applications.
The BL360 ARM Computers offers a rich set of interface configurations, including 1 to 3 adaptive 10/100M RJ45 Ethernet ports, 2 USB 2.0 ports, an optional HDMI 2.0 port, an optional X-series I/O board, and 2 optional Y-series I/O boards, supporting communication, PWM output, pulse counting, and other data acquisition and control functions. Additionally, the device supports 1080P@60fps H.264 video encoding and 1080P@60fps H.265 video decoding. It features a built-in Mini PCIe interface, enabling expansion with Bluetooth, WiFi, 4G, and 5G modules.
The BL360 embedded industrial PC supports operating systems such as Linux-5.4.70 kernel, Yocto 3.0, and Ubuntu 20.04. It integrates Docker containers, Node-Red, and Qt-5.15.10 for graphical interface development. Equipped with the BLIoTLink industrial protocol conversion software, it supports Modbus, PLC, MQTT, and other protocols, enabling seamless integration with mainstream IoT cloud platforms and SCADA systems. Additionally, the BLRAT remote access tool allows users to perform remote maintenance, improving operational efficiency.



Product Selection Guide
The ARMxy series ARM Based Embedded Industrial PC adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SoM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SoM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number
For example BL360-SOM360-X10, means 1 Ethernet port, 4GB eMMC storage, 1GB DDR4 memory, and 2 RS485 ports
If you need to add WiFi, then you would append "W" to the host model number. For example: BL360W-SOM360-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL360L-SOM360-X10

_____________________________________________________________

ARMxy BL360 Model List

ModelETHUSBHDMIX board IO
Slot
Y board IO
Slot
Dimension
BL3601x10/100M2X1x6PINX42x83x110mm
BL360A1x10/100M2X1x20PINX42x83x110mm
BL360B1x10/100M2X1x20PIN248x83x110mm
BL360C1x10/100M2X1x10PINX42x83x110mm
BL3612x10/100M2X1x6PINX42x83x110mm
BL361A2x10/100M2X1x20PINX42x83x110mm
BL361B2x10/100M2X1x20PIN248x83x110mm
BL3623x10/100M211x6PINX42x83x110mm
BL362A3x10/100M211x20PINX42x83x110mm
BL362B3x10/100M211x20PIN248x83x110mm



ARMxy BL360 SOM Model List

ModelMCUClock SpeedKerneleMMCDDR3Temperature
SOM360i.MX8M Mini1.8GHz4 x A53 +M04GByte1GByte-40~85°C
SOM361i.MX8M Mini1.8GHz4 x A53 +M08GByte2GByte-40~85°C



X Series I/O Board Model List
You can choose the right X-series I/O board according to your needs, and the number of pins of the X-series I/O board should be adapted to the shell.

ModelRS232/485CANDIDOGPIOPIN
102xxxx6PIN
11x2xxx6PIN
1211xxx6PIN
13xx22x6PIN
14xx4xx6PIN
15xxx4x6PIN
16xxxx46PIN
204xxxx10PIN
2131xxx10PIN
2222xxx10PIN
234x44x20PIN
243144x20PIN
252244x20PIN
262x84x20PIN
271184x20PIN
282x12xx20PIN
291112xx20PIN
30xxxx1620PIN



Y Series I/O Board Model List
Depending on your needs, you can choose the right Y-series I/O board, and the Y-series I/O modules are suitable for all Y-slots.

ModelDescription ModelDescription
Y014DI+4DO, NPNY434AO, 0~5/10V
Y024DI+4DO, PNPY464AO, ±5V/±10V
Y118DI, NPNY512RTD, 3-Wire PT100
Y128DI, PNPY522RTD, 3-Wire PT100
Y138DI, Dry ContactY532RTD, 4-Wire PT100
Y218DO, PNPY542RTD, 4-Wire PT100
Y228DO, NPNY56Resistance measurement
Y244DO, RelayY57Voltage measurement
Y314AI, single-ended, 0/4~20mAY584TC
Y334AI, single-ended, 0~5/10VY634RS485 or RS232
Y344AI, differential, 0~5/10VY954 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), NPN
Y364AI, differential, ±5V/±10V
Y374 IEP MeasurementY964 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), PNP
Y414AO, 0/4~20mA



Note: When Y63:4-channel RS485 is selected, the second Y-board
will fail and can only be supplemented with an empty board.
