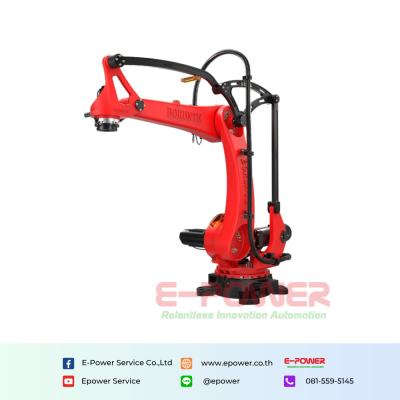

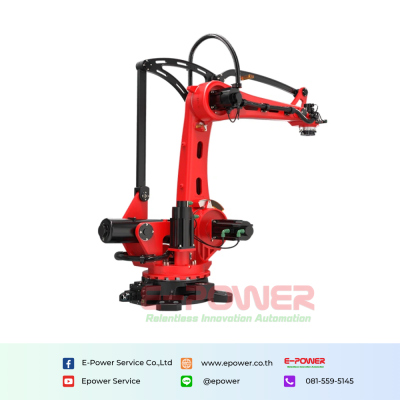

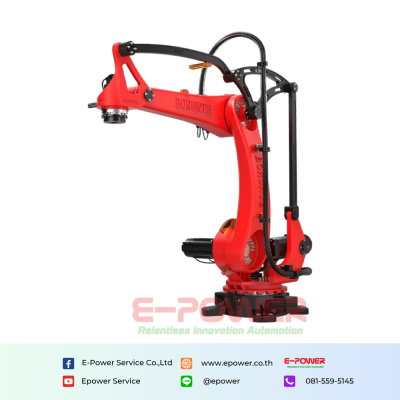

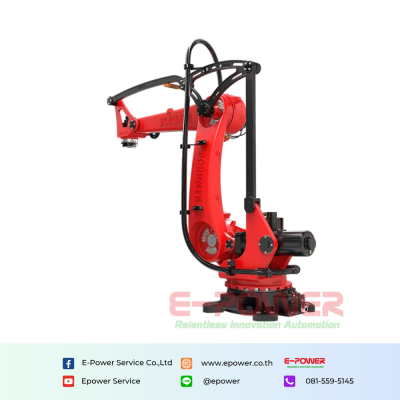

Borunte BRTIRPZ3013A Full Servo Motor-Driven Practical Industrial Stacking Robot
MODEL : BRTIRPZ3013A
PRODUCT DETAILS
BRTIRPZ3013A type robot is a four-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 3020mm. The maximum load is 130kg. It's flexible with multiple degrees of freedom. Suitable for loading and unloading, handling, dismantling and stacking etc. The protection grade reaches IP40. The repeat positioning accurancy is ±0.15mm.
Main Specification
Arm Length (mm) : 3020
Repeatability (mm) : ±0.15
Loading Ability (kg) : 130
Power Source (kVA) : 8.23
Weight (kg) : About 1200
| Item | Range | Max.speed | |
| Arm | J1 | ±160° | 63.8°/s |
| J2 | -75°/+30° | 53°/s | |
| J3 | -55°/+60° | 53°/s | |
| Wrist | J4 | ±180° | 200°/s |
| R34 | 65°-185° | / | |
Features of The Full Servo Motor-driven Practical Industrial Stacking Robot
1. Wide application: packaging, food, beverage, and chemical industries.
2. High precision and speed: servo motor and high-precision reducer are used, with fast response and high precision.
3. High productivity: it can work continuously 24 hours with high productivity.
4. Improved working environment: workers' working conditions are improved, and employee intensity is reduced.
5. Enterprise cost: early investment, reduced labor costs, and recovery of investment cost in half a year.
Working Condition
Power source：380V±10% 50HZ±1%
Temperature：0-40
Best temperature：15-25
Relative humidity：20-80%RH ( No condensation )
Mpa：0.5-0.7 Mpa
