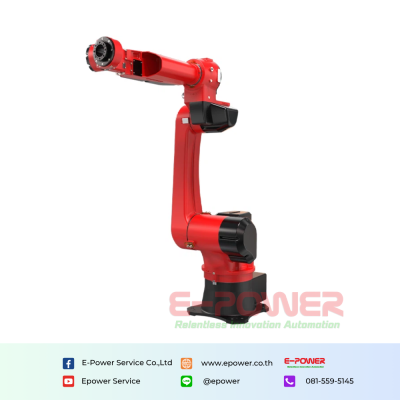

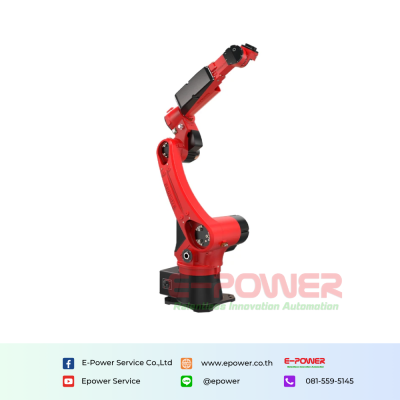

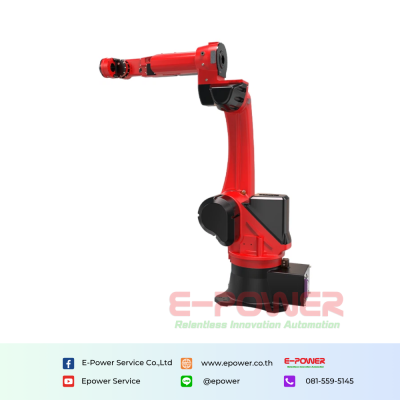

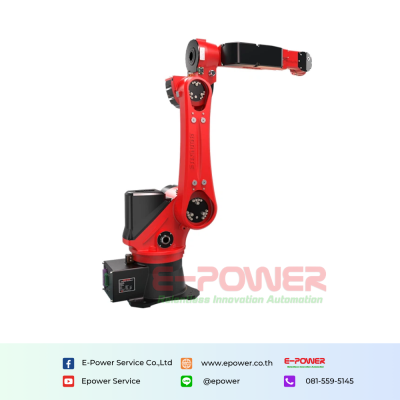

Borunte BRTIRWD1606A Small Flexible Welding Machine
MODEL : BRTIRWD1606A
PRODUCT DETAILS
BRTIRWD1606A type robot is a six-axis robot that developed by BORUNTE for welding application industry. The robot is compact in shape, small in size and light in weight. It's maximum load is 6kg and it's arm span is 1600mm. Wrist hollow structure, more convenient line, more flexible action. The first, second and third joints are equipped with high-precision reducers, and the fourth, fifth and sixth joints are equipped with high-precision gear structures, so the high-speed joint can carry out flexible operations. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accurancy is Âą0.05mm.
Main Specification
Arm Length (mm) : 1600
Repeatability (mm) : Âą0.05
Loading Ability (kg) : 6
Power Source (kVA) : 6.11
Weight (kg) : About 157
| Item | Range | Max.speed | |
| Arm | J1 | ¹165° | 158°/s |
| J2 | -95°/+70° | 143°/s | |
| J3 | ¹80° | 228°/s | |
| Wrist | J4 | ¹155° | 342°/s |
| J5 | -130°/+120° | 300°/s | |
| J6 | ¹360° | 504°/s | |
Applications of Small flexible welding machine
(1) Laser weldin
(2) Spot welding
(3) Material handling and stacking
(4) Packaging and assembly
(5) Polishing
(6) Bending
(7) Cutting / deburring
Advantages of Small flexible welding machine
1. Compact mechanical structure, light volume, small and efficient;
2. Good heat exchange performance and fast heat dissipation;
3. Simple installation, flexible and light, superior performance and easy maintenance;
4. Large transmission speed ratio, large torque and high overload capacity;
5. Stable operation, low noise and durability;
6. Strong applicability, high safety and reliability.
