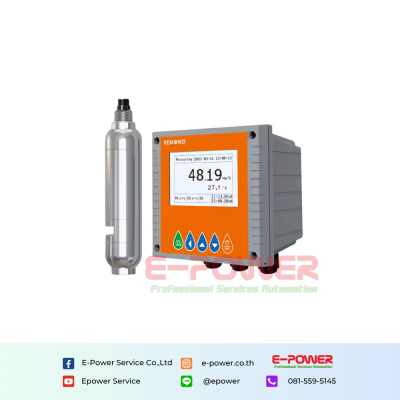

Remond RS485 Chromaticity Sensor for Drinking Water
RS485 Chromaticity Sensor Online Platinum-Cobalt Colorimetric Method Water Color Sensor Probe for Drinking Water
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē

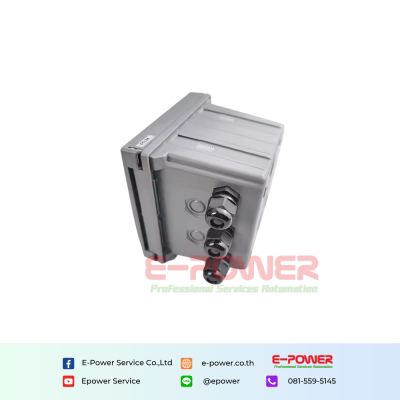

Color meter technical data
| Measuring range | 0-500PCU |
| Resolution | According to the sensor |
| Accuracy | According to the sensor |
| Temp. compensation | Automatic |
| Temp. range | 0 to 50.0°C |
| Ambient temperature range | 0 to +70°C |
| Storage temp. | -20 to +70°C |
| Display | Back light, dot matrix |
| Measure value current output1 | Isolated, 4 to 20mA output , max. load 500ÎĐ |
| Temp. current output 2 | Isolated, 4 to 20mA output , max. load 500ÎĐ |
| Current output accuracy | Âą0.05 mA |
| RS485 | Mod bus RTU protocol |
| Baud rate | 2400/4800/9600/19200/38400/57600/115200 |
| Maximum relay contacts capacity | 5A/250VAC,5A/30VDC |
| Relay delay | 0-120 seconds |
| Language selection | English/traditional Chinese/simplified Chinese |
| Waterproof grade | IP65 |
| Power supply | From 90 to 260 VAC, power consumption < 7 watts |
| Installation | panel/wall/pipe installation |

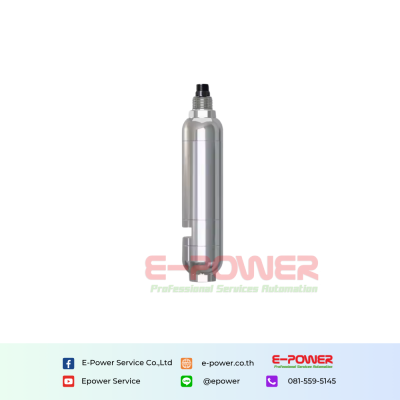

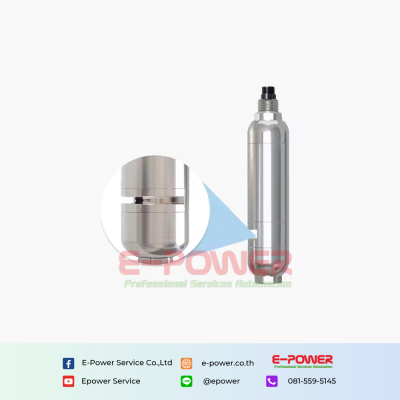

Color sensor technical parameter
| Model | RMD-ISHP105 |
| Measuring range | 0...500PCU |
| Resolution | 0.01 PCU |
| Accuracy | Âą5%FS |
| Temp measure range | 0.0...60.0°C |
| Temperature compensation | Automatic |
| Power supply | DC12V or DC24V |
| Output | 4-20mA(customize) |
| Pressure range | 0-3bar |
| Data communication | RS485(MODBUS-RTU) |
| Shell material | Stainless steel |
| Thread | NPT3/4 |
| Cable length | 5m |
| Protection grade | IP68 |
REMOND
Digital pH sensor
RS485 and 4-20mA output
Sensor
RS485
Remond RS485 Chromaticity Sensor for Drinking Water
Chromaticity Sensor for Drinking Water
Chromaticity Sensor
