Product Description

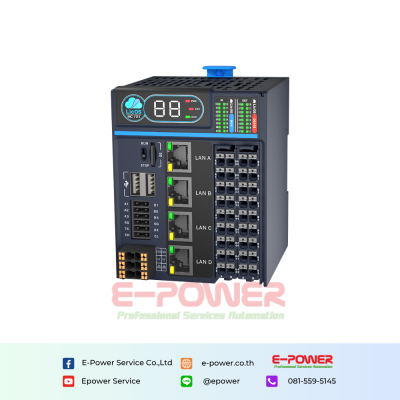

MC700 is a product specially designed for complex motion control systems or equipment with high difficulty and high precision requirements, and it has extremely strong computing power and real-time guarantee.
The body comes with multiple I/O channels, including digital input channels and digital output channels.
The body integrates a standard RJ45 Ethernet port, supports industrial fieldbuses such as EtherCAT, EtherNet/IP, Profinet IO, Modbus TCP, CANopen, etc., and supports IoT communication protocols such as OPC UA and MQTT. The body integrates serial bus interface, supports RS485, CAN and other industrial serial buses, and meets the design requirements of industrial site interconnection.
Specifications
| MC700 Series CPU | |||
| Item | MC701-CPU4A410G1616D | MC701-CPU4A410G1616S | |
| Order number | 70080273 | 70080173 | |
| General | |||
| Product iteration | Fifth-generation product | Fifth-generation product | |
| Power supply | 24V DC±20%(19.2V DC~ 33V DC) | 24V DC±20%(19.2V DC~ 33V DC) | |
| Dimensions (WxHxD) | 82.5*105.0 *85.0mm | 82.5*105.0 *85.0mm | |
| Weight | 380g | 380g | |
| Operating/storage temperature | -20°C～55°C/-40°C～70°C | -20°C～55°C/-40°C～70°C | |
| Relative humidity | 10%~90%RH, no condensation | 10%~90%RH, no condensation | |
| Ingress protection | IP20 | IP20 | |
| Elevation | 3000m | 3000m | |
| Certification Information | CE marked | CE marked | |
| Technical parameters | |||
| Memorizer | procedure | 256M | 256M |
| data | 512M | 512M | |
| Power-down hold | 8 M | 8 M | |
| Expandable storage | Up to 32GB, it can store user programs and data, data updates, user program updates, firmware updates | ||
| Bit instruction processing speed | 2ns | 2ns | |
| Diagnostic LEDs | 1x Power 1x Run 1x Fault | 1x Power 1x Run 1x Fault | |
| RTC | Pull-out battery compartment with replaceable RTC clock battery (user-provided CR1220 battery) | ||
| CPU body Integrated IO | Digital inputs | 16 x transistors (source + drain) support 5kHz high-speed interrupts | 16 x transistors (source + drain) support 5kHz high-speed interrupts |
| Digital output | 16 x transistors (drain), when the application is stopped, it supports zero, hold, and preset functions | 16 x transistors (source), when the application is stopped, it supports zero, hold, and preset functions | |
| Scalability | Main frame modules | 16 | 16 |
| Remote racks | 256 | 256 | |
| Number of modules | 4096 | 4096 | |
| Compatible with IO series | GL200 | GL200 | |
| Hot standby capability | Dual power supply redundancy | ||
| Modules are hot-swappable | |||
| Communication interfaces | Ethernet port | LAN A & LAN B is a 10/1000Mbps Ethernet port, and LAN C & LAN D is a 10/100Mbps EtherCAT port | LAN A & LAN B is a 10/1000Mbps Ethernet port, and LAN C & LAN D is a 10/100Mbps EtherCAT port |
| Serial | 3xRS485； 1xRS232 | 3xRS485； 1xRS232 | |
| CAN port | 1 | 1 | |
| Communication protocols | Ethernet | TCP/IP，UDP，OPC UA Server，MQTT，Socket | CP/IP，UDP，OPC UA Server，MQTT，Socket |
| EtherCAT | |||
| Ethernet/lP | EtherNet/IP Scanner，EtherNet/IP Adapter | EtherNet/IP Scanner，EtherNet/IP Adapter | |
| Profinet/IO | Master/Slave | Master/Slave | |
| CANopen | host | host | |
| Modbus TCP | Master/Slave | Master/Slave | |
| Modbus RTU | Master/Slave | Master/Slave | |
| Modbus UDP | Master/Slave | Master/Slave | |
| Freedom Agreement | Serial Port Freedom Protocol | Serial Port Freedom Protocol | |
| Transparent network transmission | Serial network transparent transmission | Serial network transparent transmission | |
| EtherCAT dual masters | In the tank | In the tank | |
| EtherCAT master redundancy | In the tank | In the tank | |
| EtherCAT motion control parameters | 128 EtherCAT bus spindles | 128 EtherCAT bus spindles | |
| Operating system | Linux | Linux | |
| Programming environment | Smart Control V5.0 | Smart Control V5.0 | |
| Programming language | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | |
| Visualization | Webvisu (Web Visualization) | Webvisu (Web Visualization) | |
