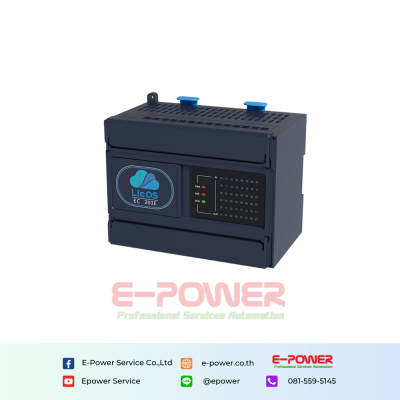

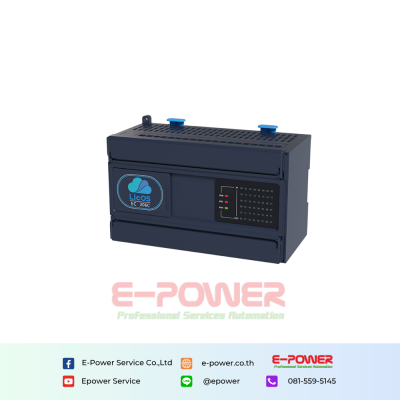

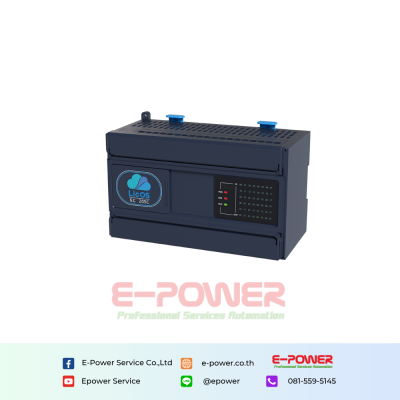

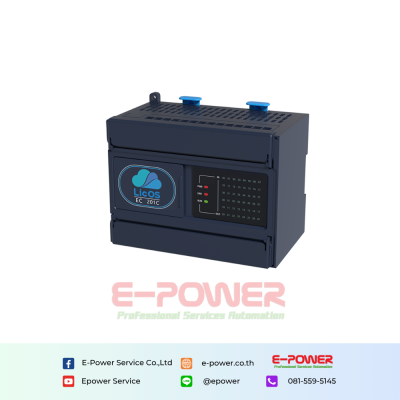

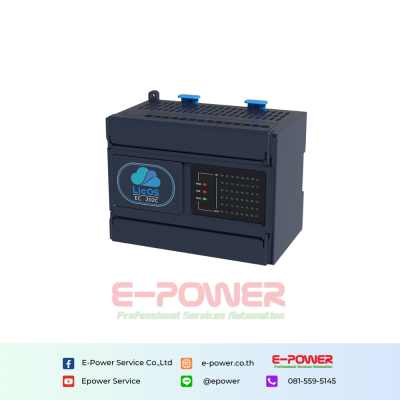

LicOS EC200 series PLC

Small PLC. Supports 16-way high-speed interrupts. Highly compact. Abundant peripheral interfaces.

หมวดหมู่ : CODESYS , LicOS PLC

แบรนด์ :LicOS

รายละเอียดสินค้า

ดาวน์โหลด

Product Description

EC200 series CPU is a high-performance small PLC, giving full play to the advantages of small computers, providing users with solutions for small control systems with great value for money.

The body comes with multiple IO channels, including digital input channel, digital output channel, analog input channel, analog output channel, high-speed pulse output and high-speed counting channel, which is especially suitable for applications under simple processes and small systems.

The body integrates standard RJ45 Ethernet port, supports industrial fieldbuses such as EtherCAT, EtherNetIP, Profinet IO, Modbus TCP, CANopen, etc., and supports IoT communication protocols such as OPC UA and MQTT, and integrates serial bus interface, supporting industrial serial buses such as RS485 and RS232 to meet the design requirements of industrial field interconnection.

EC200 series PLC
Product model		EC202E-CPU1A410G1614R0A	EC202C-CPU1A410G1614R0A	EC203E-CPU1A410G1608R4A	EC203C-CPU1A410G1608R4A	EC205E-CPU1A410G2422R0A	EC205C-CPU1A410G2422R0A	EC206E-CPU1A410G2416R4A	EC206C-CPU1A410G2416R4A
Order number		20050123	20050223	20050124	20050224	20050126	20050226	20050127	20050227
General
Product iteration		Fifth-generation product	Fifth-generation product	Fifth-generation product	Fifth-generation product	Fifth-generation product	Fifth-generation product	Fifth-generation product	Fifth-generation product
Power supply		220V AC(85V AC~265V AC)	24V DC(19.2V DC~33V DC)	220V AC(85V AC~265V AC	24V DC(19.2V DC~33V DC)	220V AC(85V AC~265V AC)	24V DC(19.2V DC~33V DC)	220V AC(85V AC~265V AC)	24V DC(19.2V DC~33V DC)
Dimensions (WxHxD)		144x105x86.5mm	144x105x86.5mm	144x105x86.5mm	144x105x86.5mm	180.3x105x86.5mm	180.3x105x86.5mm	180.3x105x86.5mm	180.3x105x86.5mm
Weight		740g	585g	720g	875g	720g	575g	875g	720g
Operating/storage temperature		-20°C ～55°C/-40°C ～70°C	-20°C ～55°C/-40°C ～70°C	-20°C ～55°C/-40°C ～70°C	-20°C ～55°C/-40°C ～70°C	-20°C ～55°C/-40°C ～70°C	-20°C ～55°C/-40°C ～70°C	-20°C ～55°C/-40°C ～70°C	-20°C ～55°C/-40°C ～70°C
Relative humidity		10%~90%RH, no condensation	10%~90%RH, no condensation	10%~90%RH, no condensation	10%~90%RH, no condensation	10%~90%RH, no condensation	10%~90%RH, no condensation	10%~90%RH, no condensation	10%~90%RH, no condensation
Ingress protection		IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20
Elevation		3000m	3000m	3000m	3000m	3000m	3000m	3000m	3000m
Certification Information		CE marked	CE marked	CE marked	CE marked	CE marked	CE marked	CE marked	CE marked
Technical parameters
Memorizer	procedure	4M	4M	4M	4M	8M	8M	8M	8M
	data	8M	8M	8M	8M	16M	16M	16M	16M
	Power-down hold	512K	512K	512K	512K	512K	512K	512K	512K
	Expandable storage	Up to 32GB, it can store user programs and data, data updates, user program updates, firmware updates
Bit instruction processing speed		4ns	4ns	4ns	4ns	4ns	4ns	4ns	4ns
Diagnostic LEDs		1x Power 1x Run 1x Fault	1x Power 1x Run 1x Fault	1x Power 1x Run 1x Fault	1x Power 1x Run 1x Fault	1x Power 1x Run 1x Fault	1x Power 1x Run 1x Fault	1x Power 1x Run 1x Fault	1x Power 1x Run 1x Fault
RTC		The pull-out battery compartment can be used to replace the RTC clock battery
The CPU body has integrated I/O	Digital inputs	16x Transistors (Source + Drain)	16x Transistors (Source + Drain)	16x Transistors (Source + Drain)	16x Transistors (Source + Drain)	24x Transistors (Source + Drain)	24x Transistors (Source + Drain)	24x Transistors (Source + Drain)	24x Transistors (Source + Drain)
	Digital output	14x relays	14x relays	8x relays	8x relays	22x relays	22x relays	16x relays	16x relays
	Analog inputs	/	/	2x voltage/current (voltage: 0~5V, 0~10V; Current: 0~20mA, 4~20mA)	2x voltage/current (voltage: 0~5V, 0~10V; Current: 0~20mA, 4~20mA)	/	/	2x voltage/current (voltage: 0~5V, 0~10V; Current: 0~20mA, 4~20mA)	2x voltage/current (voltage: 0~5V, 0~10V; Current: 0~20mA, 4~20mA)
	Analog outputs	/	/	2x voltage/current (voltage: 0~5V, 0~10V; Current: 0~20mA, 4~20mA)	2x voltage/current (voltage: 0~5V, 0~10V; Current: 0~20mA, 4~20mA)	/	/	2x voltage/current (voltage: 0~5V, 0~10V; Current: 0~20mA, 4~20mA)	2x voltage/current (voltage: 0~5V, 0~10V; Current: 0~20mA, 4~20mA)
Scalability	Main frame modules	8	8	8	8	8	8	8	8
	Remote racks	32	32	32	32	32	32	32	32
	Compatible with IO series	GL200	GL200	GL200	GL200	GL200	GL200	GL200	GL200
Hot standby capability	Dual power supply redundancy	/	/	/	/	/	/	/	/
Hot standby capability	Modules are hot-swappable	In the tank	In the tank	In the tank	In the tank	In the tank	In the tank	In the tank	In the tank
Communication interfaces	Ethernet port	LAN A is a 10/100Mbp Ethernet port	LAN A is a 10/100Mbp Ethernet port	LAN A is a 10/100Mbp Ethernet port	LAN A is a 10/100Mbp Ethernet port	LAN A is a 10/100Mbp Ethernet port	LAN A is a 10/100Mbp Ethernet port	LAN A is a 10/100Mbp Ethernet port	LAN A is a 10/100Mbp Ethernet port
	Serial	3xRS485； 1xRS232	3xRS485； 1xRS232	3xRS485； 1xRS232	3xRS485； 1xRS232	3xRS485； 1xRS232	3xRS485； 1xRS232	3xRS485； 1xRS232	3xRS485； 1xRS232
	CAN port	1	1	1	1	1	1	1	1
Communication protocols	Ethernet	TCP/IP，UDP，OPC UA Server，MQTT，Socket	CP/IP，UDP，OPC UA Server，MQTT，Socket	CP/IP，UDP，OPC UA Server，MQTT，Socket	TCP/IP，UDP，OPC UA Server，MQTT，Socket	TCP/IP，UDP，OPC UA Server，MQTT，Socket	TCP/IP，UDP，OPC UA Server，MQTT，Socket	TCP/IP，UDP，OPC UA Server，MQTT，Socket	TCP/IP，UDP，OPC UA Server，MQTT，Socket
	EtherCAT
	Ethernet/lP	EtherNet/IP Scanner，EtherNet/IP Adapter	EtherNet/IP Scanner，EtherNet/IP Adapter	EtherNet/IP Scanner，EtherNet/IP Adapter	EtherNet/IP Scanner，EtherNet/IP Adapter	EtherNet/IP Scanner，EtherNet/IP Adapter	EtherNet/IP Scanner，EtherNet/IP Adapter	EtherNet/IP Scanner，EtherNet/IP Adapter	EtherNet/IP Scanner，EtherNet/IP Adapter
	Profinet/IO	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave
	CANopen	host	host	host	host	host	host	host	host
	Modbus TCP	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave
	Modbus RTU	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave
	Modbus UDP	From	From	From	From	From	From	From	From
	Freedom Agreement	Serial Port Freedom Protocol	Serial Port Freedom Protocol	Serial Port Freedom Protocol	Serial Port Freedom Protocol	Serial Port Freedom Protocol	Serial Port Freedom Protocol	Serial Port Freedom Protocol	Serial Port Freedom Protocol
	Transparent network transmission	Serial network transparent transmission	Serial network transparent transmission	Serial network transparent transmission	Serial network transparent transmission	Serial network transparent transmission	Serial network transparent transmission	Serial network transparent transmission	Serial network transparent transmission
EtherCAT motion control parameters		/	/	/	/	/	/	/	/
Operating system		Linux	Linux	Linux	Linux	Linux	Linux	Linux	Linux
Programming environment		Smart Control V5.0	Smart Control V5.0	Smart Control V5.0	Smart Control V5.0	Smart Control V5.0	Smart Control V5.0	Smart Control V5.0	Smart Control V5.0
Programming language		Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC)	Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC)	Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC)	Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC)	Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC)	Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC)	Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC)	Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC)
WebVisu
