Product Description
EC300 series CPU is a medium-sized PLC with rich communication interfaces and strong scalability, providing a stable, reliable and cost-effective solution for small and medium-sized equipment and systems in the field of process control.
The body comes with multiple IO channels, including digital input channels and digital output channels.
The body integrates a standard RJ45 Ethernet port, supports industrial fieldbuses such as EtherCAT, EtherNet/IP, Profinet IO, Modbus TCP, CANopen, etc., and supports IoT communication protocols such as OPC UA and MQTT. The body integrates serial bus interface, supports RS485, CAN and other industrial serial buses, and meets the design requirements of industrial site interconnection.

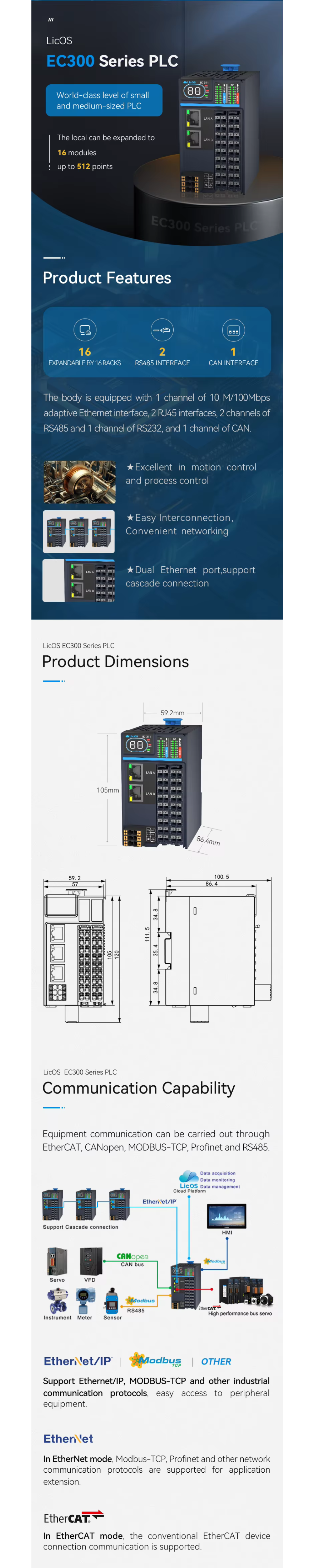

Product Features
- Ethernet speed reaches 10m/100Mbps self-adaptation.
- A standard backplane bus is integrated locally. The body supports up to 16 I/O modules (16 * 32 = 512 points), and the head and tail refresh time is less than 5ms.
- The body integrates 16 digital inputs (source/drain type) and 16 digital outputs (source type).
- Maximum capacity of IO point: 4096 digital channels and 1024 analog channels.
- The switch network port can be configured as Modbus TCP or Profinet, EtherNET/IP according to the configuration.
- It can indicate the normal operation of the program, the stop of the program, the system error indication and the bus status indication through the CPU panel.
| EC300 series PLC | |||||||||
| Product model | EC310-CPU1A310G1616D | EC310-CPU1A310G1616S | EC311- CPU2A310G1616D | EC311- CPU2A310G1616S | EC312-CPU3A310G1616D | EC312- CPU3A310G1616S | EC321-CPU3S310G1616D | EC321-CPU3S310G1616S | |
| Order number | 30050234 | 30050134 | 30050235 | 30050135 | 30050236 | 30050136 | 30050237 | 30050137 | |
| General | |||||||||
| Product iteration | Fifth-generation product | Fifth-generation product | Fifth-generation product | Fifth-generation product | Fifth-generation product | Fifth-generation product | Fifth-generation product | Fifth-generation product | |
| Power supply | 24V DC ±20%(19.2V DC~ 33V DC) | 24V DC(19.2V DC~33V DC) | 24V DC ±20%(19.2V DC~ 33V DC) | 24V DC(19.2V DC~33V DC) | 24V DC ±20%(19.2V DC~ 33V DC) | 24V DC ±20%(19.2V DC~ 33V DC) | 24V DC ±20%(19.2V DC~ 33V DC) | 24V DC(19.2V DC~33V DC) | |
| Dimensions (WxHxD) | 60x105x85 mm | 60x105x85 mm | 60x105x85 mm | 60x105x85 mm | 60x105x85 mm | 60x105x85 mm | 60x105x85 mm | 60x105x85 mm | |
| Weight | Approximately 205 g | Approximately 205 g | Approximately 256 g | Approximately 256 g | Approximately 305 g | Approximately 305 g | Approximately 305 g | Approximately 305 g | |
| Operating ambient temperature | -20°C ～55°C | -20°C ～55°C | -20°C ～55°C | -20°C ～55°C | -20°C ～55°C | -20°C ～55°C | -20°C ～55°C | -20°C ～55°C | |
| Humidity of the working environment | 10%~90%RH, no condensation | 10%~90%RH, no condensation | 10%~90%RH, no condensation | 10%~90%RH, no condensation | 10%~90%RH, no condensation | 10%~90%RH, no condensation | 10%~90%RH, no condensation | 10%~90%RH, no condensation | |
| Ingress protection | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | |
| Elevation | Below 3000m | Below 3000m | Below 3000m | Below 3000m | Below 3000m | Below 3000m | Below 3000m | Below 3000m | |
| Certification Information | CE marked | CE marked | CE marked | CE marked | CE marked | CE marked | CE marked | CE marked | |
| Technical parameters | |||||||||
| Memorizer | procedure | 16M | 16M | 16M | 16M | 16M | 16M | 16M | 16M |
| data | 32M | 32M | 32M | 32M | 32M | 32M | 32M | 32M | |
| Power-down hold | 1 M | 1 M | 1 M | 1 M | 1 M | 1 M | 1 M | 1 M | |
| Expandable storage | Up to 32GB, it can store user programs and data, data updates, user program updates, firmware updates | ||||||||
| Bit instruction processing speed | 4ns | 4ns | 4ns | 4ns | 4ns | 4ns | 4ns | 4ns | |
| Diagnostic LEDs | 1x Power 1x Run 1x Fault | 1x Power 1x Run 1x Fault | 1x Power 1x Run 1x Fault | 1x Power 1x Run 1x Fault | 1x Power 1x Run 1x Fault | 1x Power 1x Run 1x Fault | 1x Power 1x Run 1x Fault | 1x Power 1x Run 1x Fault | |
| RTC | Pull-out battery compartment with replaceable RTC clock battery (user-provided CR1220 battery) | ||||||||
| The CPU body has integrated I/O | Digital inputs | 16x transistors (source + drain) with support for high-speed interrupts | 16x transistors (source + drain) with support for high-speed interrupts | 16x transistors (source + drain) with support for high-speed interrupts | 16x transistors (source + drain) with support for high-speed interrupts | 16x transistors (source + drain) with support for high-speed interrupts | 16x transistors (source + drain) with support for high-speed interrupts | 16x transistors (source + drain) with support for high-speed interrupts | 16x transistors (source + drain) with support for high-speed interrupts |
| Digital output | 16x transistors (leak), when the application is stopped, it supports clear, hold, and preset functions | 16x transistors (source), when the application is stopped, it supports zero, hold, and preset functions | 16x transistors (leak), when the application is stopped, it supports clear, hold, and preset functions | 16x transistors (source), when the application is stopped, it supports zero, hold, and preset functions | 16x transistors (leak), when the application is stopped, it supports clear, hold, and preset functions | 16x transistors (source), when the application is stopped, it supports zero, hold, and preset functions | 16x transistors (leak), when the application is stopped, it supports clear, hold, and preset functions | 16x transistors (source), when the application is stopped, it supports zero, hold, and preset functions | |
| Scalability | Remote racks | 64 | 64 | 64 | 64 | 64 | 64 | 64 | 64 |
| Number of modules | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 | |
| Compatible with IO series | GL200 series IO | GL200 series IO | GL200 series IO | GL200 series IO | GL200 series IO | GL200 series IO | GL200 series IO | GL200 series IO | |
| Hot standby capability | Dual power supply redundancy | ||||||||
| Modules are hot-swappable | |||||||||
| EtherCAT master redundancy | / | / | / | / | / | / | / | / | |

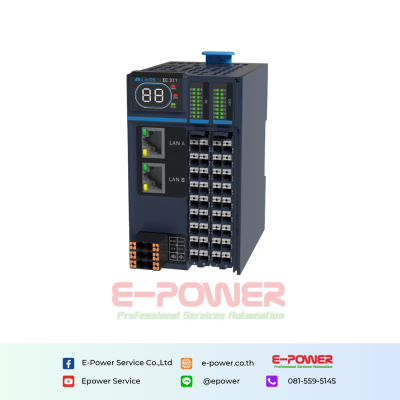

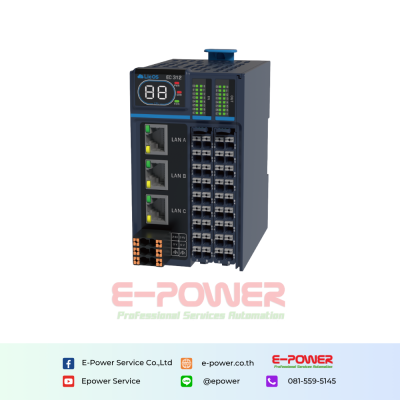

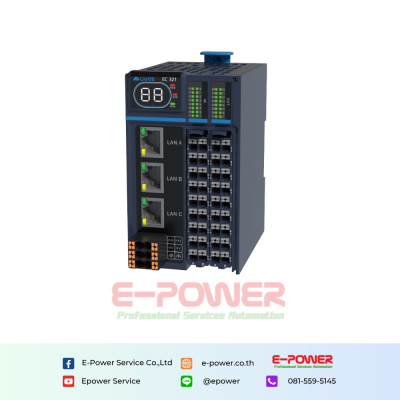

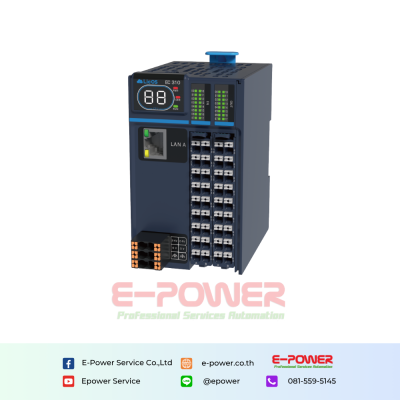

| Communication interfaces | Ethernet port | LAN A is a 10/100Mbp Ethernet port | LAN A is a 10/100Mbp Ethernet port | LAN A is a 10/100Mbp Ethernet port, LAN B is a 10/100Mbp EtherCAT port | LAN A is a 10/100Mbp Ethernet port, LAN B is a 10/100Mbp EtherCAT port | LAN A is a 10/100Mbp Ethernet port, LAN B is a 10/100Mbp Ethernet port, LAN C is a 10/100Mbp EtherCAT port | LAN A is a 10/100Mbp Ethernet port, LAN B is a 10/100Mbp Ethernet port, LAN C is a 10/100Mbp EtherCAT port | LAN A & LAN B is a 10/100Mbps switch network port. LAN C is a 10/100Mbps EtherCAT port | LAN A & LAN B is a 10/100Mbps switch network port. LAN C is a 10/100Mbps EtherCAT port |
| Serial | 2xRS485,1xRS232 | 2xRS485,1xRS232 | 2xRS485,1xRS232 | 2xRS485,1xRS232 | 2xRS485,1xRS232 | 2xRS485,1xRS232 | 2xRS485,1xRS232 | 2xRS485,1xRS232 | |
| CAN port | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Communication protocols | Ethernet | TCP/IP，UDP，OPC UA Server，MQTT，Socket | CP/IP，UDP，OPC UA Server，MQTT，Socket | CP/IP，UDP，OPC UA Server，MQTT，Socket | TCP/IP，UDP，OPC UA Server，MQTT，Socket | TCP/IP，UDP，OPC UA Server，MQTT，Socket | TCP/IP，UDP，OPC UA Server，MQTT，Socket | TCP/IP，UDP，OPC UA Server，MQTT，Socket | TCP/IP，UDP，OPC UA Server，MQTT，Socket |
| EtherCAT | / | / | |||||||
| Ethernet/lP | EtherNet/IP Scanner，EtherNet/IP Adapter | EtherNet/IP Scanner，EtherNet/IP Adapter | EtherNet/IP Scanner，EtherNet/IP Adapter | EtherNet/IP Scanner，EtherNet/IP Adapter | EtherNet/IP Scanner，EtherNet/IP Adapter | EtherNet/IP Scanner，EtherNet/IP Adapter | EtherNet/IP Scanner，EtherNet/IP Adapter | EtherNet/IP Scanner，EtherNet/IP Adapter | |
| Profinet/IO | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | |
| CANopen | host | host | host | host | host | host | host | host | |
| Modbus TCP | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | |
| Modbus RTU | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | |
| Modbus UDP | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | Master/Slave | |
| Freedom Agreement | Serial Port Freedom Protocol | Serial Port Freedom Protocol | Serial Port Freedom Protocol | Serial Port Freedom Protocol | Serial Port Freedom Protocol | Serial Port Freedom Protocol | Serial Port Freedom Protocol | Serial Port Freedom Protocol | |
| Transparent network transmission | Serial network transparent transmission | Serial network transparent transmission | Serial network transparent transmission | Serial network transparent transmission | Serial network transparent transmission | Serial network transparent transmission | Serial network transparent transmission | Serial network transparent transmission | |
| Motor control ability | / | / | / | / | / | / | / | / | |
| Operating system | Linux | Linux | Linux | Linux | Linux | Linux | Linux | Linux | |
| Programming environment | Smart Control V5.0 | Smart Control V5.0 | Smart Control V5.0 | Smart Control V5.0 | Smart Control V5.0 | Smart Control V5.0 | Smart Control V5.0 | Smart Control V5.0 | |
| Programming language | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | Support IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | |
| WebVisu | |||||||||
