LicOS GL100 series IO Module
Overload protection.
Short-circuit protection.
Multi-protocol support.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Product Description

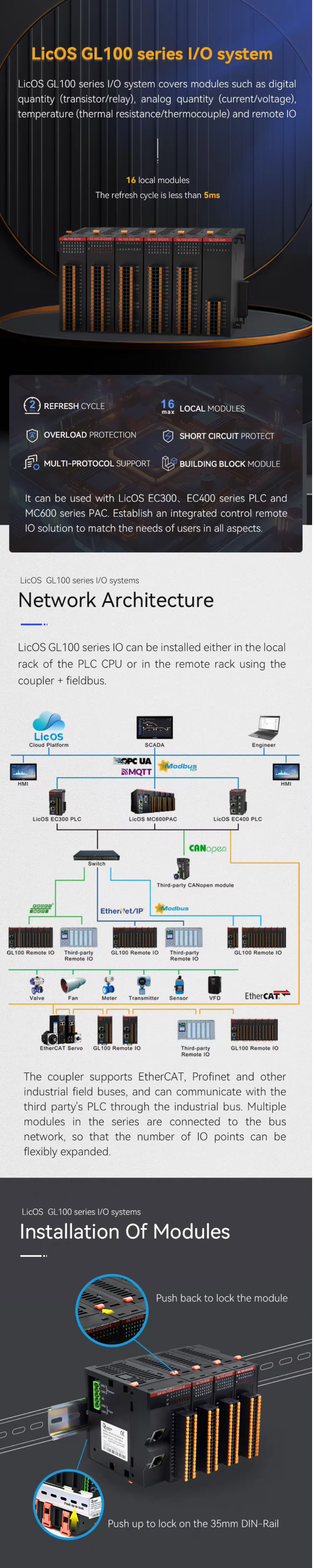

The LicOS GL100 series IO system covers digital (transistor/relay), analog (current/voltage), temperature (RTD/thermocouple) and remote IO modules, with up to 16 local modules with a refresh cycle of less than 5ms, which can be used with LicOS EC300 series PLC, LicOS EC400 series PLC and LicOS MC600 series PAC to establish an integrated control remote IO solution to meet the all-round needs of users.
Product Features
· 32 channel NPN output module
· Voltage range15~32VDC,single channel 500mA current output
· Overcurrent protection
· System side and field side are isolated
· Operation, fault and channel input indication
| Basic parameters of GL100 series | ||||||||
| Type | DI module | DO module | DIO module | |||||

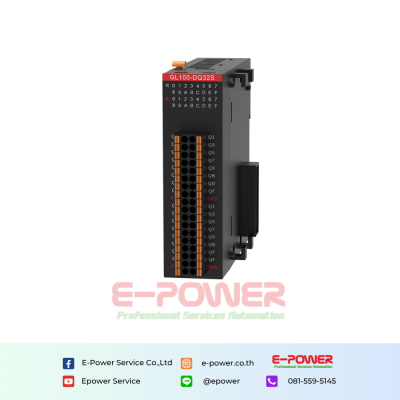

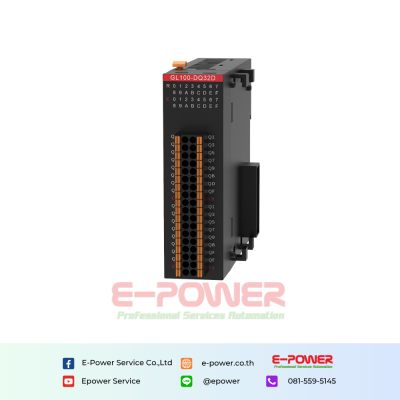

| Product model | GL100-DI32 | GL100-DI16 | GL100-DC32D | GL100-DQ16D | GL100-DQ32S | GL100-DQ16S | GL100-DQ16R | GL100-DIO32D |
| Input/output type | Digital inputs | Digital output | ||||||
| Contact type | Transistors (Source/Drain) | Transistor (drain type) | Transistor (drain type) | Transistor (source) | Transistor (source) | Relays | Transistors (input source/drain, output drain) | |
| Number of input and output channels | 32 | 16 | 32 | 16 | 32 | 16 | 16 | 16 channel input / 16 channel output |
| Power consumption on the system side | 5VDC/30mA (internally self-powered) | |||||||
| Turn-on current / maximum load current | 5mA | 0.5A | AC 3A/250VAC DC 3A/30VDC | Input 5mA, output 0.5A/channel | ||||
| On Response time | 0.5ms or less | 0.5ms or less | / | 0.5ms or less | ||||
| Off response time | 0.5ms or less | 0.5ms or less | / | 0.5ms or less | ||||
| Action display | When the optocoupler is driven, the input indicator lights up | When the optocoupler is driven, the output indicator lights up | When the optocoupler is driven, the input and output indicators are on | |||||
| Isolation method | Each channel is opto-isolated, and the isolation withstand voltage 3KVrms | |||||||
| Input and output impedance | 7.2KÎĐ | / | 7.2KÎĐ | |||||
| ON status | 17-30VDC | / | 17-30VDC | |||||
| OFF state | 3-8VDC | / | -3-8VDC | |||||
| Overload protection | / | 500mA overcurrent protection | / | 500mA overcurrent protection | ||||
