LicOS S3 Series Servo Drives
Product Description

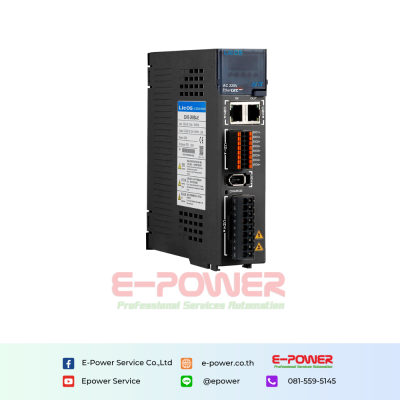

The S3 series of high-performance servo drives are 20% smaller than the S2 and reduce the cabinet size, which is especially suitable for applications with very tight installation space or fuselage electrical cabinets.

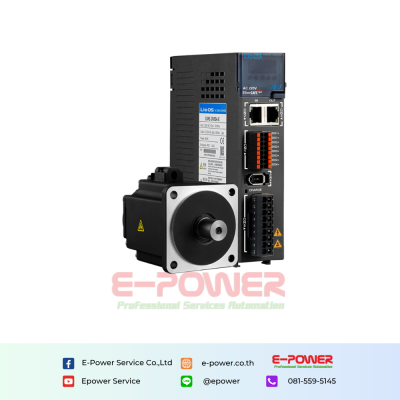

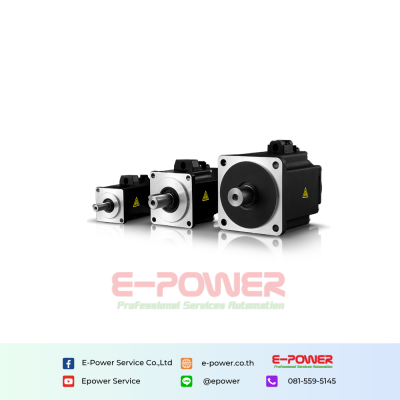

The S3 high-performance servo drive is perfectly combined with the servo motors of the LSM series for a wide range of drive applications, enabling arbitrary switching between position, speed and torque control. Through optimized design, the S3 servo system can have excellent performance, rich functions, stable and reliable, convenient and flexible user experience.
Product Features
1. Compact size design: 20% smaller than the previous generation. Can often EMC design;
2. Fast and convenient panel operation: integrated rigid table, debugging is more simple square, integrated point movement, self-learning functions, information diagnostic street;
3. Fast and convenient terminal wiring: convenient wiring, saving time for on-site installation and maintenance.
| Use environment | |
| Storage temperature | -20~65°C |
| Shipping temperature | -20~70°C |
| Operating temperature | 0~45°C |
| Relative air humidity | Below 90% RH, no condensation |
| Vibration resistance | 4.9m/s² |
| Impact strength | 19.6m/s² |
| Use altitude | Below 1000m; When the altitude is more than 1000m, the derating is 1.1% for every 100m of elevation, and the maximum altitude is 2000m. |
| Working environment | No corrosive, no flammable gas, no oil droplets, no conductive dust, no dust |
| Degree of protection | IP20 |
| Flammability rating | V0 |
| Voltage | |
| Range | AC200V~AC240V |
| Frequency | 50/60Hz ±5% |
| PWM frequency/control mode | 8K/sine wave current drive |
| IO | |
| DI | 5*D1, refresh cycle 200μs |
| DO | 4*DO, single channel maximum withstand voltage DC30V, maximum continuous current DC 50mA |
| Communication | |
| EtherCAT | COE (PDO, SDO), DC - distributed clock, synchronous periodic jitter less than 1us |
| Communication distance | UP TO 100M (IDEAL ENVIRONMENT, EXCELLENT CABLE MATERIAL) |
| Safe | |
| Safe Torque Off Standard * | IEC 61800-5-2, SIL3 Ple |
| Safe stop standards | |
| Motor connection | |
| Output voltage | AC 0~220V |
| Output frequency | 0~600Hz |
| Motor types are supported | Three-phase AC synchronous servo motor |
| Ontology encoder | Communication 17-bit/23-bit encoder |
| Maximum cable length | 60m |
| * Only customized models are supported, please consult technical customer service for details. | |
Model | 060PA | 100SA | 120SA | 120PA |
| Power supply | AC 200V ~ AC 240V | AC 200V ~ AC 240V | AC 200V ~ AC 240V | AC 200V ~ AC 240V |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Power | 200 W | 400 W | 600 W | 750 W |
| Single-phase input current | 2.5 Arms | 4.1 Arms | 5.2 Arms | 6.1 Arms |
| Rated output current | 1.8 Arms | 2.8 Arms | 3.5 Arms | 4.2 Arms |
| Maximum output current | 7.2 Arms | 9.8 Arms | 10.5 Arms | 12.6 Arms |
| Overload factor | 400% | 350% | 300% | 300% |
| Built-in braking resistor | X | X | 40W,80Ω | 40W,80Ω |
| The minimum resistance of the external braking resistor | 50Ω | 50Ω | 50Ω | 50Ω |
| Dimensions W*H*D(mm) | 40x175x150 | 40x175x150 | 40x175x150 | 40x175x150 |
| Dimensions | C1 | C1 | C2 | C2 |
