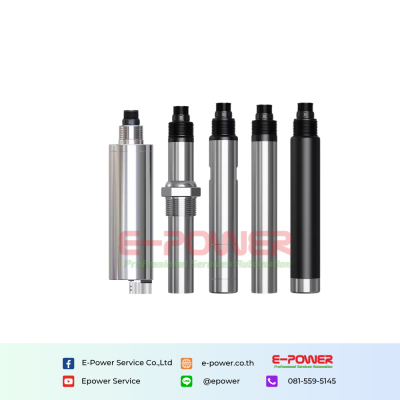

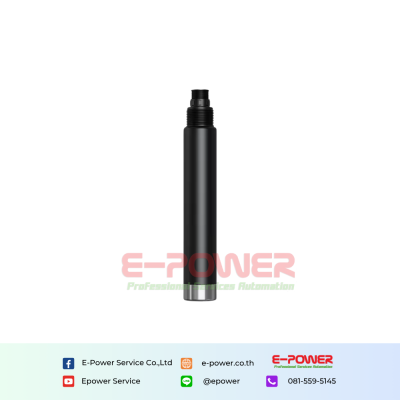

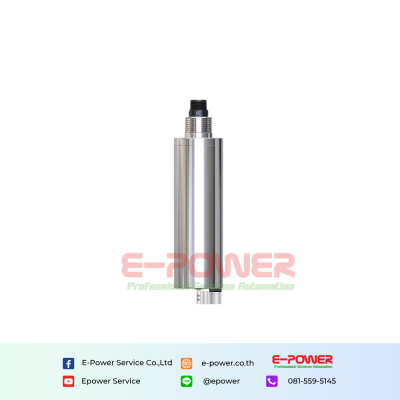

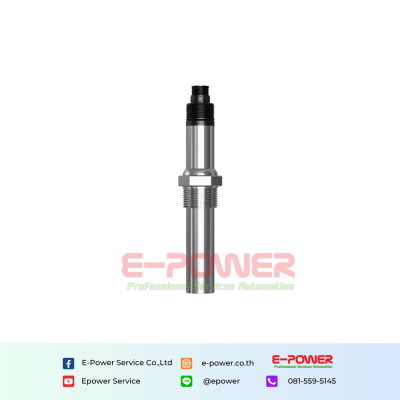

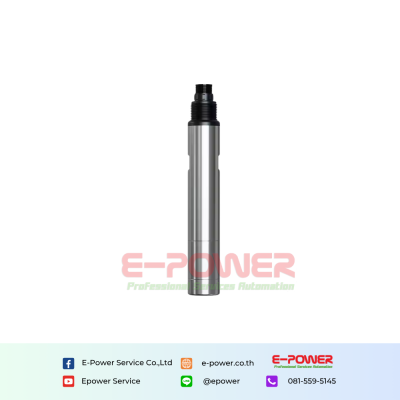

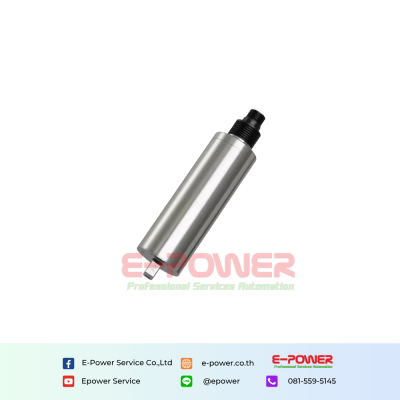

Remond RS485 OEM Turbidity Sensor

Online Turbidity Sensor RS485 Industrial Turbidity Meter Analyzer OEM Turbidity Sensor Probe

āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Product Description

The turbidity sensor adopts the principle of 90° scattered light.The infrared light sent by the transmitter on the sensor is absorbed, reflected and scattered by the measured object during the transmission process, and only a small part of the light can irradiate the detector. The concentration of the measured sewage has a certain relationship, so the concentration of the sewage can be calculated by measuring the transmittance of the transmitted light.

Turbidity sensor probe features:

  • 90° scattered light principle
  • Power supply DC12V,DC24V
  • Support RS-485, Modbus/RTU protocol
  • 4-20mA output signal (customizable)
  • IP68 protection, waterproof
  • Quick response, high precision
  • 7*24 hours continuous monitoring
  • Easy installation and easy operation
  • Different measuring range can meet different requirements

Application:

The turbidity sensor suitable for monitoring in drinking water, sewage treatment plants, water plants, water stations, surface water, river monitoring, secondary water supply,metallurgy, chemical industry and other fields.

Oil in water sensor  technical data

PrincipleRMD-ISST-BR105RMD-ISST-X2RMD-ISST-X3
Measuring range0...100NTU;0...4000NTU0...4000NTU0...4000NTU
Principle90° scattered light90° scattered light90° scattered light
Accuracy Âą5%FSÂą5%FSÂą5%FS
Resolution 0.010.010.01
Temperature range0...60°C0...60°C0...60°C
Calibration methodFormazin SolutionFormazin SolutionFormazin Solution
Power supplyDC12V or DC24VDC12V or DC24VDC12V or DC24V
Output signalRS485, 4-20mA(customize)RS485, 4-20mA(customize)RS485, 4-20mA(customize)
Shell materialSS 316SS 316SS 316
Pressure range0...3bar0...3bar0...3bar
ThreadNPT3/4G3/4, G1G3/4
Electrical connectionPin typePin typePin type
Self-cleaning functionYESNONO
InstallationImmersion typeImmersion typeImmersion type
Cable length5m or customize5m or customize5m or customize
Protection gradeIP68IP68IP68
