Description

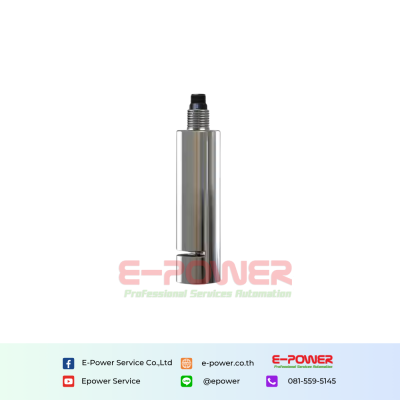

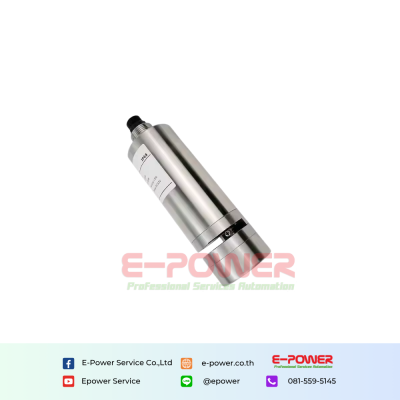

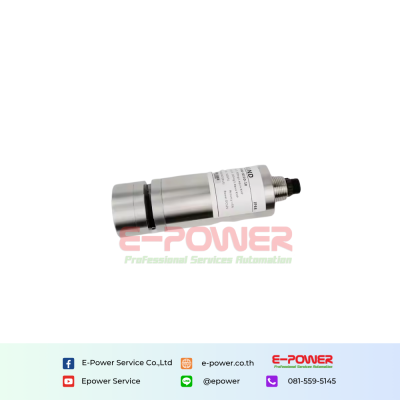

The COD sensor is a new generation of environmentally friendly COD/TOC sensor that requires no reagents, no pollution, and is more economical and environmentally friendly. Small size and easy installation, water quality monitoring is available online. Automatic compensation for turbidity disturbances, with automatic cleaning device, excellent stability even for long-term monitoring.
Measuring principle
Many organic substances dissolved in water absorb ultraviolet light. Therefore, the total amount of organic pollutants in water can be measured by measuring the absorption of these organic substances by ultraviolet light at a wavelength of 254 nm. COD sensors use two light sources, one 254nm ultraviolet light and one 550nm infrared light, which can automatically compensate the optical path attenuation and turbidity effects, thus achieving more stable and reliable measurement values.
COD sensor Feature
COD sensor datasheet
Parameter | Specification |
Principle | UV245 absorption method |
COD Measuring range | 0 to 500mg/L equiv.KHP |
COD Resolution | 0.01mg/L equiv.KHP |
COD Accuracy | <5% equiv.KHP |
TOC measure range | 0.3 to 150mg/L equiv.KHP |
TOC Resolution | 0.1mg/L equiv.KHP |
TOC Accuracy | <5% equiv.KHP |
Temperature range | 0 ~ 45°C |
Power Supply | DC12V, current <50mA (when there is no cleaning brush) |
Output signal | RS485,MODBUS protocol |
Calibration method | 1 or 2 point calibration |
Maximum pressure | 1bar |
Shell material | Stainless steel |
Cable length | 5M (default) |
Response time | 10s |
Protection grade | IP68 |
