Remond RS485 ORP Redox Sensor for Water Quality Testing
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

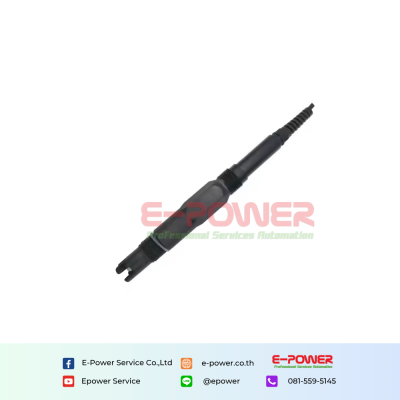

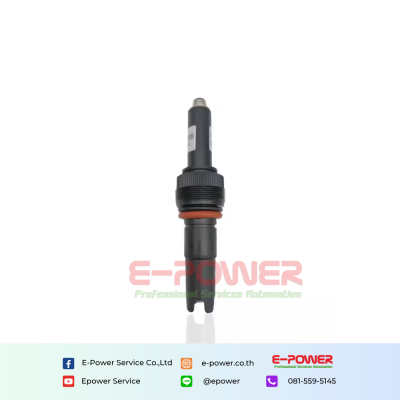

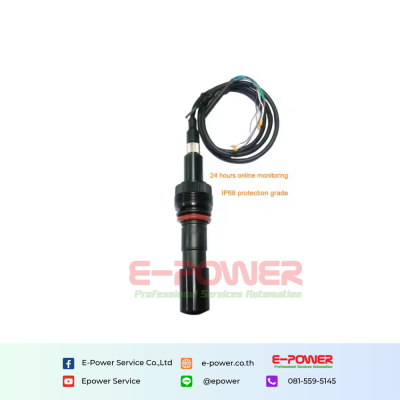

Digital ORP Electrode 4-20mA ORP Probe RS485 ORP Redox Sensor for Water Quality Testing
āđāļāļĢāļāļāđ: Remond
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features:
- Power supply DC9-30V
- 4-20mA output signal
- Support RS-485, Modbus/RTU protocol
- IP68 protection, waterproof
- Quick response, high precision
- 7*24 hours online continuous monitoring
- Easy installation and easy operation
- Different measuring range can meet different requirements
Application:
Suitable for monitoring in drinking water, sewage treatment plants, water plants, water stations, surface water, river monitoring, secondary water supply,metallurgy, chemical industry and other fields.
Digital ORP probe technical data
| Measuring range | -2000...2000mV |
| Temp measure range | 0...60°C |
| Pressure range | 0...3bar |
| Material | ABS,PPS |
| Current output | 4...20mA |
| Data communication | Rs485(MODBUS-RTU) |
| Power supply | DC12V, DC24V |
| Cable length | 5m, pin type wiring |
| Protection grade | IP68 |
| Install | Flow through type, immersion type |
| Thread | M39*1.5, 3/4 |
