ORP sensor technical data
Measuring range | -2000...2000mV |
Temp measure range | 0...60°C |
Pressure range | 0...3bar |
Material | ABS,PPS |
Current output | 4...20mA |
Data communication | Rs485(MODBUS-RTU) |
Power supply | DC12V, DC24V |

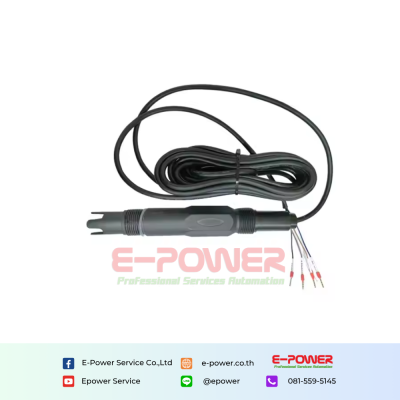

Cable length | 5m, pin type wiring |
Protection grade | IP68 |
Install | Flow through type, immersion type |
Thread | M39*1.5, 3/4 |
