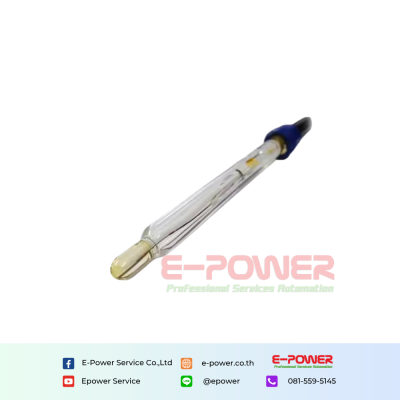

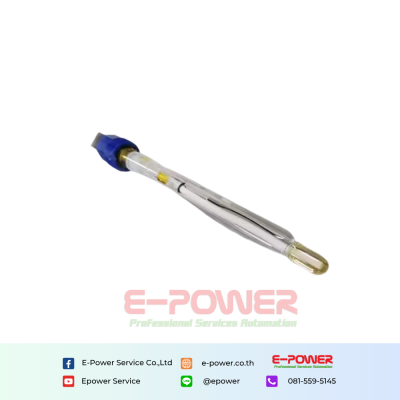

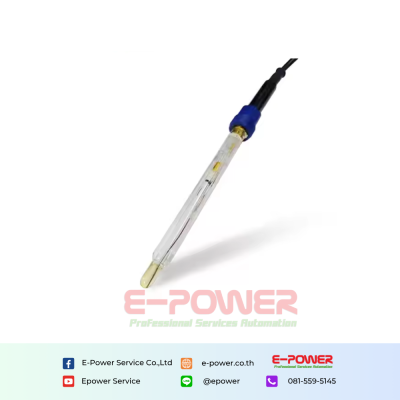

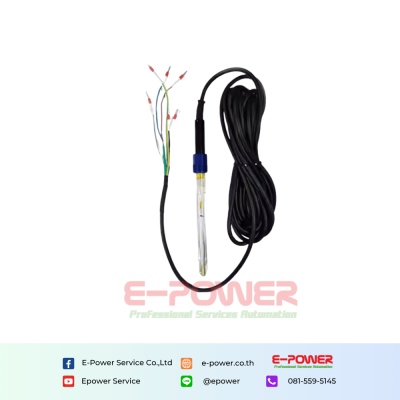

RS485 and 4-20mA PH glass sensor technical data
| Measuring range | 0...14pH |
| Resolution | 0.01 pH |
| Accuracy | Âą0.01 pH |
| Temp measure range | 0.0...100.0°C |
| Resolution | 0.1°C |
| Accuracy | ¹0.3 °C |
| Temperature compensation | Automatic |
| Power supply | DC9-30V(recommend 12V) |
| Output | 4-20mA |
| Pressure range | 0-6bar |
| Data communication | Rs485(MODBUS-RTU) |
| Shell material | Glass |
| Thread | PG13.5 |
| Cable length | 5m or customize |
| Protection grade | IP68 |
