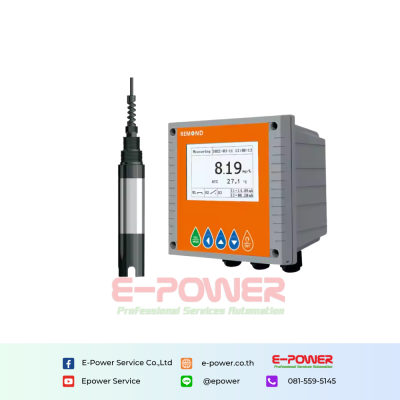

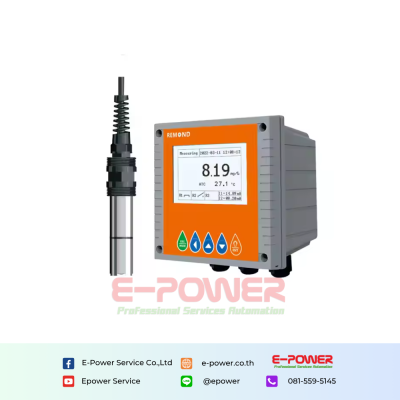

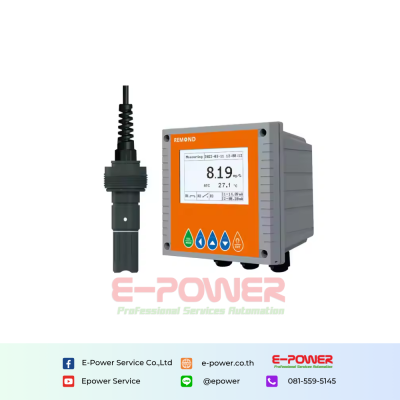

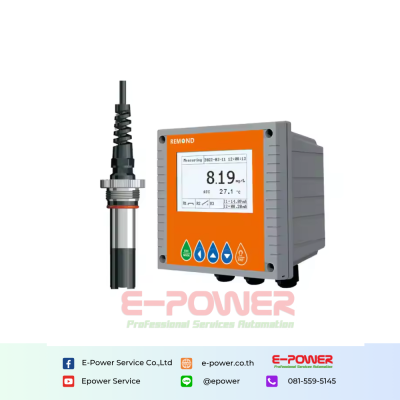

Remond Aquarium Dissolved Oxygen Sensor Oxygen Analyzer
Aquarium Dissolved Oxygen Sensor Oxygen Analyzer DO Meter DO Probe RS485 Dissolved Oxygen Meter
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
DO controller RMD-O18 technical parameter
| Functions | % sat | ppm | mg/L | ug/L |
| Measuring range | 0.00-400.00 | 0.00-40.00 | 0.00-40.00 | 0.00-200.00 |
| Temp. compensation | Pt 1000/NTC22K | |||
| Temp. range | -10.0 to +130.0°C | |||
| Temp. compensation range | -10.0 to +130.0°C | |||
| Temp. resolution | 0.1°C | |||
| Temp. accuracy | ¹0.2°C | |||
| Ambient temperature range | 0 to +70°C | |||
| Storage temp. | -20 to +70°C | |||
| Display | Back light, dot matrix | |||
| Current output1 | Isolated, 4 to 20mA output , max. load 500ÎĐ | |||
| Temp. current output 2 | Isolated, 4 to 20mA output , max. load 500ÎĐ | |||
| Current output accuracy | Âą0.005nA | |||
| RS485 | Mod bus RTU protocol | |||
| Baud rate | 9600/19200/38400 | |||
| Maximum relay contacts capacity | 5A/250VAC,5A/30VDC | |||
| Cleaning setting | ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours | |||
| One multi function relay | clean/period alarm/error alarm | |||
| Relay delay | 0-120 seconds | |||
| Data logging capacity | 500,000 | |||
| Language selection | English/traditional Chinese/simplified Chinese | |||
| Waterproof grade | IP65 | |||
| Power supply | From 90 to 260 VAC, power consumption < 7 watts | |||
| Installation | panel/wall installation | |||
Remond
RS485
pH Sensor
Remond Aquarium Dissolved Oxygen Sensor Oxygen Analyzer
Aquarium Dissolved Oxygen Sensor
Dissolved Oxygen Sensor
Oxygen Analyzer
