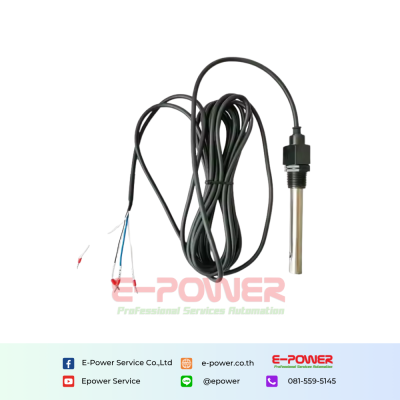

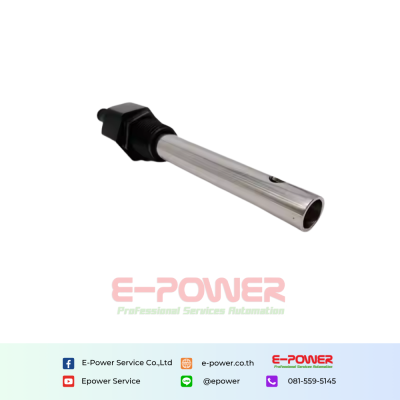

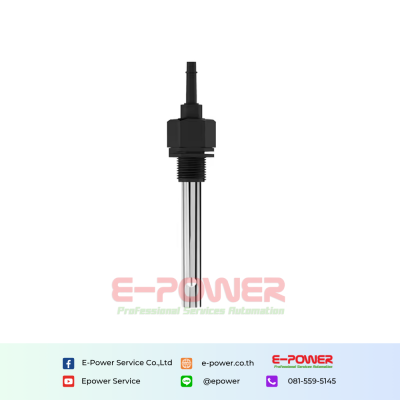

Conductivity sensor probe features
Conductivity probe sensor specification
| Model | RMD-CB-01 |
| Measuring range | 0...200uS/cm |
| Constant | K=0.1 |
| Accuracy | ±2%FS |
| Resolution | ±1uS/cm |
| Temperature range | 0...60°C |
| Temp sensor | NTC10K, optional PT1000, PT100 |
| Shell material | Stainless steel |
| Pressure range | 0...4bar |
| Thread | 1/2NPT |
| Electrical connection | Pin type |
| Installation | Flow through type |
| Cable length | 5m or customize |
| Protection grade | IP68 |
