DS525 Online Digital ORP Sensor Probe and Portable ORP Meter for Wastewater
We are a high-tech company integrating production, research and development, sales, after-sales service and engineering services. We actively innovate, continuously improve products, and optimize industry application solutions. Based on the current rapidly developing Internet of Things technology, we also launch wireless water quality monitoring solutions.
รายละเอียดสินค้า
Overview:

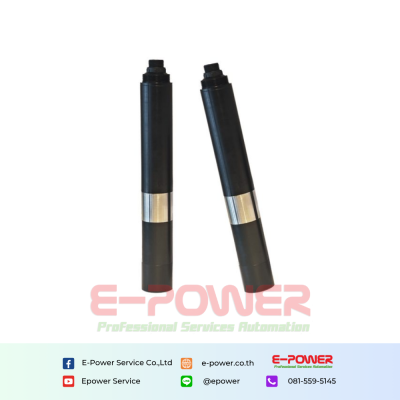

DS525 Online Digital ORP Sensor Probe, using compound electrode detection method, is suitable for complex situations, and the product is easy to maintain. The built-in temperature sensor can automatically compensate for he temperature to reduce the influence of temperature on the test results, and still have good test results under the long-term online state.
Features:
- The ORP sensor adopts composite electrode technology with strong stability.
- A variety of installation options are available.
- Direct measurement, easier than traditional manual counting.
- Online continuous monitoring, real-time control of water quality dynamics.
Technical parameter:
| Product Name | Digital ORP Sensor |
| Model | DS525 |
| Detection principle | Composite electrode |
| Measurement range | -1000~1000mV |
| Measurement accuracy | 3% |
| Resolution | 1mV |
| Temperature range | 0~50°C |
| Stored temperature | 0~60°C |
| Output signal | RS-485, MODBUS protocol |
Specifications
| Waterproof level | IP68 |
| Under pressure | 1bar |
| Product material | POM |
| Product Size | Ø25×198mm |
| Power information | DC 6~12V,Current <50mA |
| Cable length | Standard 5 meters, longer can be customized |
DS525
Online Digital ORP Sensor
Digital ORP Sensor
ORP Sensor

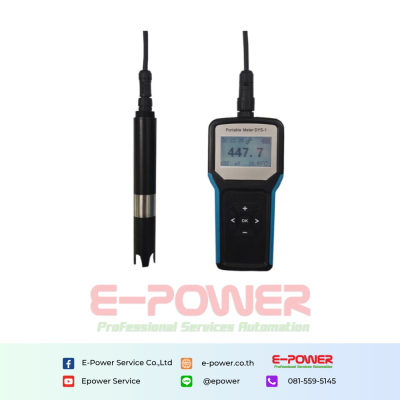

Portable ORP Meter for Wastewater
Portable ORP Meter
ORP Meter
