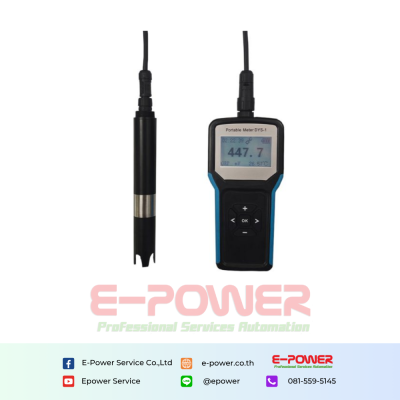

DS525 Online Digital ORP Sensor Probe and Portable ORP Meter for Wastewater

We are a high-tech company integrating production, research and development, sales, after-sales service and engineering services. We actively innovate, continuously improve products, and optimize industry application solutions. Based on the current rapidly developing Internet of Things technology, we also launch wireless water quality monitoring solutions.

Categories : DS Sensor , Water Quality Sensor

Brands :Desun Uniwill

Product description

Overview:

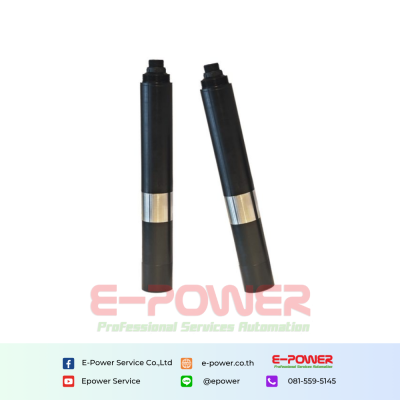

DS525 Online Digital ORP Sensor Probe, using compound electrode detection method, is suitable for complex situations, and the product is easy to maintain. The built-in temperature sensor can automatically compensate for he temperature to reduce the influence of temperature on the test results, and still have good test results under the long-term online state.

Features:

The ORP sensor adopts composite electrode technology with strong stability.
A variety of installation options are available.
Direct measurement, easier than traditional manual counting.
Online continuous monitoring, real-time control of water quality dynamics.

Technical parameter:

Product Name	Digital ORP Sensor
Model	DS525
Detection principle	Composite electrode
Measurement range	-1000~1000mV
Measurement accuracy	3%
Resolution	1mV
Temperature range	0~50°C
Stored temperature	0~60°C
Output signal	RS-485, MODBUS protocol

Specifications

Waterproof level	IP68
Under pressure	1bar
Product material	POM
Product Size	Ø25×198mm
Power information	DC 6~12V,Current <50mA
Cable length	Standard 5 meters, longer can be customized
