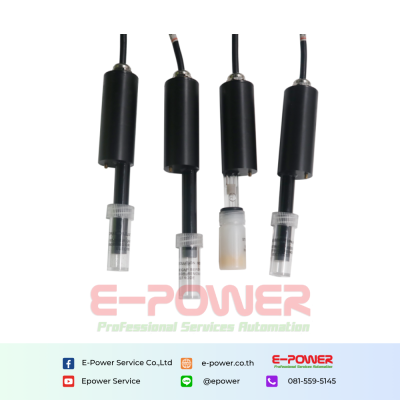

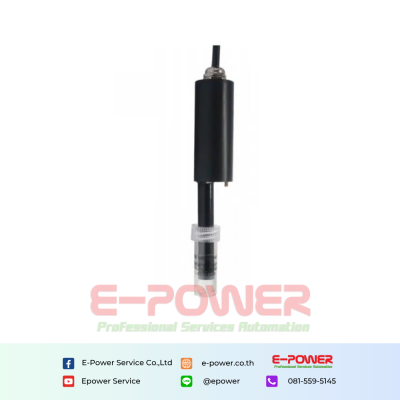

DS600 Online Digital Water Hardness Sensor and Analyzer
The Water Hardness Sensor uses an industrial wire electrode with a flat front end for easy cleaning. Built-in temperature sensor for automatic temperature compensation, suitable for online long-term monitoring environment.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Overview:
DS600 Online Digital Water Hardness Sensor and Analyzer uses an industrial wire electrode with a flat front end for easy cleaning. Built-in temperature sensor for automatic temperature compensation, suitable for online long-term monitoring environment.
Features:
- Digital sensor, RS-485 output, supports MODBUS.
- Unaffected by transmission distance for better stability.
- Built-in temperature sensor, automatic temperature compensation.
RS-485 Output Signal
-It is equipped with an RS-485 interface that allows easy and fast sensor configuration via Modbus. It can be easily connected to monitoring system. Ã
-DSMC5100 can be equipped with it to read real-time monitoring data, and the data storage function provides users with a basis for analyzing the data.
Technical parameter:
| Item | Parameters |
| Model | DS600 |
| Range | 0-100mg/L |
| Precision | 5% |
| Deepest depth | Underwater 30m |
| Protection level | IP68 |
| Maximum operating pressure | 3bar |
| storage temperature | -20 ~ 80°C |
| temperature range | 0- 50°C |
| Sensor interface | Support RS-485, MODBUS protocol |
| assembly | Input type |
| Power information | DC 6-12V, current <50mA |
| Probe cable length | 10 meters (default), can be customized |
| Housing material | POM |
| calibration | Three-point calibration |
DS600
Online Digital Water Hardness Sensor
Digital Water Hardness Sensor
Water Hardness Sensor
Digital Water Hardness Sensor and Analyzer
Digital Water Hardness Analyzer
