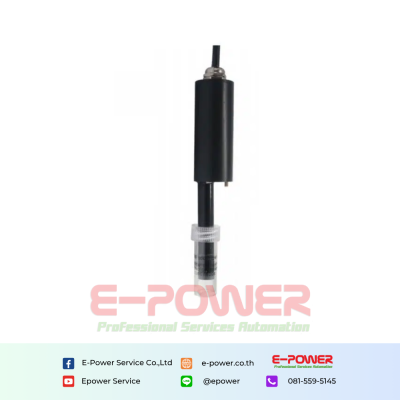

DS600 Online Digital Water Hardness Sensor and Analyzer

The Water Hardness Sensor uses an industrial wire electrode with a flat front end for easy cleaning. Built-in temperature sensor for automatic temperature compensation, suitable for online long-term monitoring environment.

Categories : DS Sensor , Water Quality Sensor

Brands :Desun Uniwill

Product description

Overview:

DS600 Online Digital Water Hardness Sensor and Analyzer uses an industrial wire electrode with a flat front end for easy cleaning. Built-in temperature sensor for automatic temperature compensation, suitable for online long-term monitoring environment.

Features:

Digital sensor, RS-485 output, supports MODBUS.
Unaffected by transmission distance for better stability.
Built-in temperature sensor, automatic temperature compensation.

RS-485 Output Signal

-It is equipped with an RS-485 interface that allows easy and fast sensor configuration via Modbus. It can be easily connected to monitoring system. Ø

-DSMC5100 can be equipped with it to read real-time monitoring data, and the data storage function provides users with a basis for analyzing the data.

Technical parameter:

Item	Parameters
Model	DS600
Range	0-100mg/L
Precision	5%
Deepest depth	Underwater 30m
Protection level	IP68
Maximum operating pressure	3bar
storage temperature	-20 ~ 80°C
temperature range	0- 50°C
Sensor interface	Support RS-485, MODBUS protocol
assembly	Input type
Power information	DC 6-12V, current <50mA
Probe cable length	10 meters (default), can be customized
Housing material	POM
calibration	Three-point calibration
