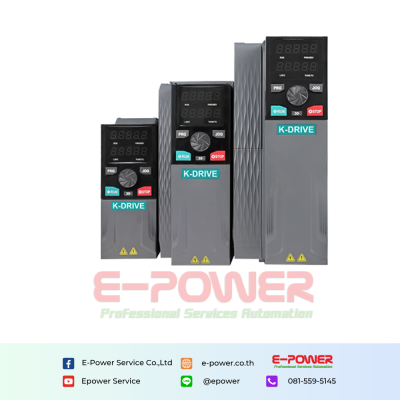

KD700 Book Type High-Performance Vector Inverter

Product Features

01. Book-type design, saving space and easy to install in cabinets

02. Synchronous and asynchronous combination, supporting permanent magnet synchronous motors

03. Modular design, abandoning traditional wiring and connecting wires, can provide more flexible functional combinations and reduce the difficulty of maintenance and disassembly

04. Both the power module and the control module can work independently, and the control board and keypad support all power ranges, saving customer stocking costs

05. Standard upgraded LED dual-display keypad, supporting 300 meters remote connection. Support large LCD high-definition keypad, menu language one-key switching (Chinese, English, Russian)

06. 37kw~132kw optional built-in DC reactor, 160kw standard built-in DC reactor

07. 37kw standard built-in braking unit, 45kw~160kw optional built-in braking unit module

08. Standard 7 digital input DI terminals, 2 analog AI input, 2 analog AO output, 2 relay output, standard STO (safe torque off) terminals

09. Support MODBUS RS485, ProfitNET, Profitbus-DP, CANopen, EtherCAT communication protocols and various PG cards

10. Optional built-in PLC module, saving customer deployment costs and engineer learning costs

11. Built-in various special programs, solar water pump programs, elevator programs, lifting programs, tension control, PID constant pressure water supply; all programs are switched by parameters with one key, no need to replace the control board to upgrade the program

Technical Details

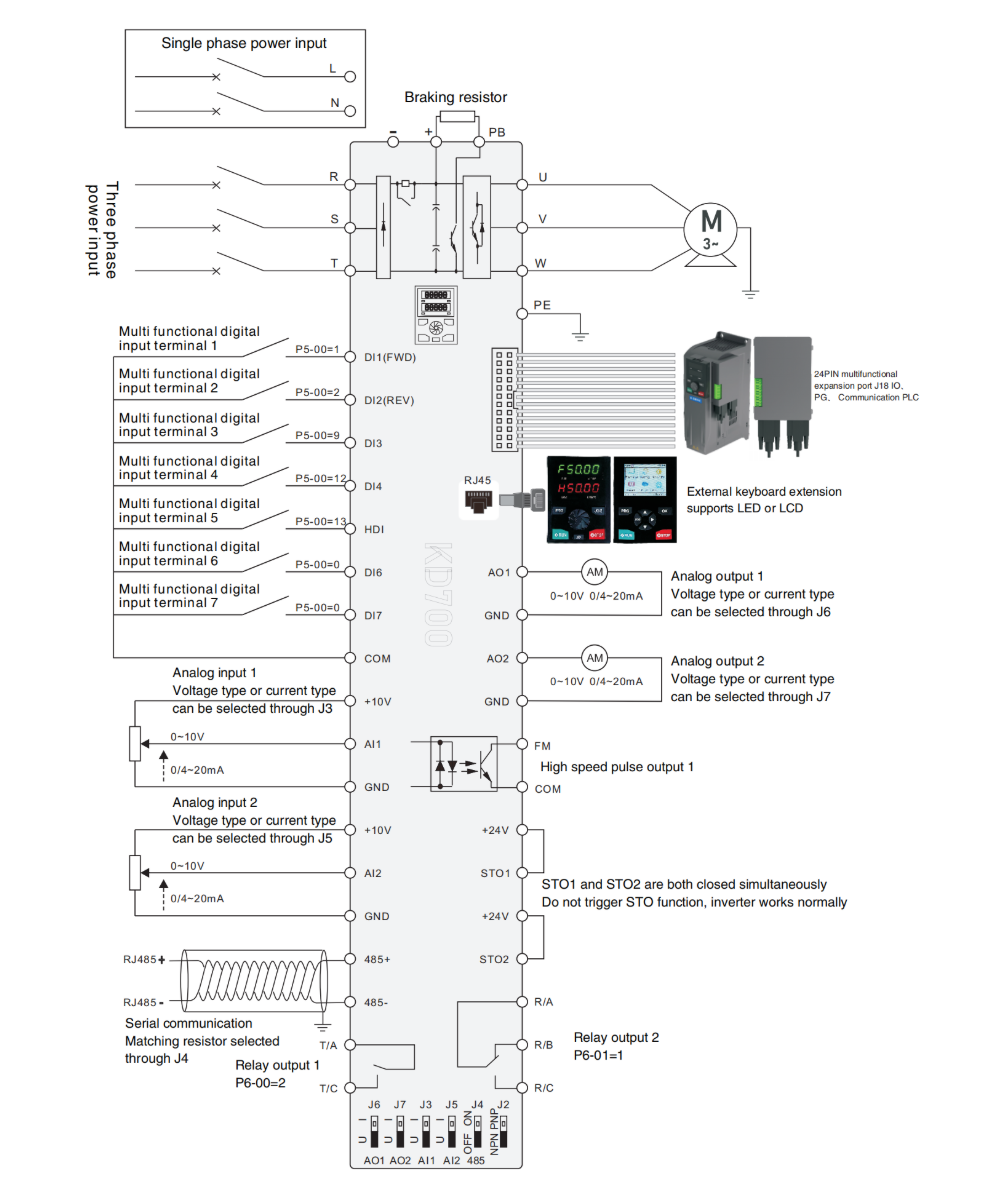

Basic Wiring Diagram

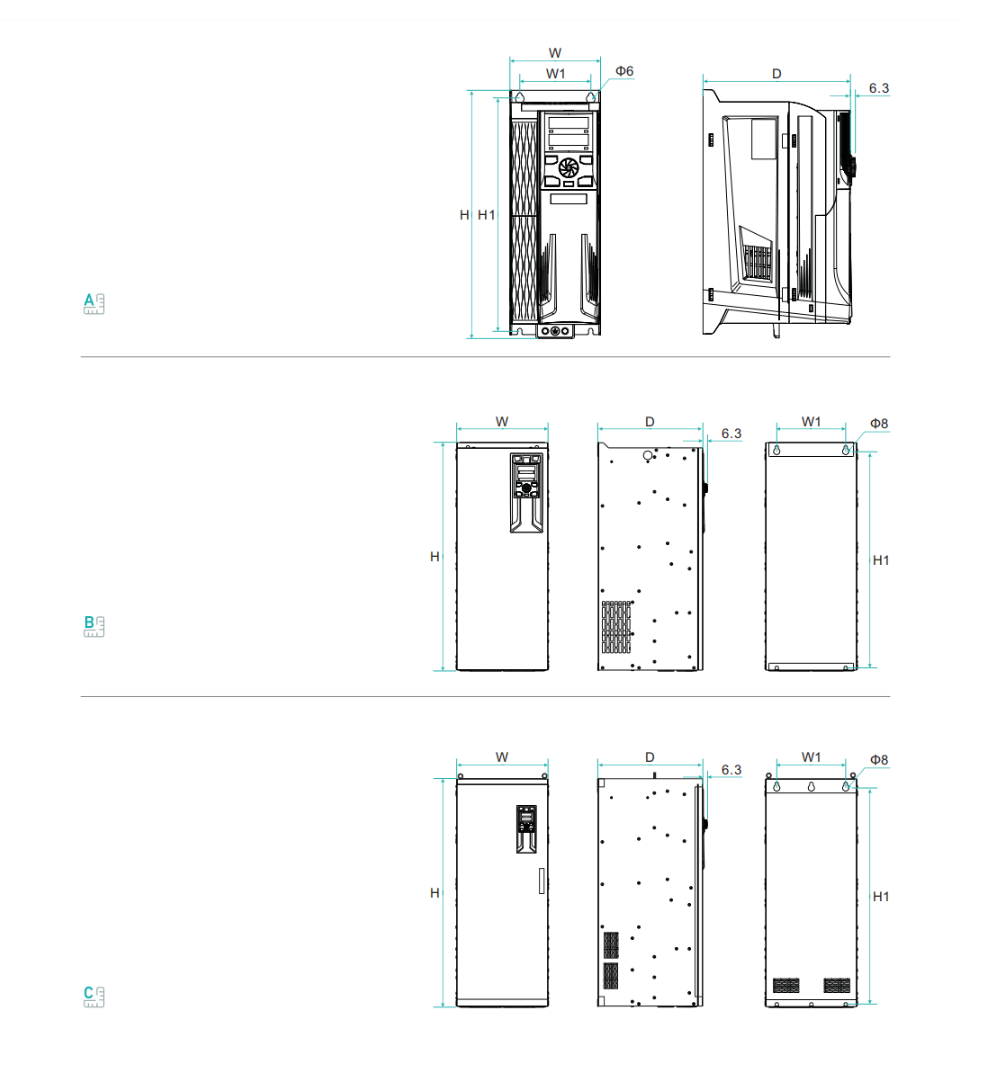

Model Dimension

Model And Size
