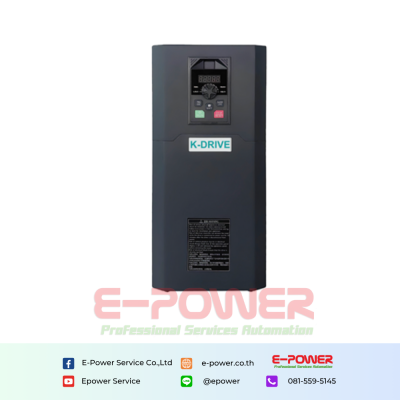

CL100 Series Energy Feedback Unit
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Product Advantage
01
Space saving
Small footprint, plug and play, easy to use. Compared to traditional energy consumption braking, it saves more spaces.
02
Economic energy-saving
Regenerated electricity is fed back to the power grid, which has higher economic efficiency and is more energy-efficient.
03
Low Pollution
Low harmonic pollution, THD<5%
04
Built in MODBUS

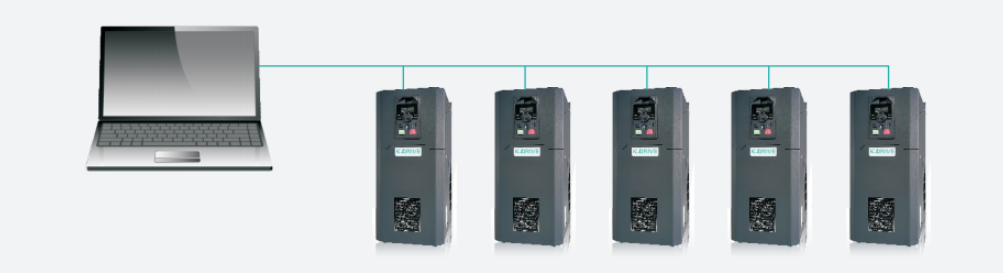

Built in MODBUS commercials protocol for centralized monitoring and external control of start stop.

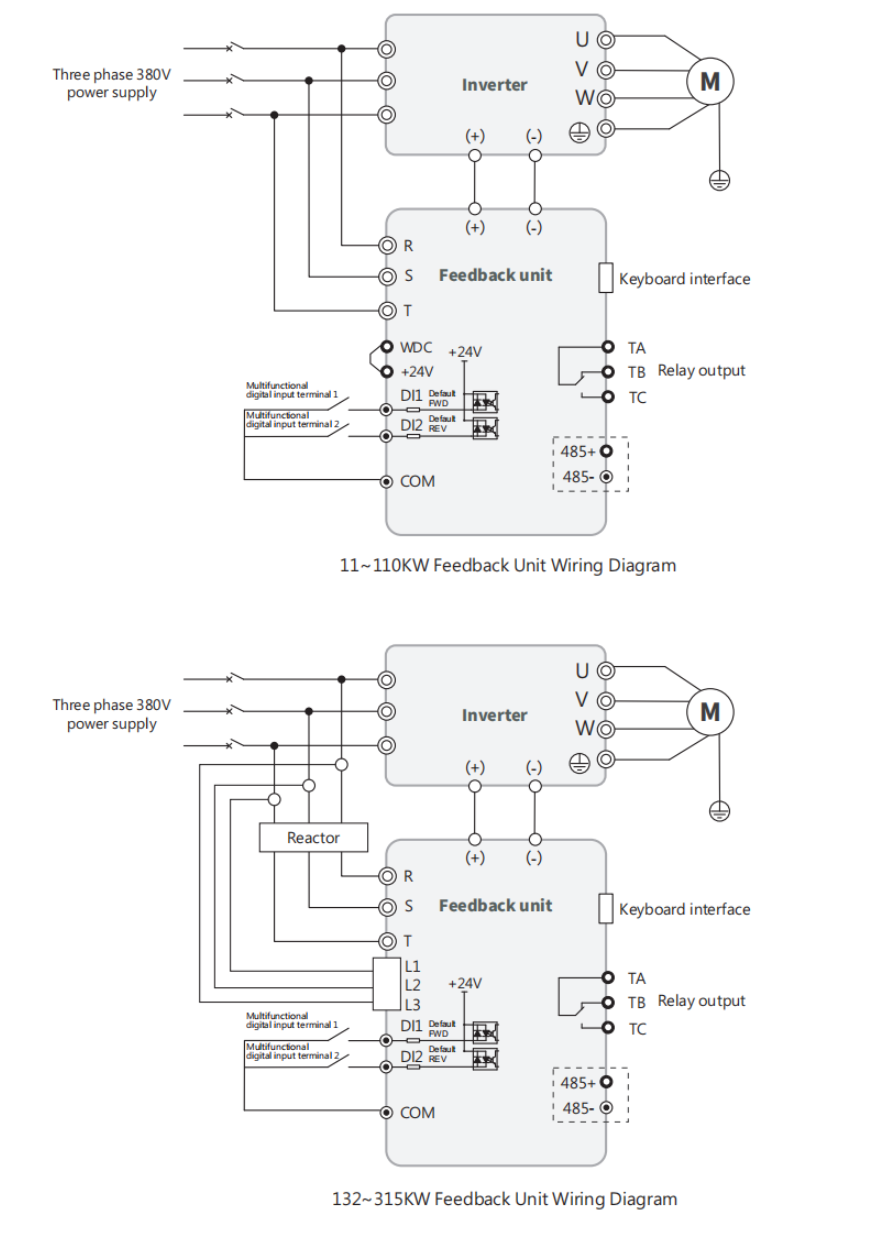

Basic Wiring Diagram
AC Drive Model Specifications
| AC Drive Model | Installation size (mm) | Dimensions (mm) | Aperture | Reactor | Frame NO. | |||
| A | B | H | W | D | d | |||
| CL100-4T-11KW | 140 |
425 |
440 |
189 |
222 |
ÎĶ7 |
Built-in | A |
| CL100-4T-22KW | ||||||||
| CL100-4T-30KW | ||||||||
| CL100-4T-37KW | ||||||||
| CL100-4T-45KW | 200 | 525 | 540 | 255 | 262 | ÎĶ7 | Built-in | B |
| CL100-4T-55KW | ||||||||
| CL100-4T-75KW | ||||||||
| CL100-4T90KW | 245 | 634 | 650 | 310 | 279 | ÎĶ10 | Built-in | C |
| CL100-4T-110KW | ||||||||
| CL100-4T-132KW | 290 | 544 | 560 | 350 | 279 | ÎĶ10 | External L1 | D |
| CL100-4T-160KW | ||||||||
| CL100-4T-185KW | ||||||||
| CL100-4T-220KW | 320 | 677 | 695 | 410 | 306 | ÎĶ10 | External L1 | E |
| CL100-4T-250KW | External L2 | |||||||
| CL100-4T-280KW | ||||||||
| CL100-4T-315KW | ||||||||
