Product Features
01. Compact design suitable for limited installation space such as packaging, labeling machine, conveyor belt etc.;
02. External keyboard, flexible for panel assembling ;
03. Built-in EMC C3 filter, stronger anti-electromagnetic interference ability ;
04. Independent air duct design with better heat dissipation performance and easier maintenance;
05. Programmable RS485 Modbus RTU make easy communication with other devices;
06. Integrated PID function;
07. Integrated multi-speed function;
Technical Details
| Input Voltage | 208~240V single phase & three phase 380~480V three phase |
| Output Frequency | 0~600Hz |
| Control Technology | V/F |
| Starting torque | 0.5Hz 180% (V/F) |
| Speed Accuracy | ± 0.5%(V/F) |
| Torque response | ＜10ms(SVC) |
| Overload capability | 150%@rated current 60S 180%@rated current 10S 200%@rated current 1S |
Simple PLC support max 16-steps speed control 5 Digital inputs，support both NPN & PNP 1 Analog inputs, 1 analog outputs | |
| Communication | MODBUS RS485 |

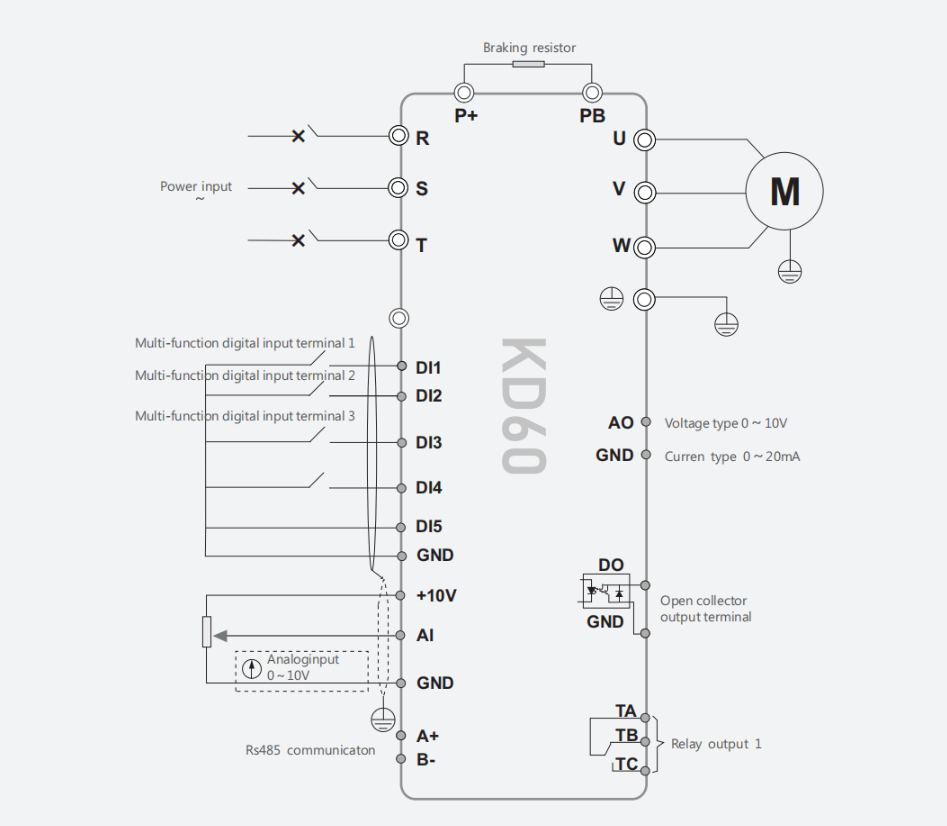

Basic Wiring Diagram
Model Dimension
| AC Drive Model | Adapt Motor(KW) | Rated Input Current(A) | Rated Output Current(A) | Dimensions(mm) | ||
| D | W | H | ||||
| Input voltage: single-phase 220V Range: -15%~20% | ||||||
| KD60-2S-0.4G | 0.4 | 7.0 | 2.8 | 162 | 68 | 164 |
| KD60-2S-0.7G | 0.7 | 13 | 5.0 | 162 | 68 | 164 |
| KD60-2S-1.5G | 1.5 | 20 | 8.0 | 162 | 68 | 164 |
| KD60-2S-2.2G | 2.2 | 24 | 11 | 162 | 68 | 164 |
| KD60-2S-4.0G | 4.0 | 30 | 17.6 | 162 | 68 | 164 |
| Input voltage: Three-phase 220V Range: -15%~20% | ||||||
| KD60-2T-0.4G | 0.4 | 4 | 2.8 | 162 | 68 | 164 |
| KD60-2T-0.7G | 0.7 | 7.0 | 5.0 | 162 | 68 | 164 |
| KD60-2T-1.5G | 1.5 | 11 | 8.0 | 162 | 68 | 164 |
| KD60-2T-2.2G | 2.2 | 14 | 11 | 162 | 68 | 164 |
| KD60-2T-2.2G | 2.2 | 21 | 17.6 | 162 | 68 | 164 |
| Input voltage: three-phase 380V Range: -15%~20% | ||||||
| KD60-4T-0.7G | 0.7 | 3.5 | 2.5 | 162 | 68 | 164 |
| KD60-4T-1.5G | 1.5 | 5.8 | 4.2 | 162 | 68 | 164 |
| KD60-4T-2.2G | 2.2 | 8.2 | 5.8 | 162 | 68 | 164 |
| KD60-4T-4.0G | 4.0 | 13.0 | 9.5 | 162 | 68 | 164 |
| KD60-4T-5.5G | 5.5 | 14.6 | 13.0 | 162 | 68 | 164 |
| KD60-4T-7.5G | 7.5 | 19.0 | 17.0 | 162 | 68 | 164 |
| KD60-4T-11.0G | 11.0 | 26.0 | 25.0 | 162 | 68 | 164 |
| KD60-4T-15.0G | 15.0 | 35.0 | 32.0 | 160 | 68 | 164 |

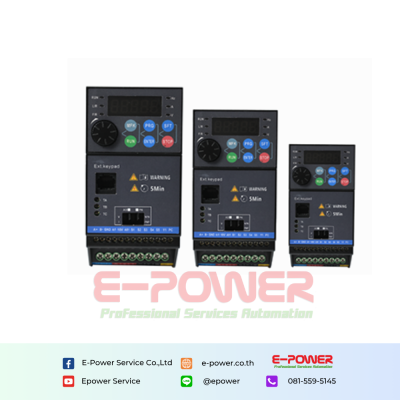

KD60 Series Simple Frequency Converter
Frequency Converter
Simple Frequency Converter
KD60 Series
KD60
