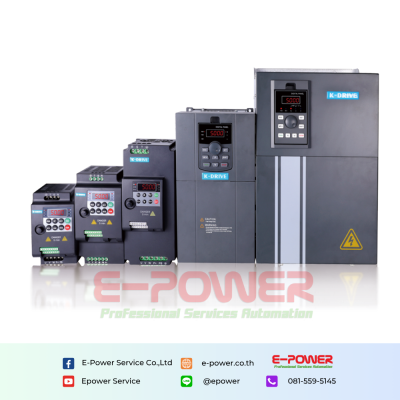

KD100 Mini Vector Series
Product Features
01. Compact design suitable for limited installation space such as packaging, labeling machine, conveyor belt etc.;
02. Patented rubber keypad design, specially designed for overseas customer with much larger size for easier operation ;
03. External keyboard, flexible for panel assembling ;
04. PC software, one-key setting, saving customer debugging time;
05. Built-in EMC C3 filter, stronger anti-electromagnetic interference ability ;
06. Independent air duct design with better heat dissipation performance and easier maintenance;
07. Programmable DI/DO/AI as well as RS485 Modbus RTU &ASCII make easy communication with other devices;
08. Integrated PID function;
09. Integrated multi-speed function;
10. Support fire override mode;
Technical Details
| Input Voltage | 208~240V single phase & three phase 380~480V three phase |
| Output Frequency | 0~600Hz |
| Control Technology | V/F, SVC, Torque Control |
| Starting torque | 0.5Hz 150% (V/F), 0.25HZ 180% (SVC) |
| Speed Accuracy | Âą 0.5%(V/F) Âą 0.2% ïžSVCïž |
| Torque response | <10ms(SVC) |
| Overload capability | 150%@rated current 60S 180%@rated current 10S 200%@rated current 1S |
| Simple PLC support max 16-steps speed control 5 Digital inputsïžsupport both NPN & PNP 2 Analog inputs, 2 analog outputs | |
| Communication | MODBUS RS485 |

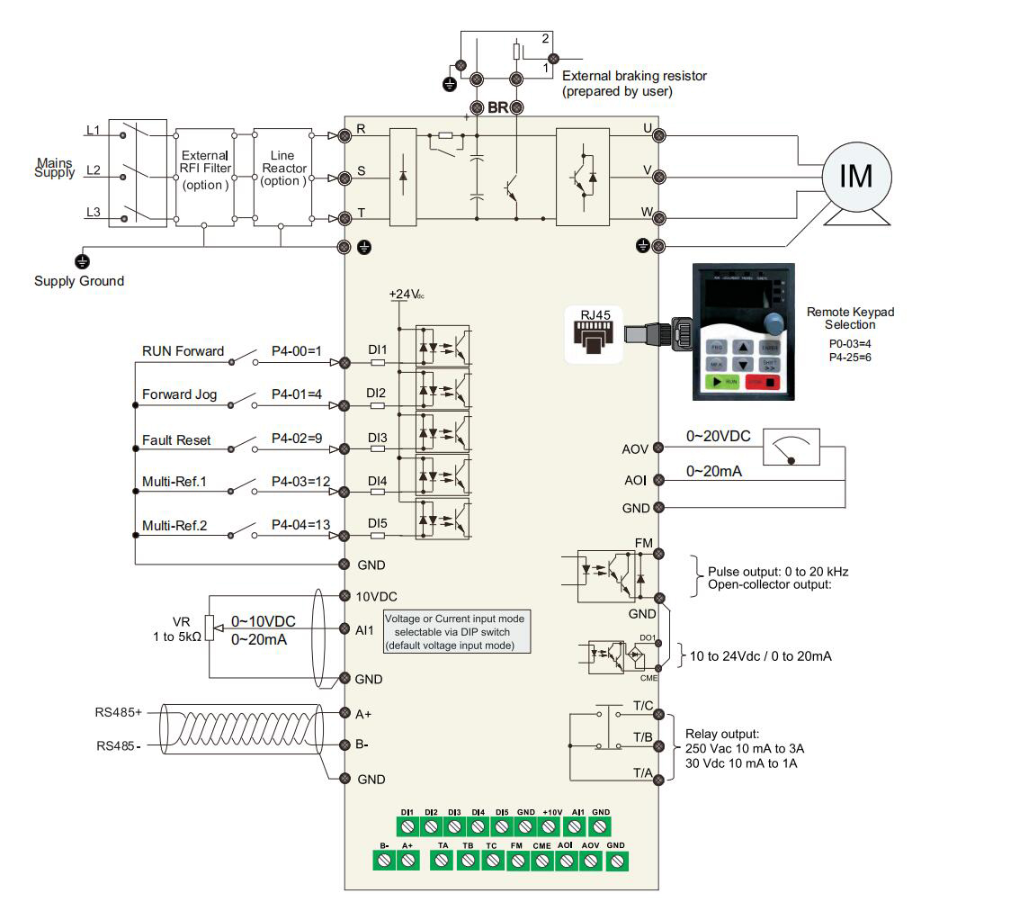

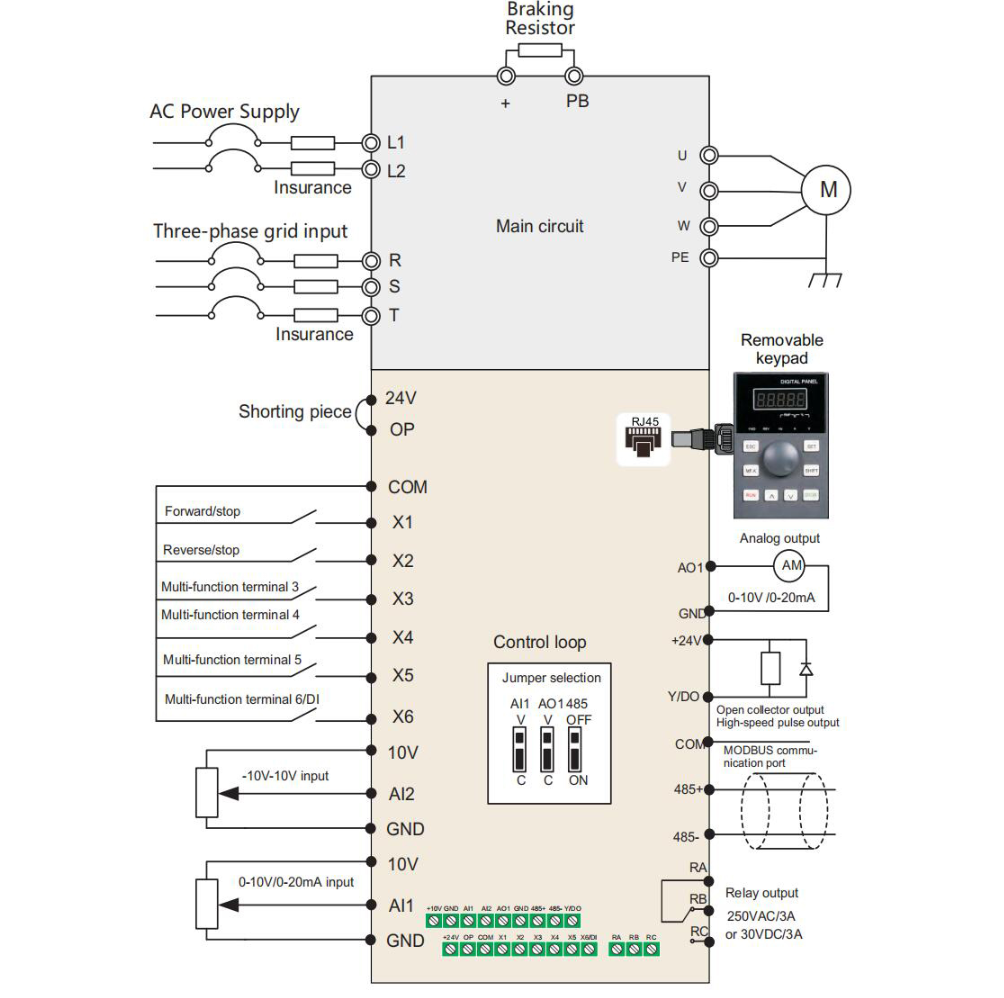

Basic Wiring Diagram
Terminal Specifications
| Terminal | Terminal Name | Terminal | Terminal Name |
| D1~D5 | Digital Input X5 | AI1 | Analog Input X1 |
| A,B | RS485 X1 | TA1,TB1,TC1 | Relay Output X1 |
| X5 | HDI(High Speed Pulse Input/Output)X1 | ||

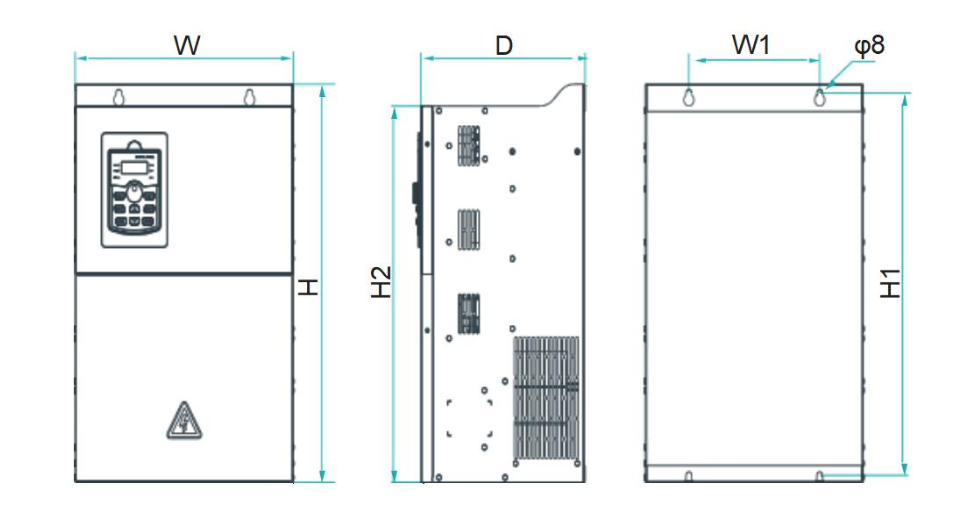

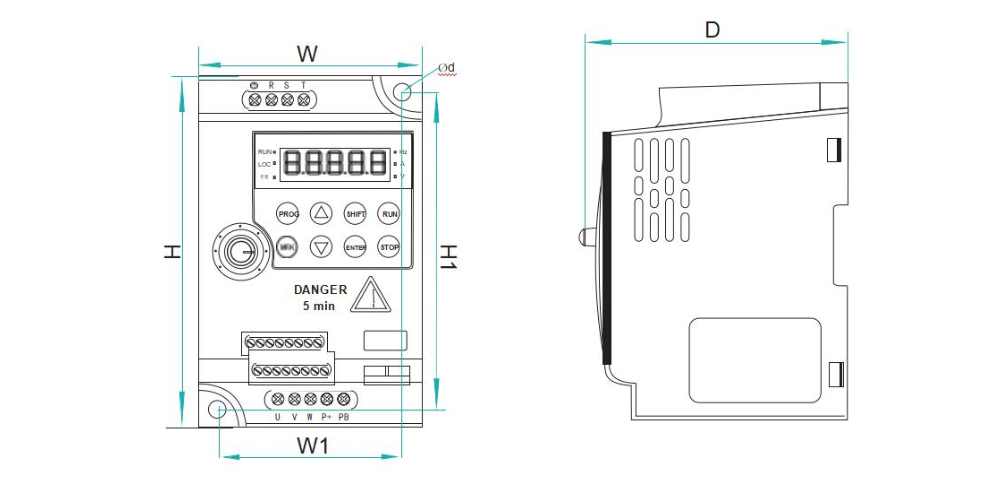

Model Dimension
KD100 Mini Vector Series Model Specifications
| AC Drive Model | Power Capacity (KVA) | Rated Input Current(A) | Rated OutputCurrent(A) | Dimensions(mm) | ||
| L | W | H | ||||
| Input voltage: single-phase 220V Range: -15%~20% | ||||||
| KD100-2S-0.4G | 1.0 | 5.8 | 2.5 | 140 | 85 | 105 |
| KD100-2S-0.7G | 1.5 | 8.2 | 4 | 140 | 85 | 105 |
| KD100-2S-1.5G | 3.0 | 14.0 | 7 | 140 | 85 | 105 |
| KD100-2S-2.2G | 4 | 23.0 | 9.6 | 140 | 85 | 105 |
| KD100-2S-4.0G | 6.6 | 39.0 | 16.5 | 240 | 105 | 150 |
| KD100-2S-5.5G | 8 | 48.0 | 20 | 240 | 105 | 150 |
| Input voltage: three-phase 380V Range: -15%~20% | ||||||
| KD100-4T-0.7G | 1.5 | 3.4 | 2.1 | 140 | 85 | 105 |
| KD100-4T-1.5G | 3.0 | 5.0 | 3.8 | 140 | 85 | 105 |
| KD100-4T-2.2G | 4.0 | 5.8 | 5.1 | 140 | 85 | 105 |
| KD100-4T-4.0G | 5.9 | 10.5 | 9.0 | 180 | 100 | 115 |
| KD100-4T-5.5G | 8.9 | 14.6 | 13.0 | 180 | 100 | 115 |
| KD100-4T-7.5G | 12 | 20 | 17 | 180 | 100 | 115 |
| KD100-4T-11G | 17.7 | 26 | 25 | 240 | 105 | 150 |
| KD100-4T-15G | 24.2 | 35 | 32 | 240 | 105 | 150 |
| Model | Installation size (mm) | External size (mm) | Installation Aperture | ||||
| W1 | H1 | H2 | H | W | D | ||
| KD100-4T-18.5G | 120 | 317 | - | 335 | 200 | 178.2 | ÎĶ8 |
| KD100-4T-22G | |||||||
| KD100-4T-30G | 150 | 387.5 | - | 405 | 255 | 195 | ÎĶ8 |
| KD100-4T-37G | |||||||
| KD100-4T-45G | 180 | 437 | - | 455 | 300 | 225 | ÎĶ10 |
| KD100-4T-55G | |||||||
| KD100-4T-75G | 260 | 750 | - | 785 | 395 | 285 | ÎĶ12 |
| KD100-4T-90G | |||||||
| KD100-4T-110G | |||||||
| KD100-4T-132G | 300 | 865 | - | 900 | 440 | 350 | ÎĶ12 |
| KD100-4T-160G | |||||||
| KD100-4T-185G | 360 | 950 | - | 990 | 500 | 360 | ÎĶ16 |
| KD100-4T-200G | |||||||
| KD100-4T-220G | |||||||
| KD100-4T-250G | 400 | 1000 | - | 1040 | 650 | 400 | ÎĶ16 |
| KD100-4T-285G | |||||||
| KD100-4T-315G | 600 | 1252 | - | 1300 | 815 | 422 | ÎĶ16 |
| KD100-4T-355G | |||||||
| KD100-4T-400G | |||||||
KD100 Model Specifications
