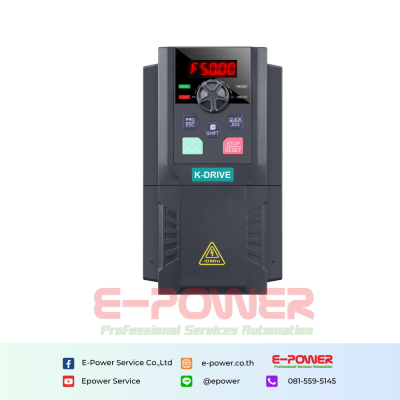

KD600 220V Single Phase to 380V Three Phase VFD
Product Features
01. Optional STO ïžSafe Torque Offïžfunction
02.IGBT module for all models
03. Redundant design of hardware solution ensures long-term stable operation
04. The whole series is equipped with a metal backboard as standard, which provides stronger protection than the plastic backboard
05. Extra large silicone buttons facilitate customer operation
06. The whole series is equipped with a metal backboard as standard, which provides stronger protection than the plastic backboard
07. Support LCD keypad, multi-language menu (optional)
08. Detachable keyboard, external keyboard, convenient for customer debugging
09. PC software, one-key setting,keypad parameter copy, saving customer debugging time
10. Built-in EMC C3 filter, stronger anti-electromagnetic interference ability
11. Independent air duct design prevents dust from contacting the circuit board, better heat dissipation performance
12. Installation back mounting system can insert the inverter directly into the rack
13. Programmable DI/DO/AI/AO
14. MODBUS RS485, Profitnet, Profitbus, CANopen, Ethercat, PG, I/O expansion card
15. Integrated PID function support most of water supply applications
16. Integrated multi-speed function support maximum 16 speeds
17. Support fire override mode
Technical Details
| Input Voltage | 220V-240V single phase |
| Output Voltage | 0~380V three phase |
| Output Frequency | 0~600Hz |
| Control Technology | V/F, SVC, Torque Control |
| Starting torque | 0.5Hz 150% (V/F), 0.25HZ 180% (SVC) |
| Speed Accuracy | Âą 0.5%(V/F) Âą 0.2%ïžSVCïž |
| Torque response | <10ms(SVC) |
| Overload capability | 150%@rated current 60S 180%@rated current 10S 200%@rated current 1S |
| Simple PLC support max 16-steps speed control 5 Digital inputsïžsupport both NPN & PNP 2 Analog inputs, 2 analog outputs | |
| Communication | MODBUS RS485, Profinet, Profibus, CANopen, Ethercat, PG |

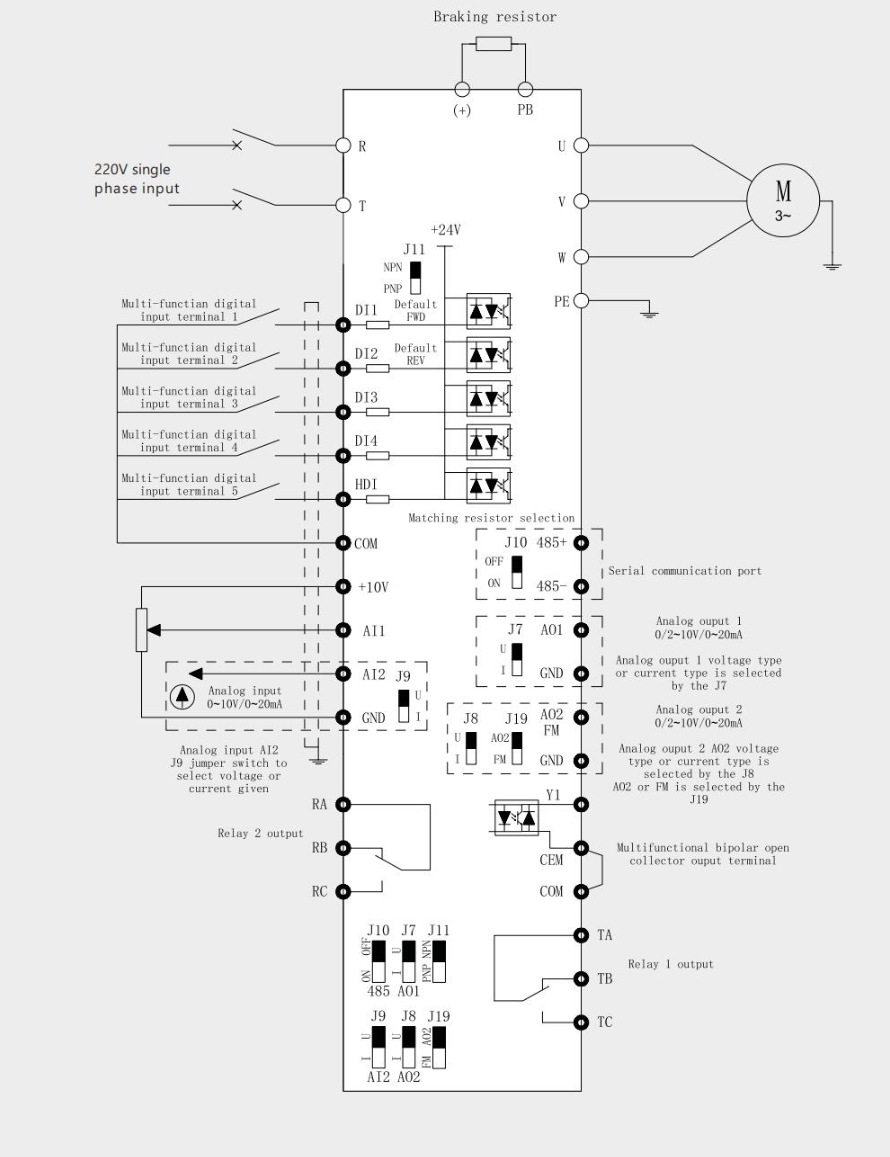

Basic Wiring Diagram
Model Dimension
| Model | Rated Input Current | Rated Output Current | Motor Power | Motor Power | Dimension(mm) | G.W(kg) | ||
| (A) | (A) | (KW) | (HP) | H | W | D | ||
| KD600-2S/4T-0.75G | 7.3 | 2.1 | 0.75 | 1 | 165 | 86 | 140 | 2 |
| KD600-2S/4T-1.5G | 13.3 | 3.8 | 1.5 | 2 | 192 | 110 | 165 | 2.5 |
| KD600-2S/4T-2.2G | 17.9 | 5.1 | 2.2 | 3 | 192 | 110 | 165 | 3 |
| KD600-2S/4T-3.7G | 31.5 | 9 | 3.7 | 5 | 234 | 123 | 176 | 4 |
| KD600-2S/4T-5.5G | 45.5 | 13 | 5.5 | 7.5 | 330 | 189 | 186 | 8 |
| KD600-2S/4T-7.5G | 59.5 | 17 | 7.5 | 10 | 330 | 189 | 186 | 8 |
| KD600-2S/4T-11G | 87.5 | 25 | 11 | 15 | 425 | 255 | 206 | 15 |
| KD600-2S/4T-15G | 112 | 32 | 15 | 20 | 534 | 310 | 258 | 27 |
| KD600-2S/4T-18G | 129.5 | 37 | 18.5 | 25 | 534 | 310 | 258 | 27 |
| KD600-2S/4T-22G | 157.5 | 45 | 22 | 30 | 560 | 350 | 268 | 41 |
| KD600-2S/4T-30G | 210 | 60 | 30 | 40 | 560 | 350 | 268 | 42 |
