CF600 Industrial Fan Machine
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
CF600 Series

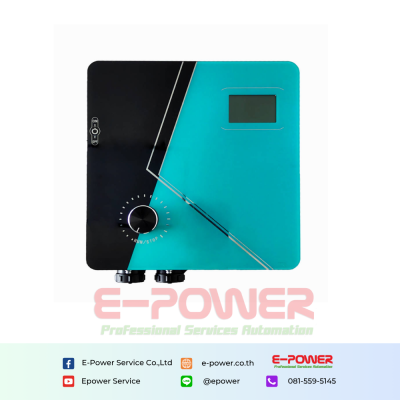

CF600 industrial fan machine is mainly composed of variable frequency driver, power-on knob switch, speed regulating positioner and LCD display. Set a variety of functions, smooth start ultra-quiet, small size, easy operation, energy saving and other advantages. Automatic identification of motor position, stable operation in the full speed range, 5HZ low frequency very quiet output rated torque.
Compatible with asynchronous, synchronous motor control, while supporting a variety of expansion accessories.
Appearance Function

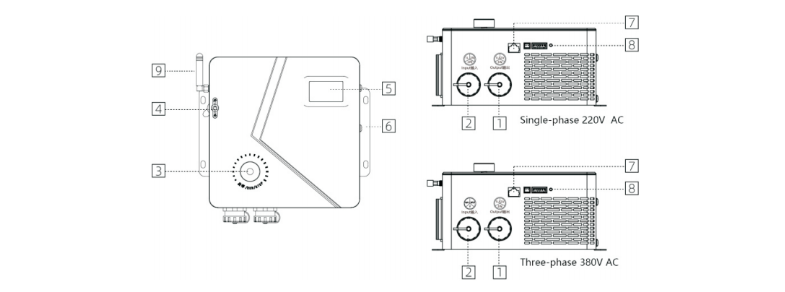

Function Description Table
| Number | Name | Function description |
|---|---|---|
| 1 | Total power control area | The main power switch of the controller is ON, OFF indicates off; The factory setting is OFF |
| 2 | Power input cable aviation plug | Power input connector |
| 3 | Liquid crystal display area | Display the actual motor speed and alarm parameters |
| 4 | Operating knob | Start, stop, speed control function, clockwise rotation, speed from 0 to rated speed |
| 5 | Parameter debugging interface | Standard network cable interface, used when debugging product parameters |
| 6 | Hide key | One key self-study key, manufacturers debug |
| 7 | Motor line aviation plug | Connect the motor input cable |
Terminal
| Terminal symbol | Terminal name | Function description | |
| Input power supply | R/L1 | Three-phase (single-phase) main circuit power input | Three-phase AC power input terminal, connected to the power supply |
| S/L2 | |||
| T | |||
| Grounding | PE (PE) | ||
| Output motor | U | Industrial ceiling fan output terminal | Three-phase output terminal, connected to the motor |
| V | |||
| W | |||
Rated Parameter
| Model | Power (KW) | Input voltage(V) |
|---|---|---|
| CF600-3S075G | 0.75 | 200~240(single or three phase) |
| CF600-3S1R5G | 1.5 | |
| CF600-4TR75 | 0.75 | 380V~440V(three phase) |
| CF600-4T1R5 | 1.5 | |
| CF600-4T2R2 | 2.2 |
| Model | Input current | Output current |
|---|---|---|
| CF600-3S075G | 8.2 | 4 |
| CF600-3S1R5G | 14 | 7 |
| CF600-4TR75 | 3.4 | 2.1 |
| CF600-4T1R5 | 5.9 | 3.8 |
| CF600-4T2R2 | 8 | 5.1 |
