CHCPS Capacitive Proximity Sensor

Overview

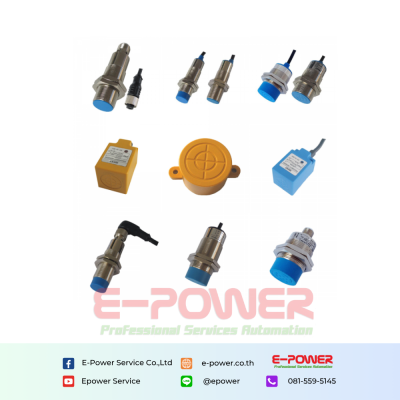

CHCPS capacitive proximity sensor

• Detect plastics and other nonmetallic targets, liquids, powders and other materials that are difficult or impossible with other sensor types

• The plastic body is corrosion-resistant

• Sensitivity adjustment which allows tuning for each application

• Output indicator LED to assist in commissioning and troubleshooting

Main Features

• Capacitive proximity sensor.

• Style:cylinder shape(M5,M8,M12,M18,M22,M30);various rectangular shapes and protruding shapes.

• Shielded or unshielded type.

• DC 2-wire(10-30V DC),DC 3-wire(10-30V DC),DC 4-wire(10-30V DC),AC 2-wire(90-250 AC/24~250V AC)type

• Connection mode: wires, M8 connector, and M12 connector.

• Brass nickel plated, proof of oil, water acid, alkaline.

• Standard sensing object: inductive sensor: ferrous metals; capacitive sensor: metal or non-metal objects.

• Protection rate: IP67, water-resistant.

• Over-load and short circuit protection; polarity reversal protection.

• Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc

Function mode:

• CHCPS-    NO (NPN Normally open)

• CHCPS-    NC (NPN Normally closed)

• CHCPS-    NOC (NPN NO+NC)

• CHCPS-    POC (PNP NO+NC)

• CHCPS-    PC (PNP Normally closed)

Ordering Code
