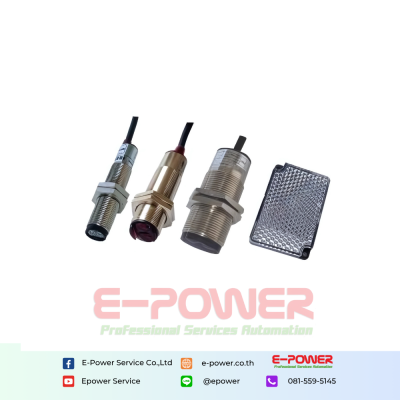

CHPES-R Infrared Retro Reflective beam Optical Photoelectric Sensor

Overview

CHPES-R Retro-reflective type photocell sensor switch

• Detect objects by the light quantities reflected and received for materials such as glass, metal, plastic, wood, fluid etc.

• M18/M30 cylinder type

• DC 3-wire/4-wire, with/without relative plug-in connector connection/Cable connection

• NPN/PNP with NO/NC/NO+NC, AC/DC 2-wire NO/NC

• Light resource: Infrared LED

• Strong anti-shock and anti-vibration

• Detecting distance 3m/4m

Main Features

• Working power: 10-30V DC or 90-250V AC

• Current: DC 3 wire: 200mA / DC 2 wire: 100mA / AC 2 wire: 400mA

• DResponse time: <3ms

• Working angle: 1°~5°

• Voltage for transistor: <1.5V

• Current consumption: <20mA

• Different distance: <15%

• Polarity reverse protection: YES

• Ambient light(LUX): Incandescent lamp: 3000 / Sunlight: 10000

• Material: Brass nickel-plated or ABS
