PRODUCT DESCRIPTION

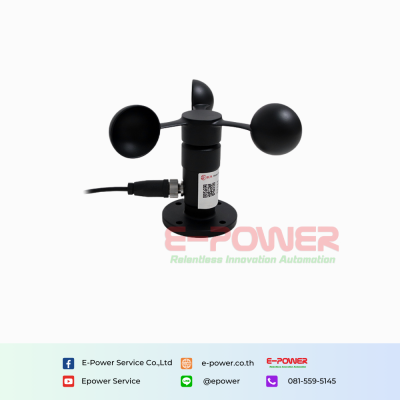

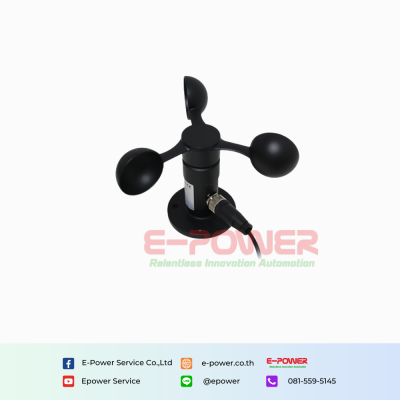

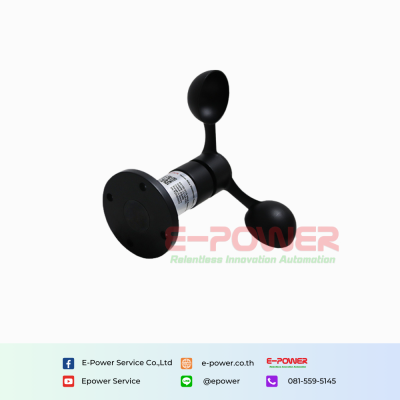

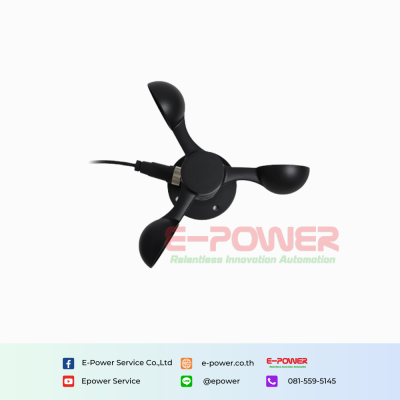

The RK100-01G wind speed sensor adopts aluminum alloy precision die casting technology, with small dimensional tolerances, high surface accuracy, built-in high-performance circuits, high strength, strong weather resistance, strong corrosion resistance, and good waterproof performance. This sensor is widely used in places where wind speed needs to be measured, such as solar farm, meteorology, ships, docks, tower cranes, ports, agriculture, etc.
TECHNICAL SPECIFICATION
Technical Specifications| Item | Technical Specification | |
|---|---|---|
| Supply voltage | 12-24VDC | 5-24VDC |
| Output | RS485,4-20mA | Pulse(Pulse high level depends on the supply voltage) |
| Range | 0-30m/s 0-50m/s 0-60m/s | |
| Starting threshold | 0.2m/s | |
| Limit wind speed | 70m/s | |
| Accuracy | Âą(0.3+0.03V)m/s | |
| Resolution | 0.1m/s | |
| Response time | <1s | |
| Power consumption | 20mA@12V | |
| Ingress protection | IP65 | |
| Operating temperature | -30~+70 | |
| Main material | Aluminum alloy | |
| Connector | M12 waterproof connector | |
| Finish | Polyester powder electrostatic spraying(black) | |
| Weight(unpacked) | 410g(Excluding wires) | |
| Storage condition | 10-60@20%-90%RH | |
