PRODUCT DESCRIPTION

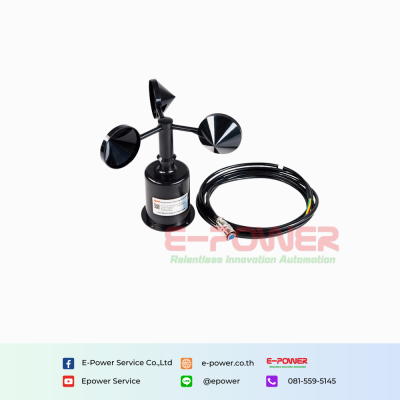

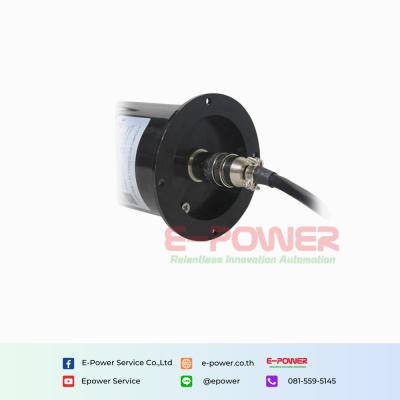

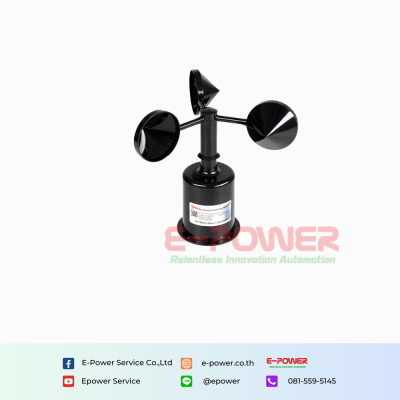

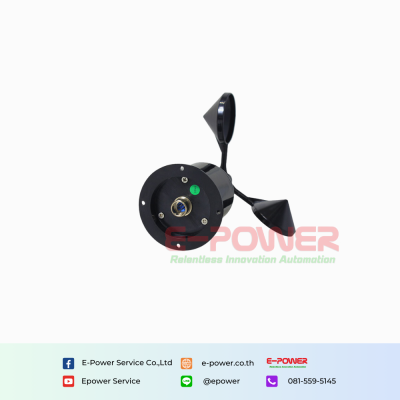

The RK100-02 Customized Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. It can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.
SPECIFICATIONS
| Output | Pulses(NPN) | 4-20mA | 0-5V | RS485 |
| Supply Voltage | 5V,12V-24V | 5V,12V-24V | 5V,12V-24V | 5V,12V-24V |
| Load Capacity | >1kÎĐ,default hi gh level:5V | <500ÎĐ(typ 250ÎĐ) | >1kÎĐ | |
| Range | 0-45m/s | 0-45m/s | 0-45m/s | 0-45m/s |
| Accuracy | Âą3% | |||
| Resolution | 0.1m/s | |||
| Starting Threshold | <0.5m/s | |||
| Limit w ind speed | 50m/s | |||
| Ingress Protection | IP65 | |||
| Operating Temperature | -40°C~ +50°C | |||
| Cable Grade | Nominal voltage:300V ,Temperature grade:80°C | |||
| Weight(unpacked) | 170g | |||
| Dimension | Cup rotor:Ãļ179mm,Height:160mm | |||
| Main material | Carbon fiber | |||
| Storage Condition | 10°C-50°C@20%-90%RH | |||
